Quarter Wavelength Loudspeaker Design Gallery

Shown below are some pictures of quarter wavelength loudspeaker designs that people have built. Some of these projects are direct copies of my designs while others are original designs generated using my MathCad worksheets. Under each picture is the builder's name and an e-mail link so you can ask questions or provide some feedback. If you have also built a quarter wavelength loudspeaker design based on my MathCad worksheets, please feel free to send me a picture for inclusion in this gallery.


The Cornetta ML TL Using a Scan Speak 18W/8531G00 Woofer and a Morel TM4055-8 Dual-Dome Mid-Tweeter

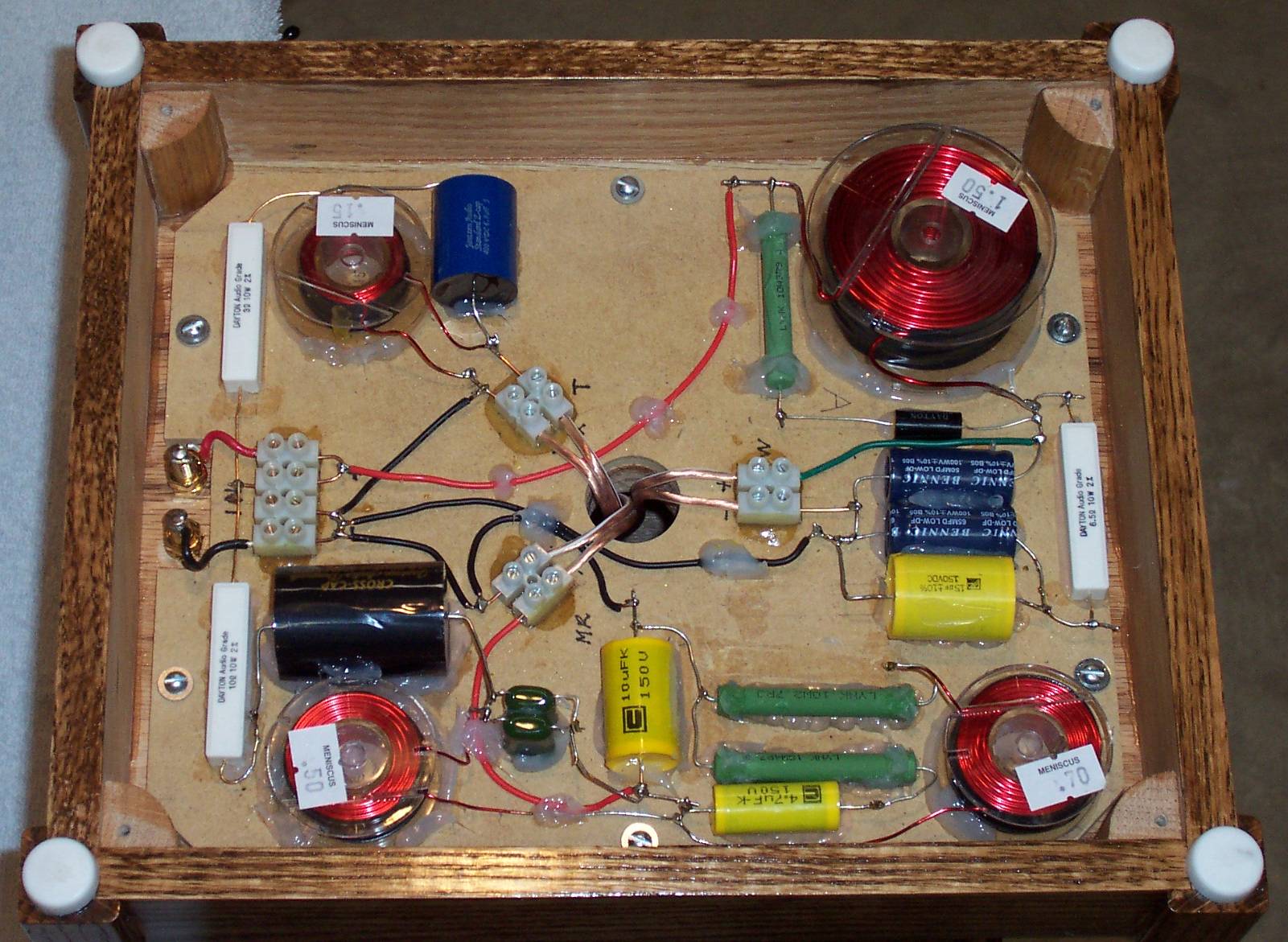

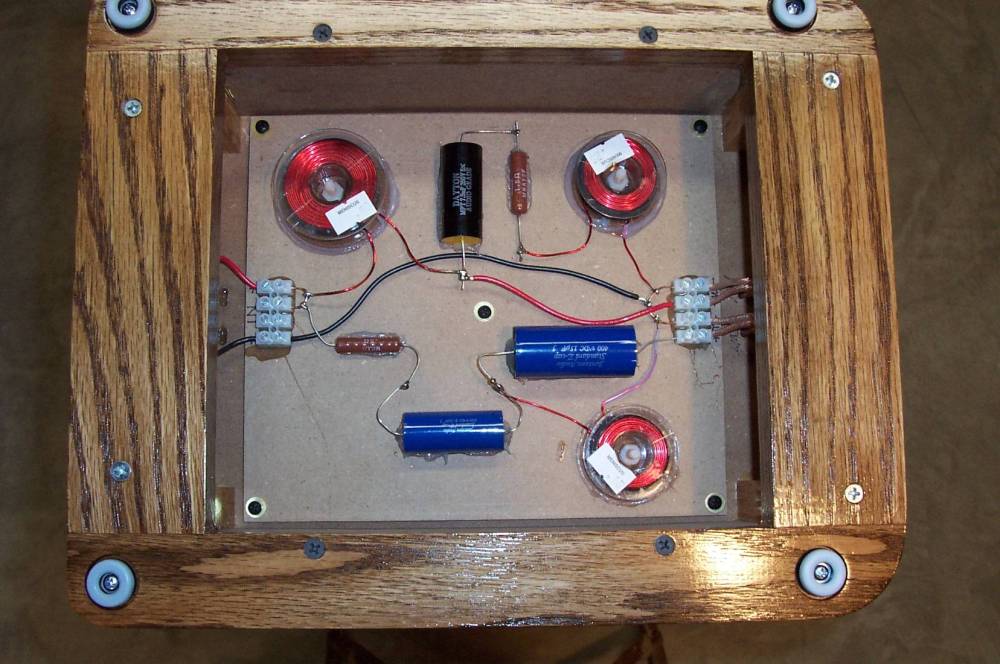

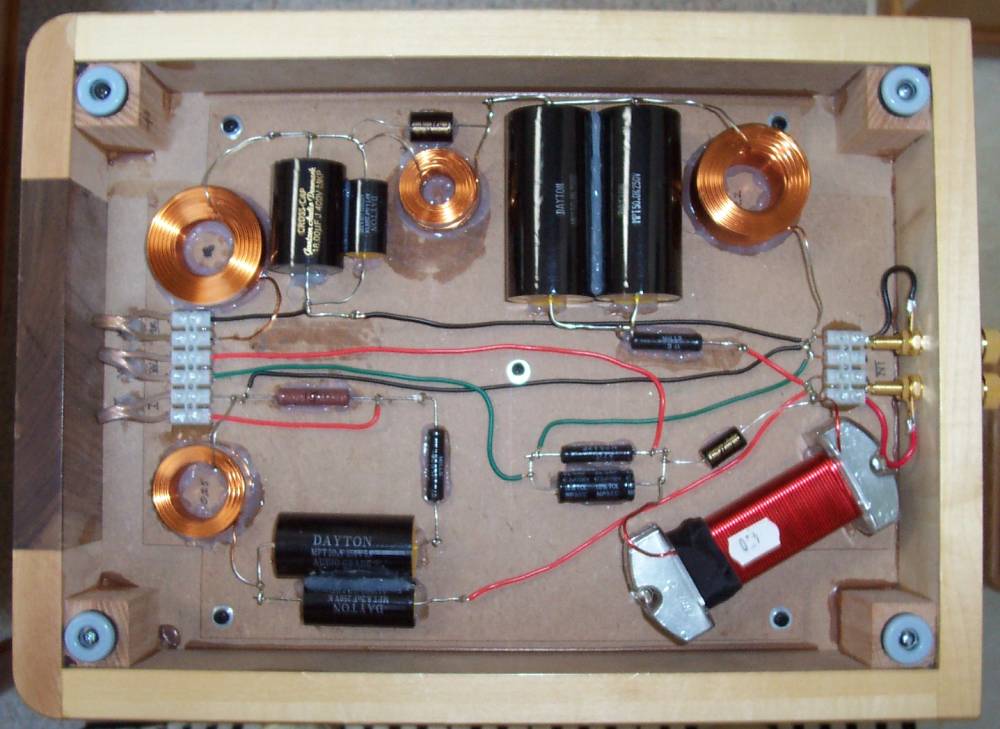

The Crossover is Built into the Base

Built by Paul Kittinger

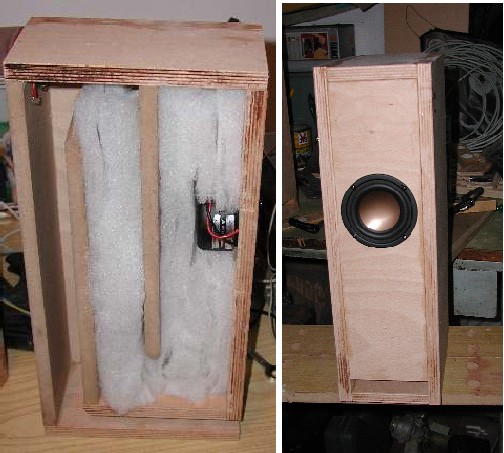

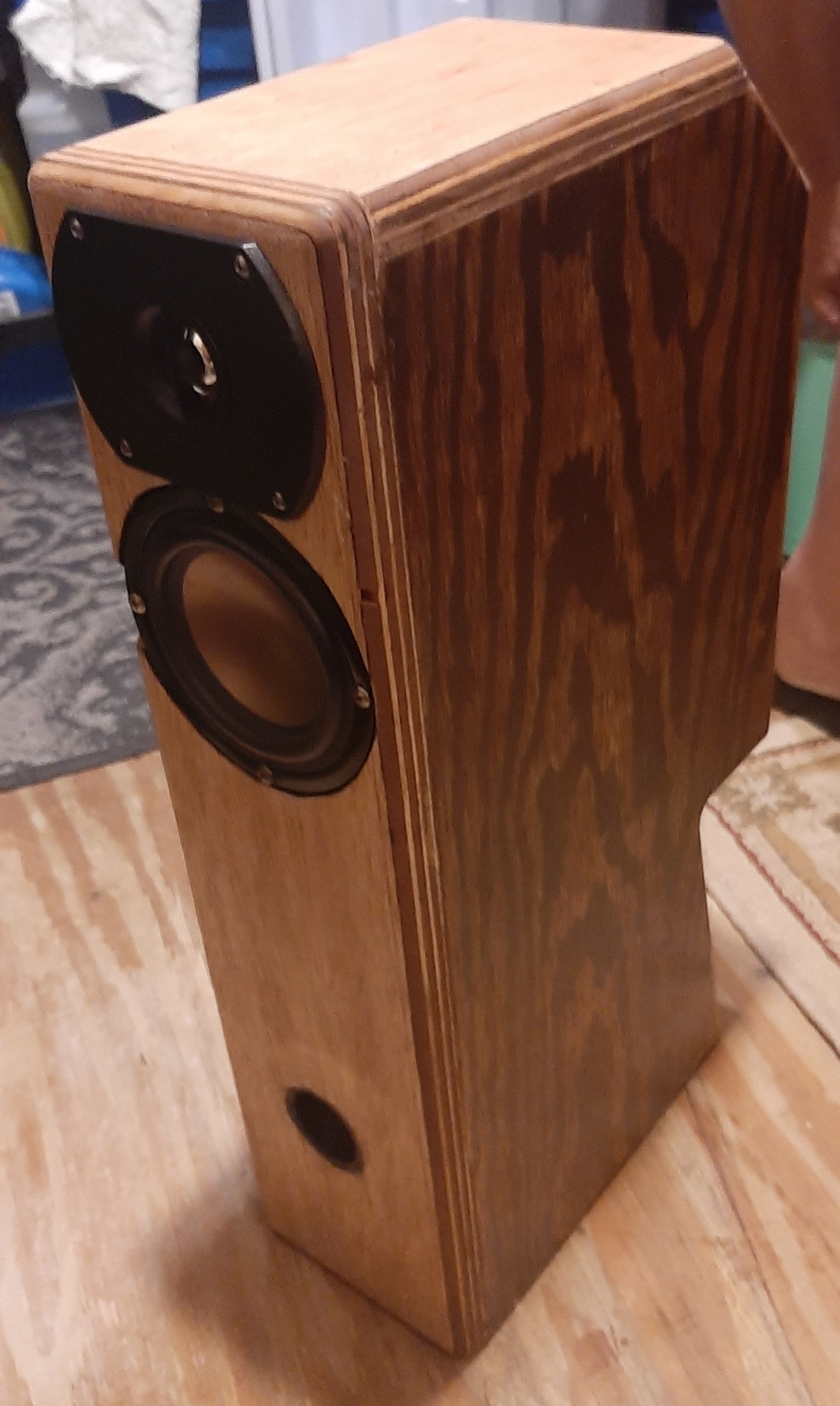

An ML TL Design using a HiVi B4N Woofer and Dynalab V22-DR-4 Tweeter


Built by Kirk Snodderly


An ML TL Design using a Peerless SDS-160F25PR01-08 Woofer and DX20 Tweeter


Built by Vincent Corpuz

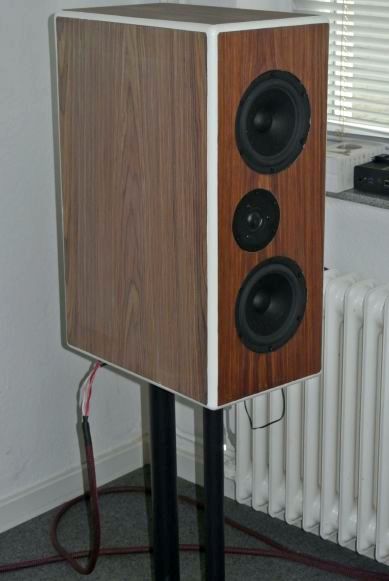

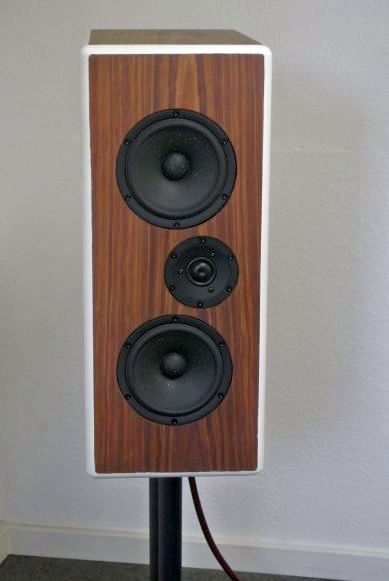

A Satori MTM Bass Reflex Speaker System (Satori MW16P and TW29R)



Built by Rainer Pache

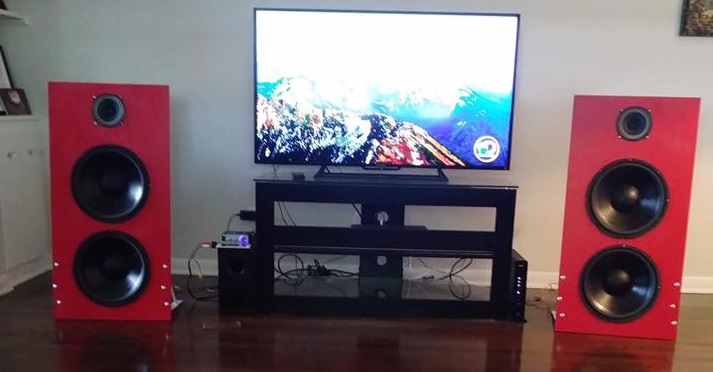

An OB Design using GRS 12PF-8 12" Woofers and a Visaton FR13 Full Range Driver


Built by Vincent Corpuz

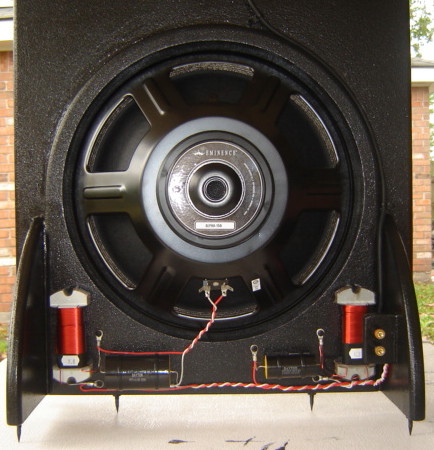

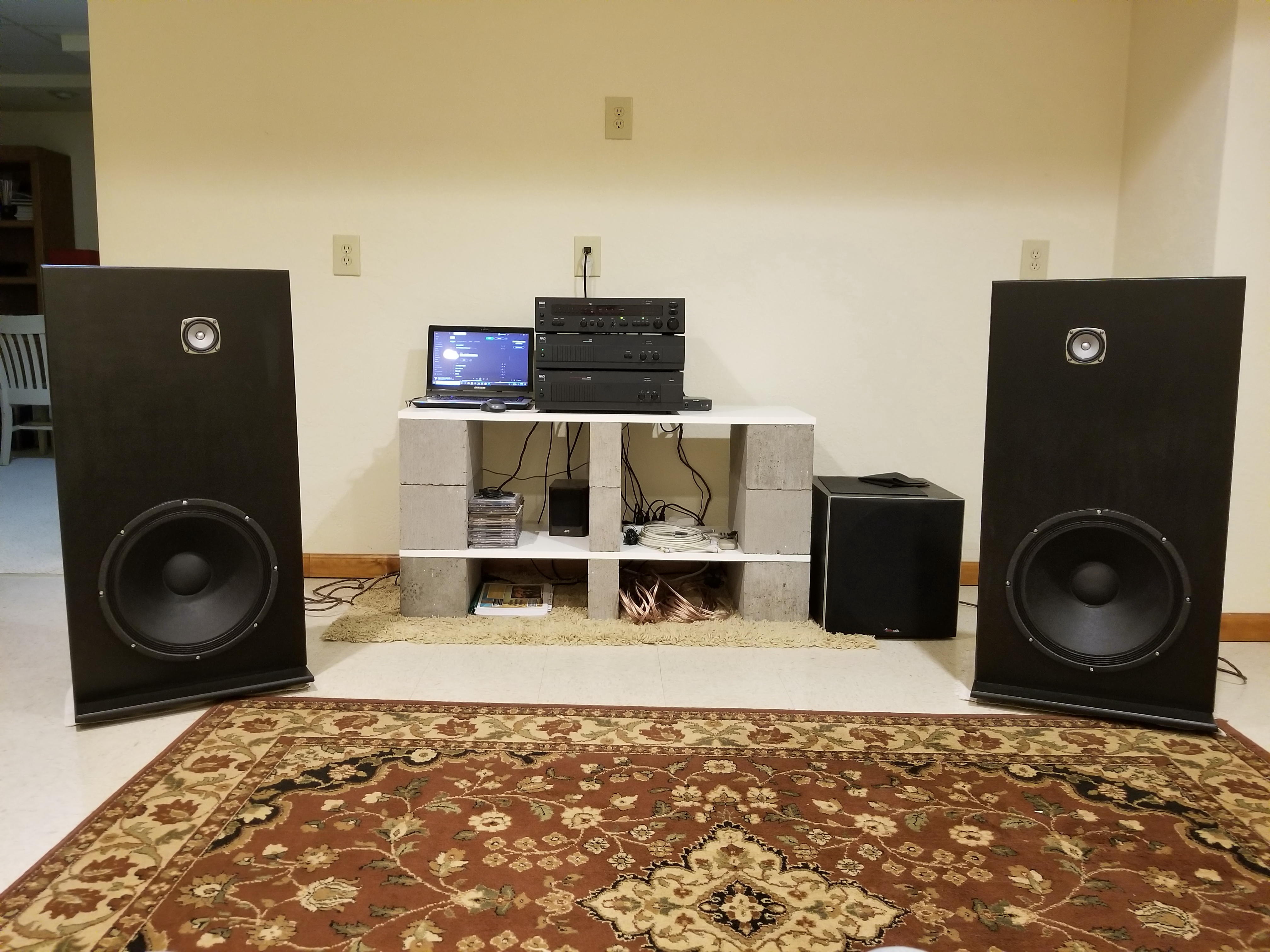

An OB Design using an Eminence Alpha 15A Woofer and a Fostex FF85WK Full Range Driver


Built by Jay Kunstman

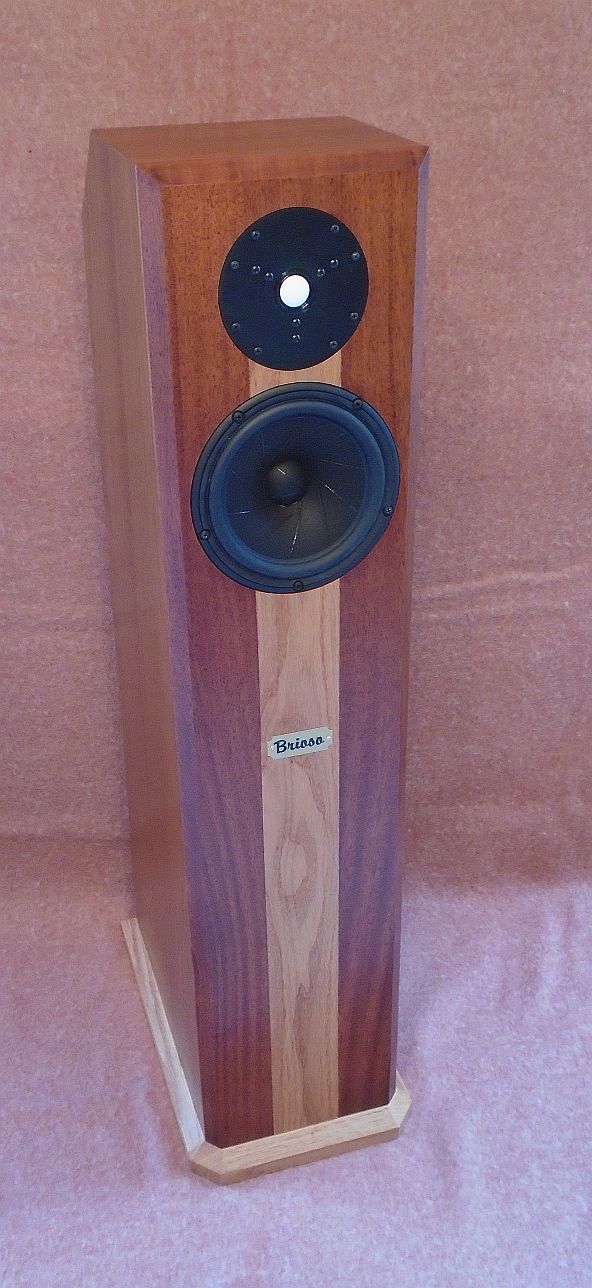

The Brioso ML TL Using a Scan Speak 18W/8531G00 Woofer and a Transducer Lab N26CR2-A Tweeter


Built by Paul Kittinger

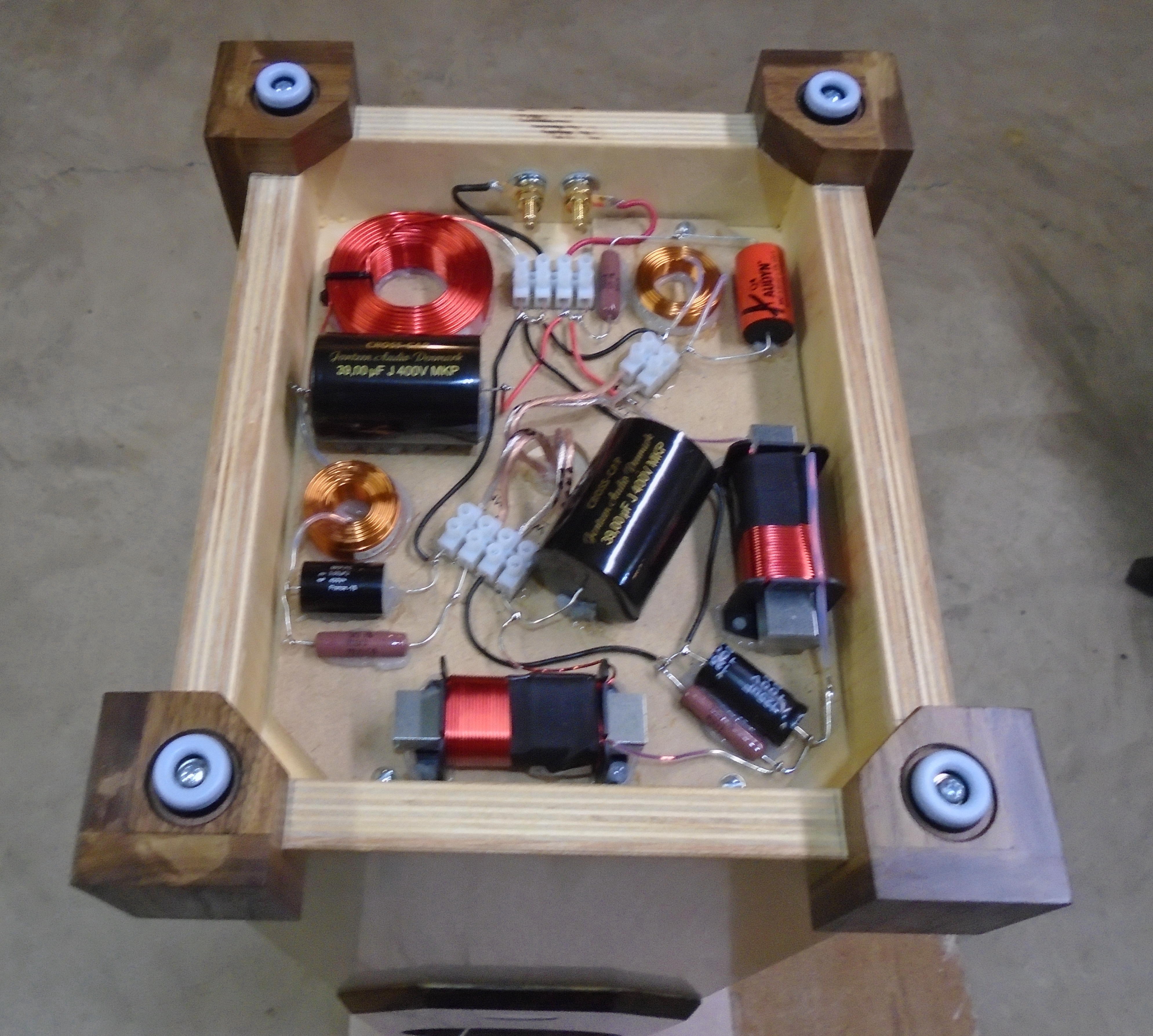

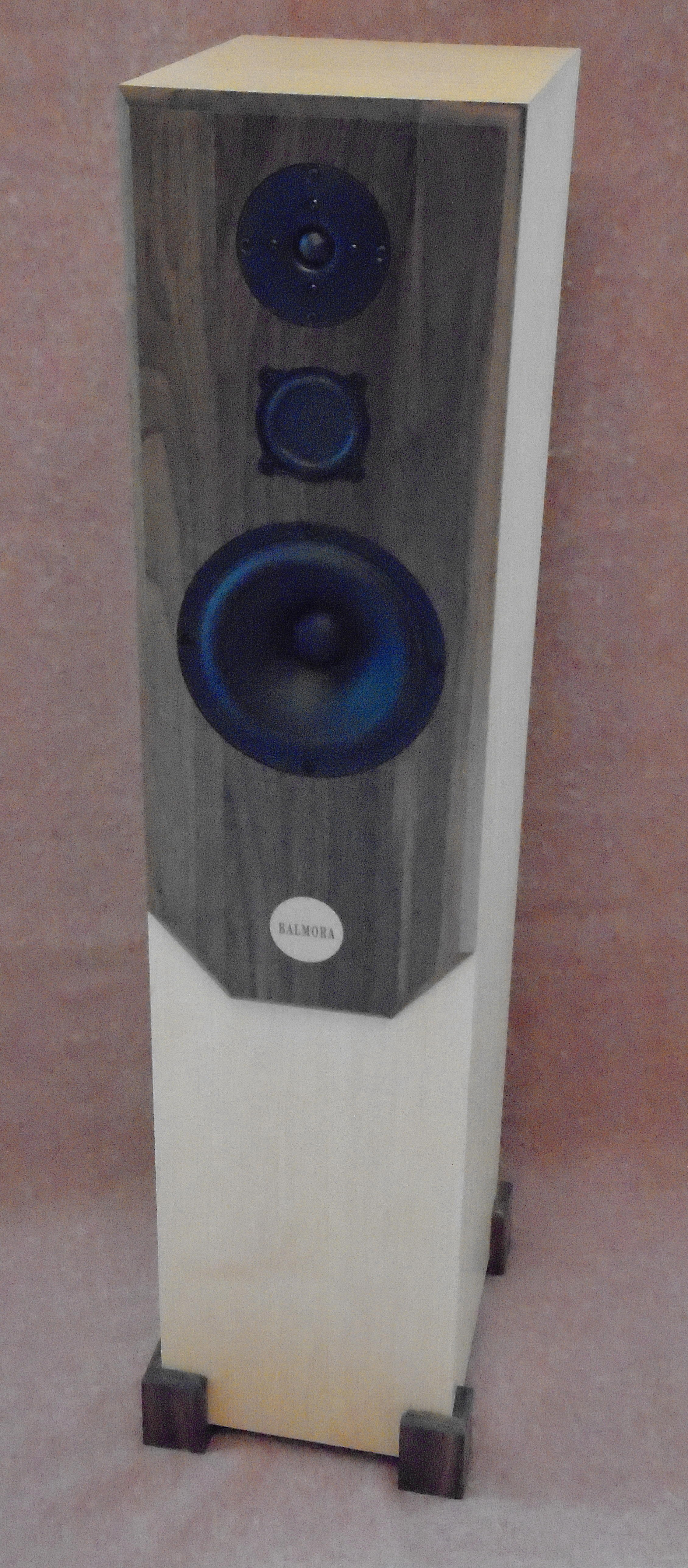

The Balmora ML TL Using a SB Acoustics SB17NRX35-8 Woofer, a Tectonic's TEBM46C20N-4B BMR, and an SB Acoustics SB19ST-C000-4 Tweeter


The Crossover is Built into the Base

Built by Paul Kittinger

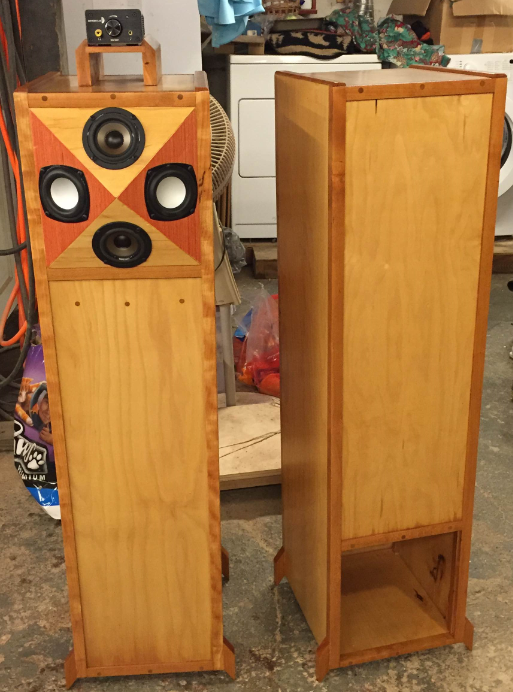

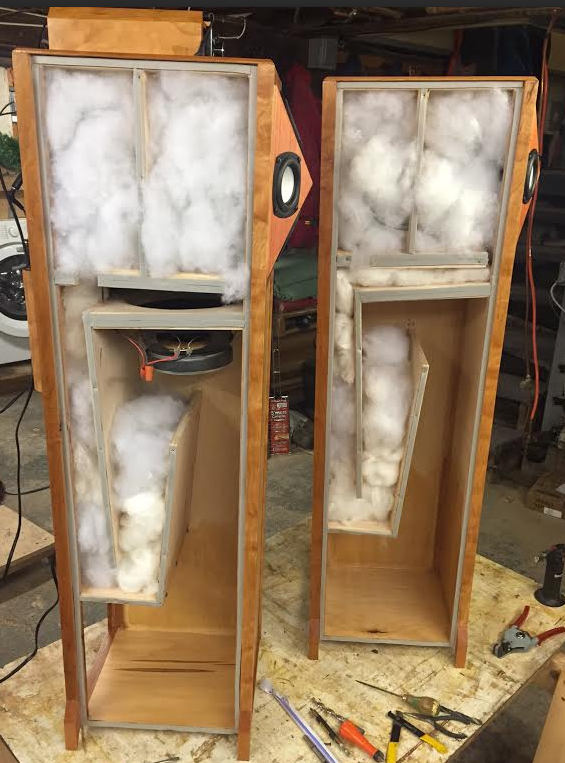

Compact Back Loaded Horn Design

Built by Mike MacIsaac

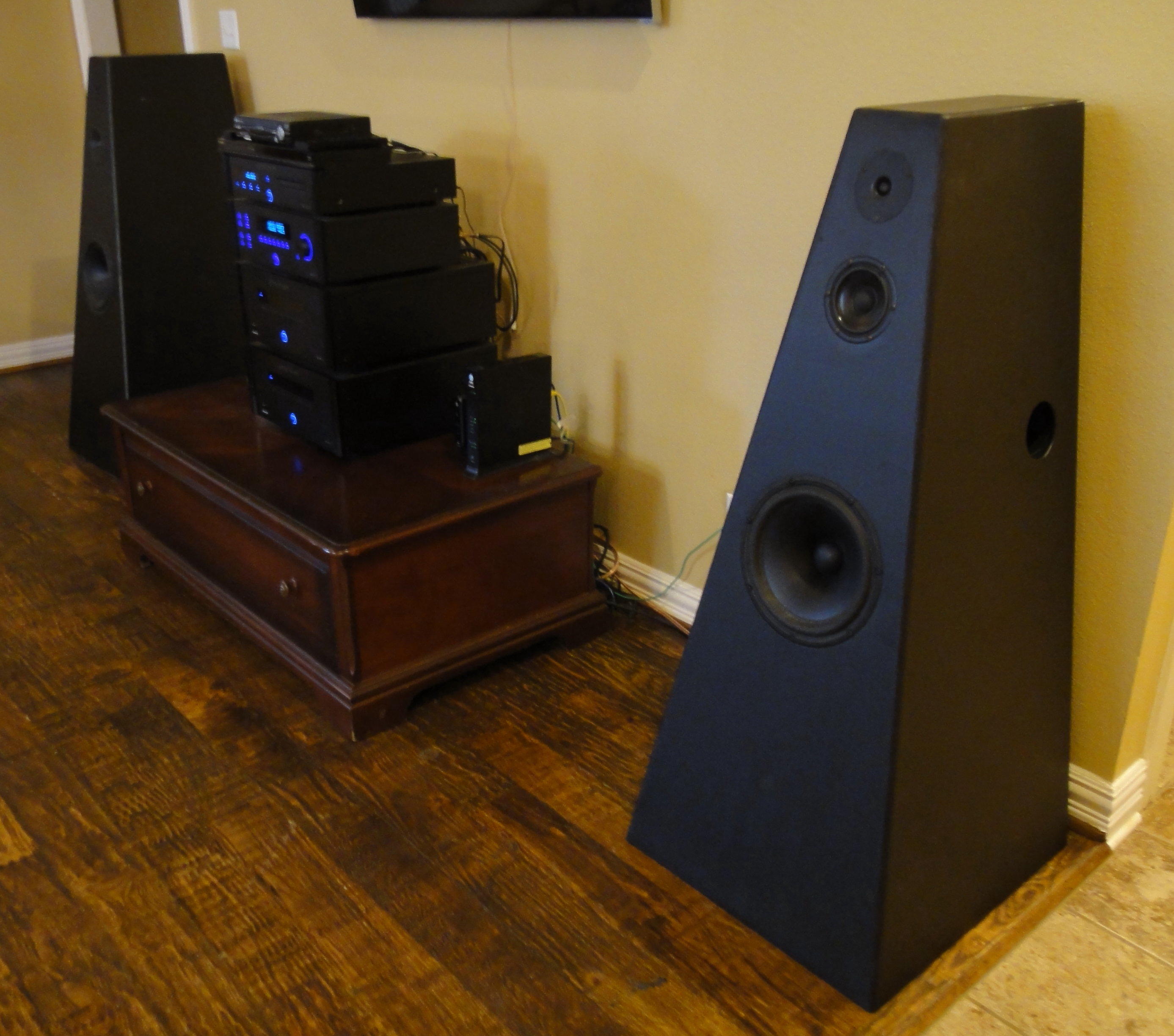

ML TL Using a Scan Speak 26W/8861T00 Woofer, a SEAS CA-12H1152CR midrange, and an Hiquphon OWIIx-92-FS Tweeter

Built by Michael Bacik

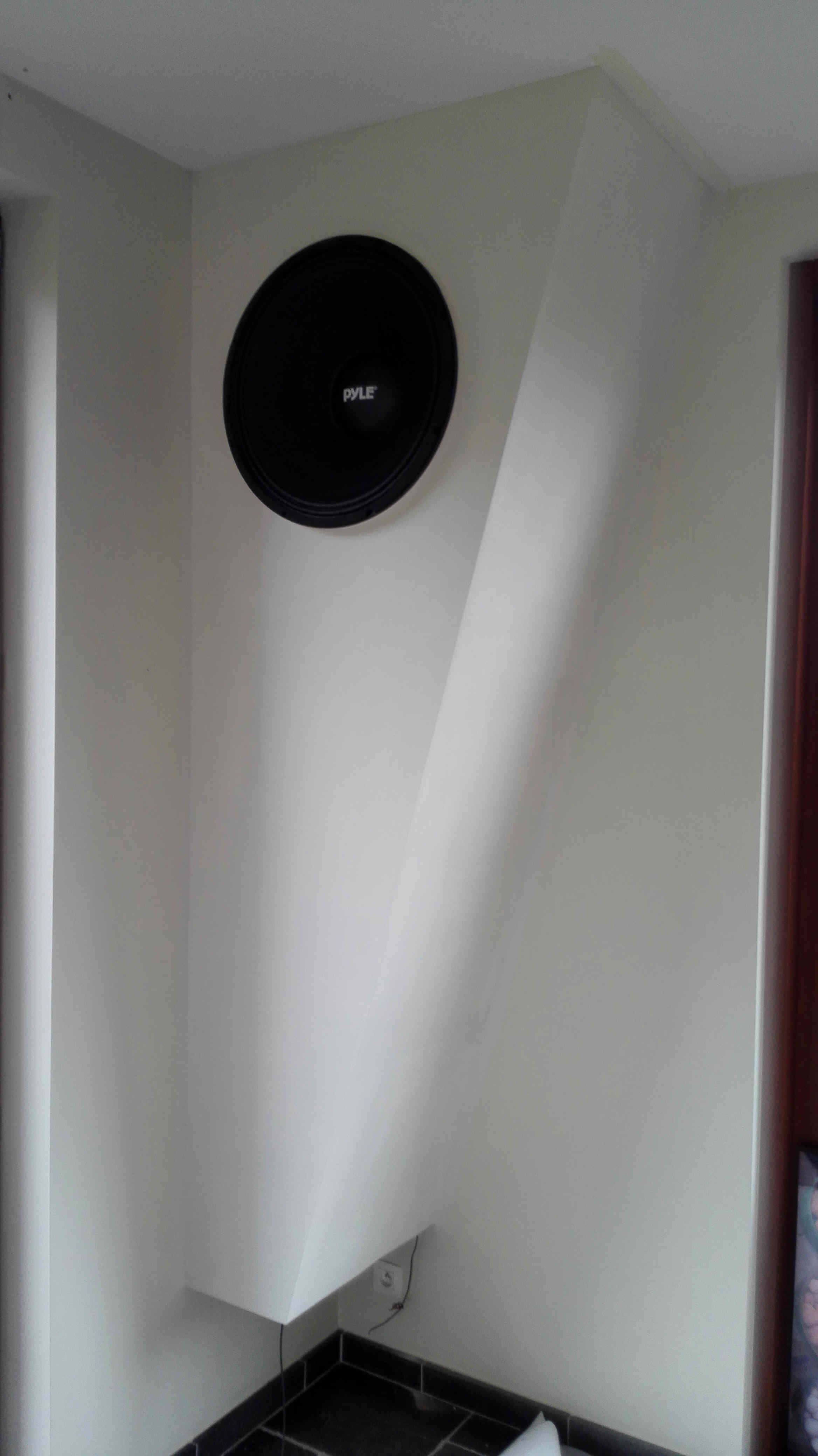

Integral Corner TL Using a Pyle Audio PDW2125 Woofer

Built by Mathieu Bronchart

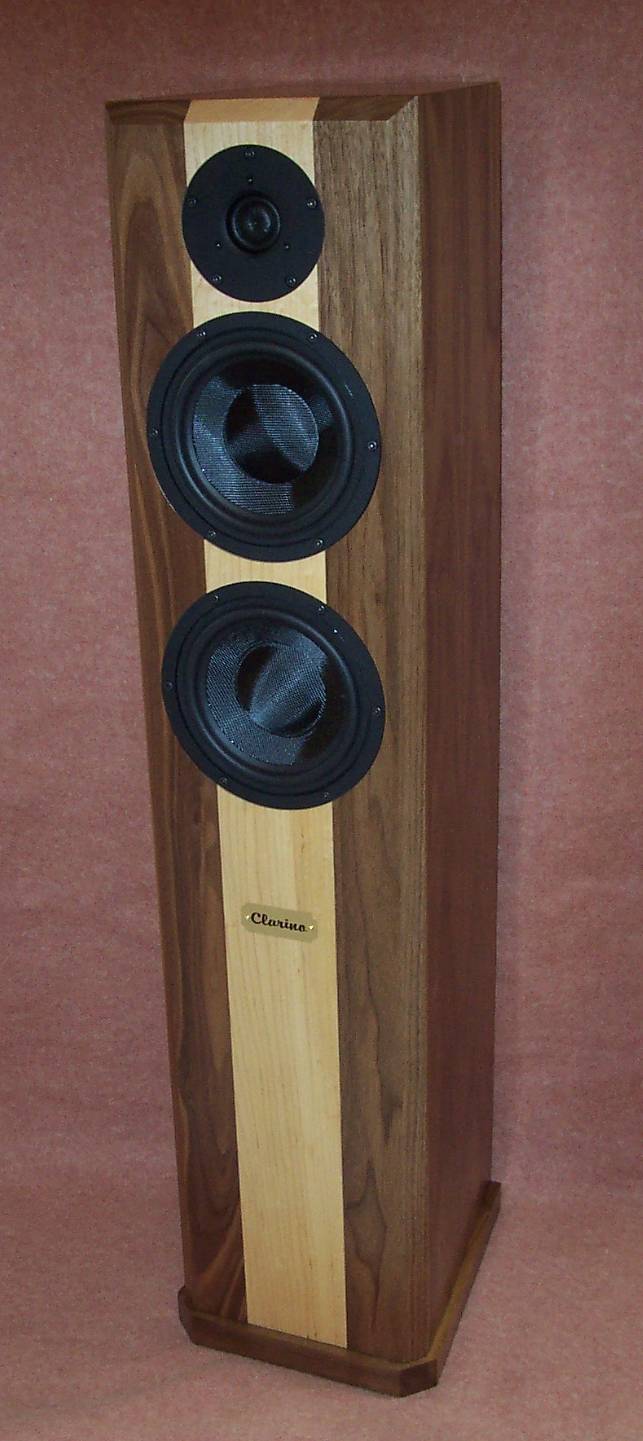

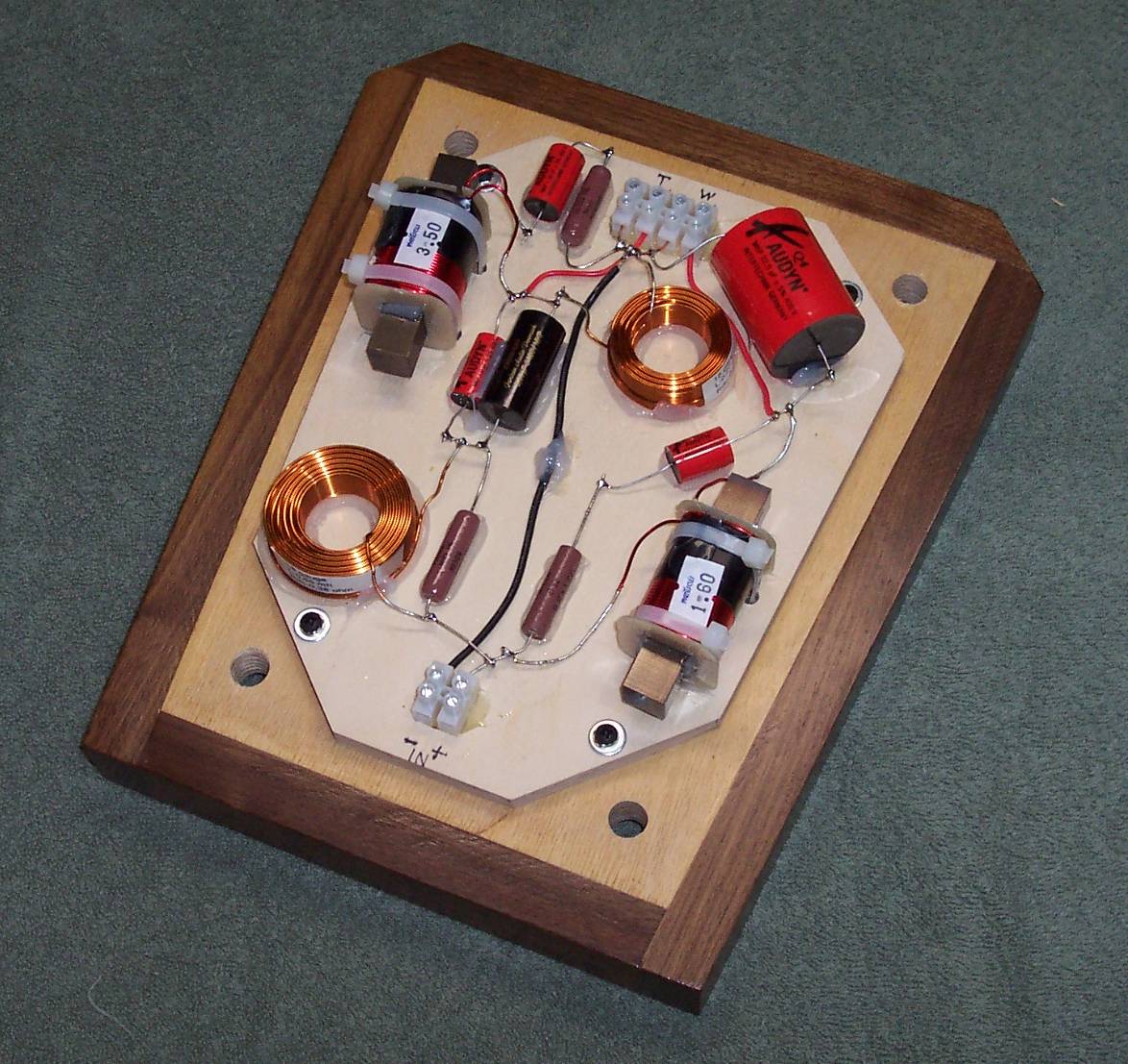

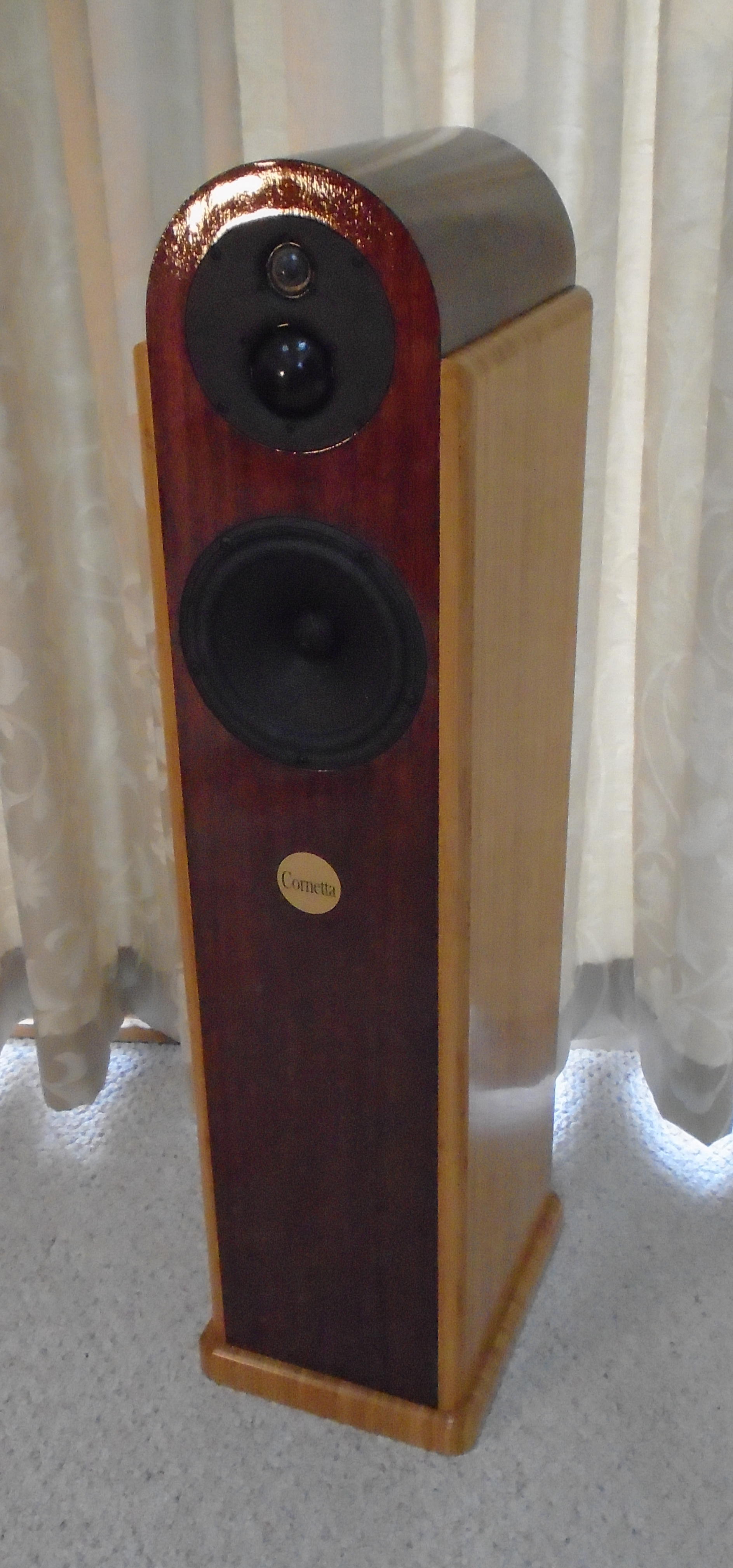

The Carino ML TL Using a Dayton Esoteric ES180Ti-8 Woofer and an Esoteric ES25Nd-4 Tweeter


The Crossover is Built into the Base

Built by Paul Kittinger

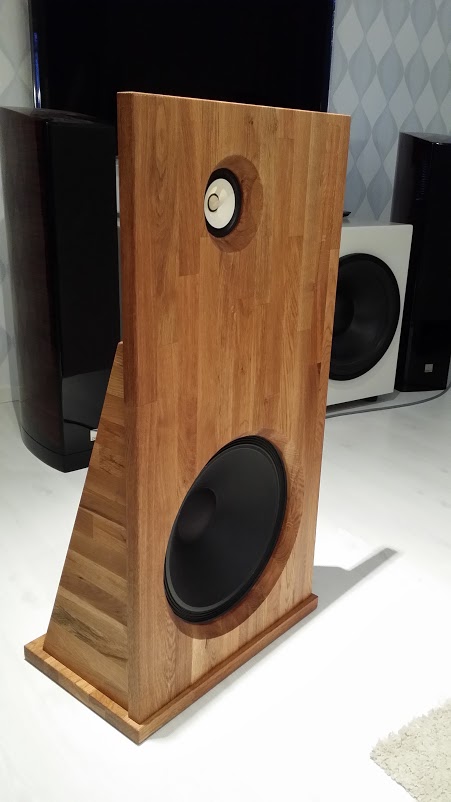

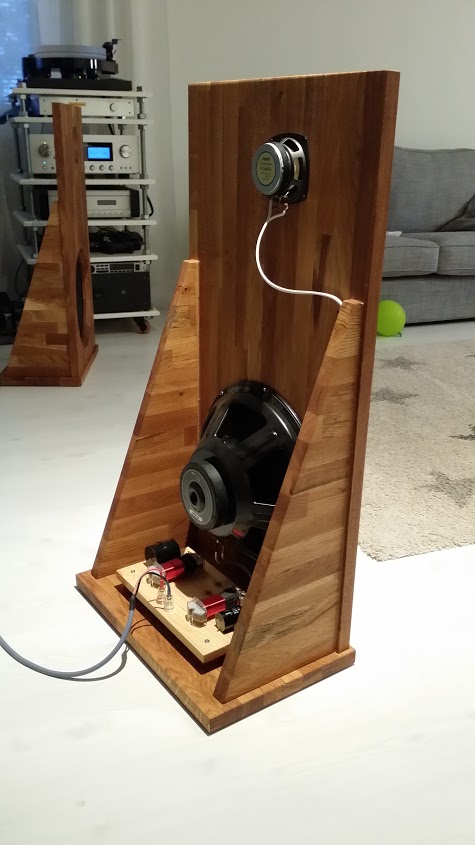

Fostex FE-103En and Eminence Alpha 15A on an Open Baffle

Built by Marko Tammilehto


Larger Version of a Frugal Horn Using a Fostex FF225Wk Full Range Driver and an Eminence APT-80 Tweeter

Built by Jim Shearer


The Monoliths - Fostex FE163En-S Back Loaded Horn Speakers

Built by Steve Duffy

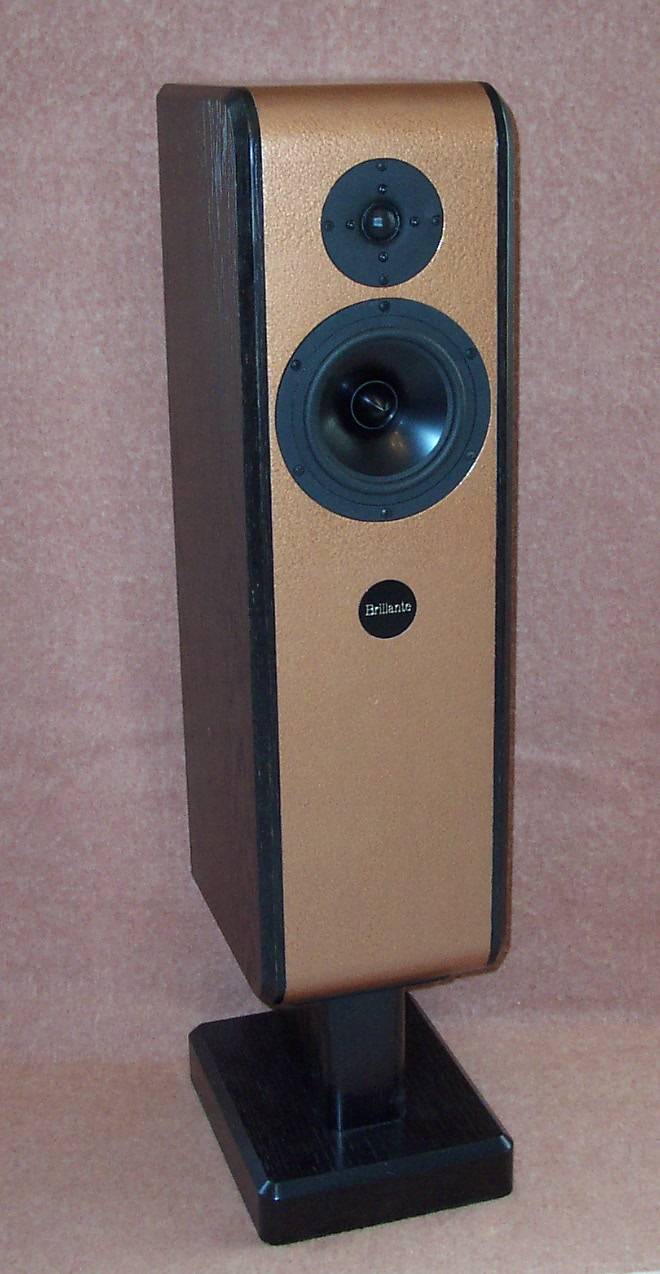

The Brillante ML TL Using a Dayton RS180-4 Woofer and a SB Acoustics SB265TAC Tweeter

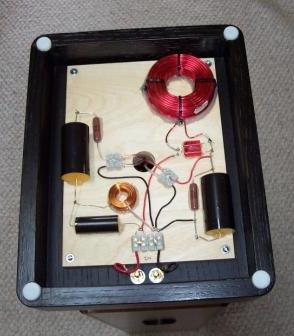

The Crossover is Built into the Base

Built by Paul Kittinger

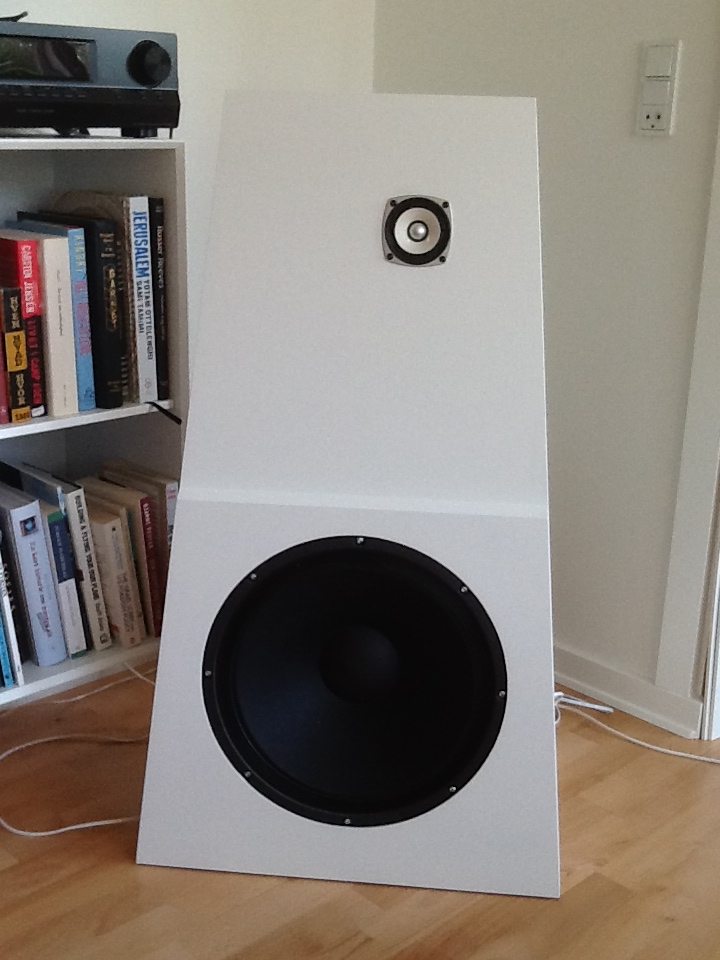

Fostex FF85K and Eminence Alpha 15A on an Open Baffle

Built by David Joelsen

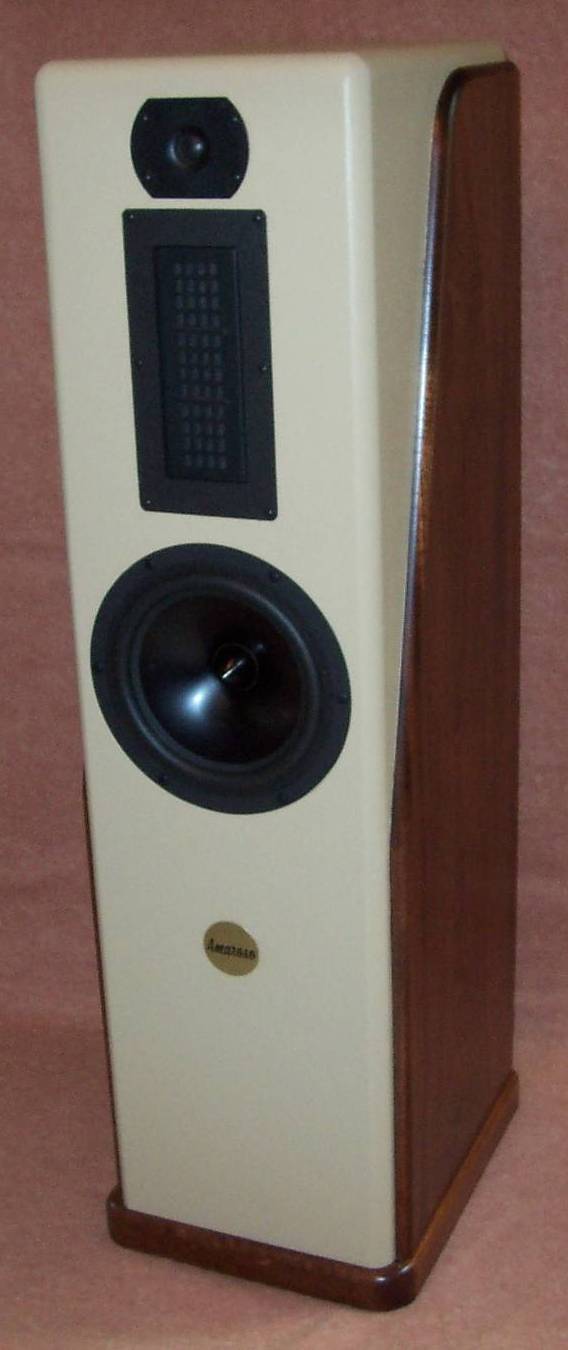

The Amarosos ML TL Using a Dayton RS225-8 Woofer, a BG NEO8 Midrange, and a Hiquphon OW2 Tweeter

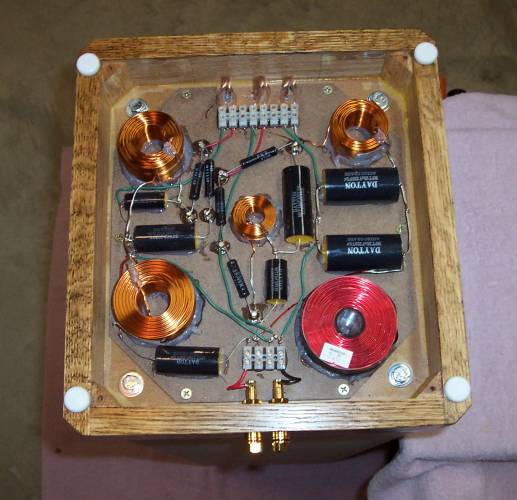

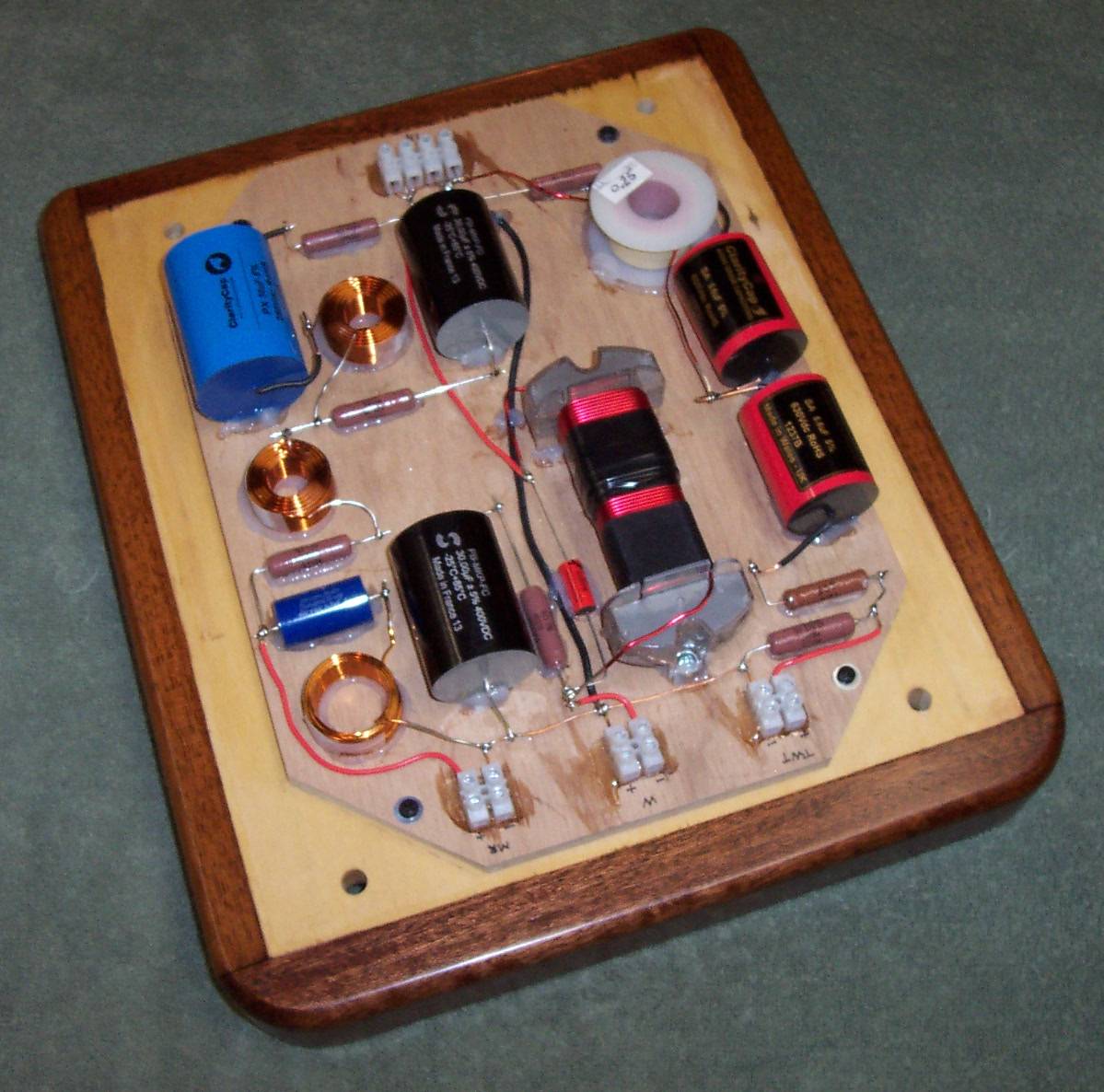

The Crossover is Built into the Base

Built by Paul Kittinger

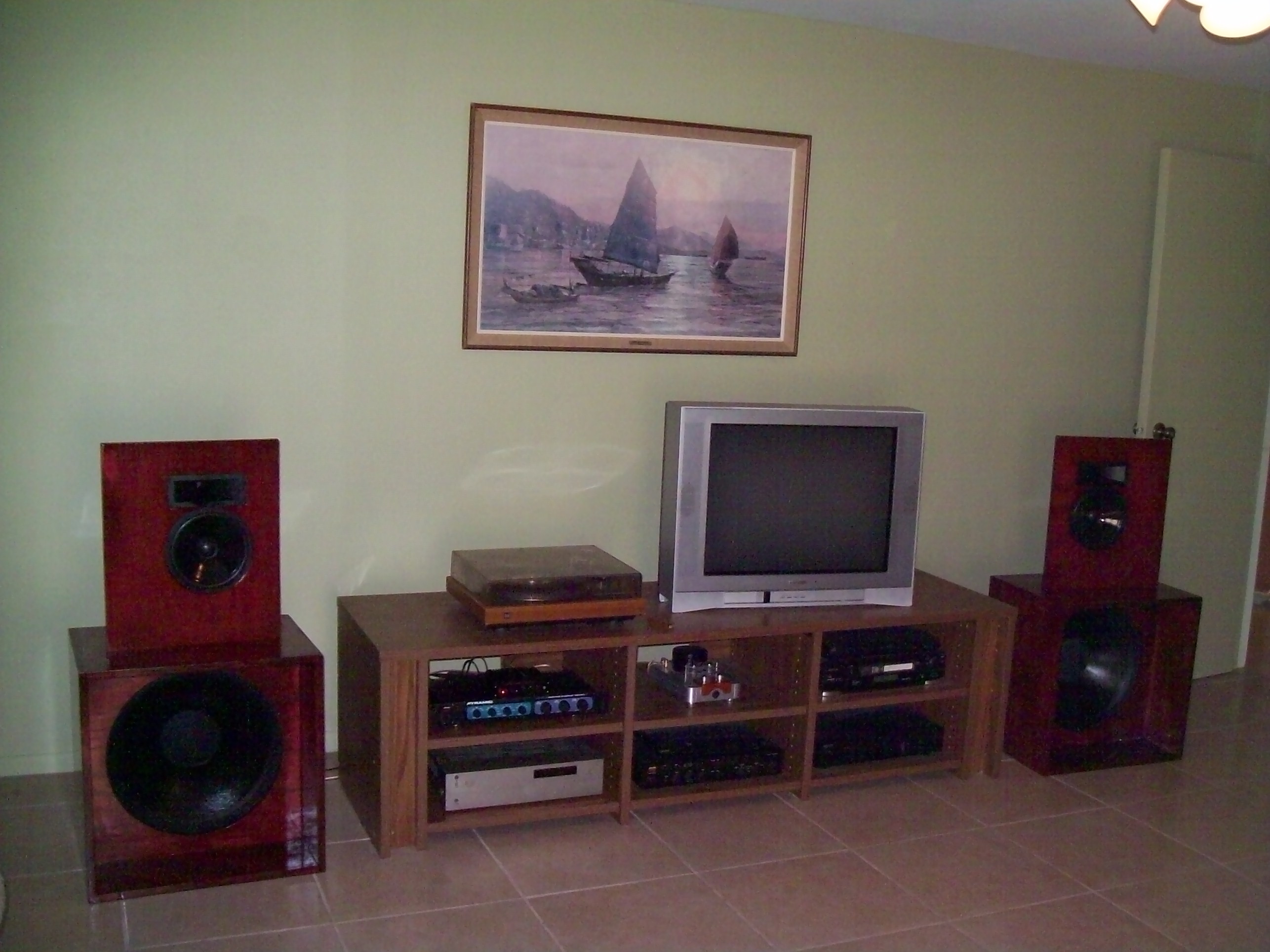

Peerless 8" Woofer and Foster Horn Driver on an Open Baffle w/ Goldwood GW-1858 H Frame Woofer

Built by James Householder


Open Baffle Using an AER Full Range Driver and an AE Dipole 15 Woofer

Built by David Zicho


ML TL Using a Dayton RS28F Tweeter and Dayton RS225-8 Woofer

Built by Paul Kittinger

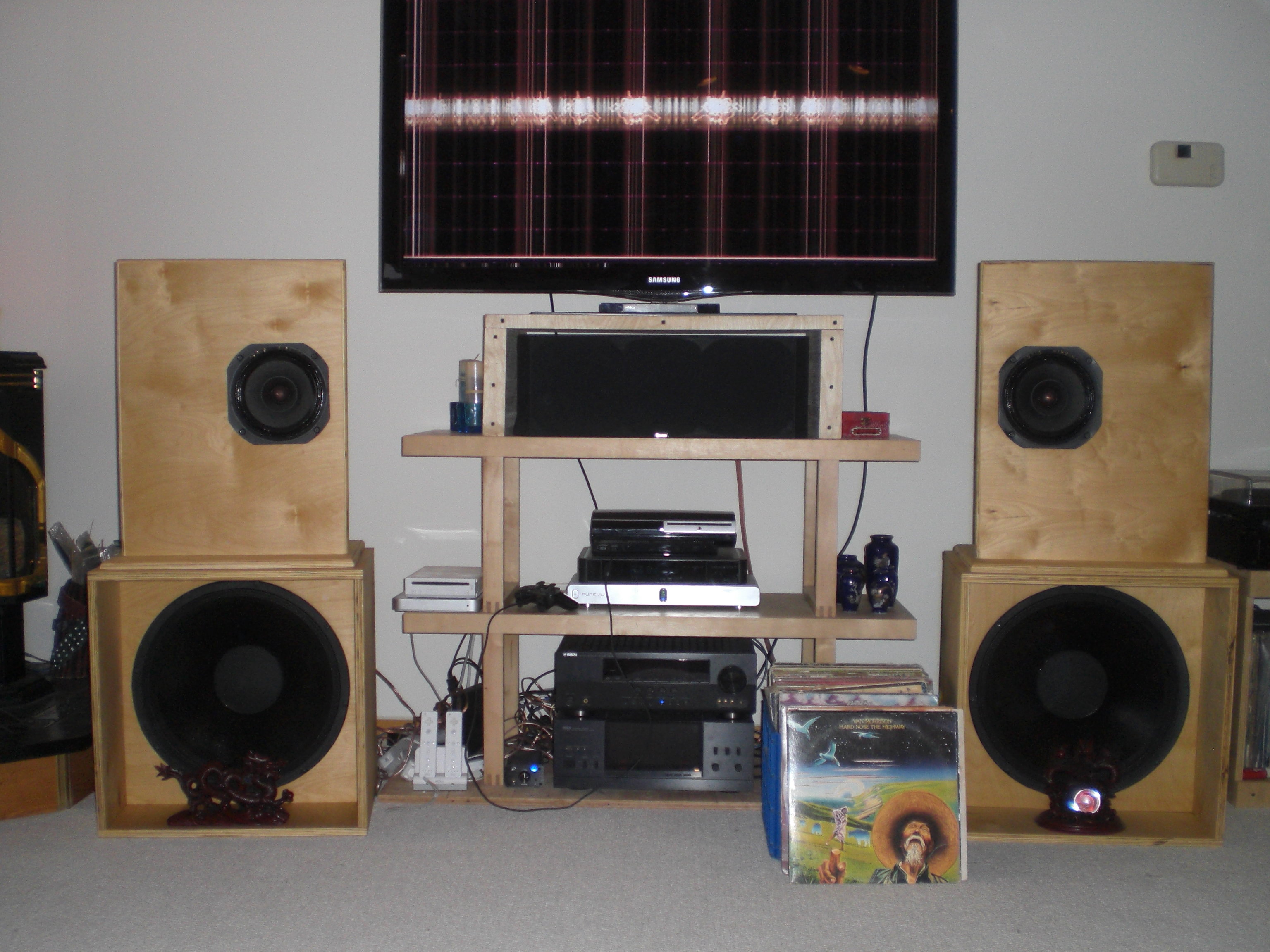

Audio Nirvana 8" Full Range Driver Open Baffle w/ Goldwood GW-1858 H Frame Woofer

Built by Jon Hoskins

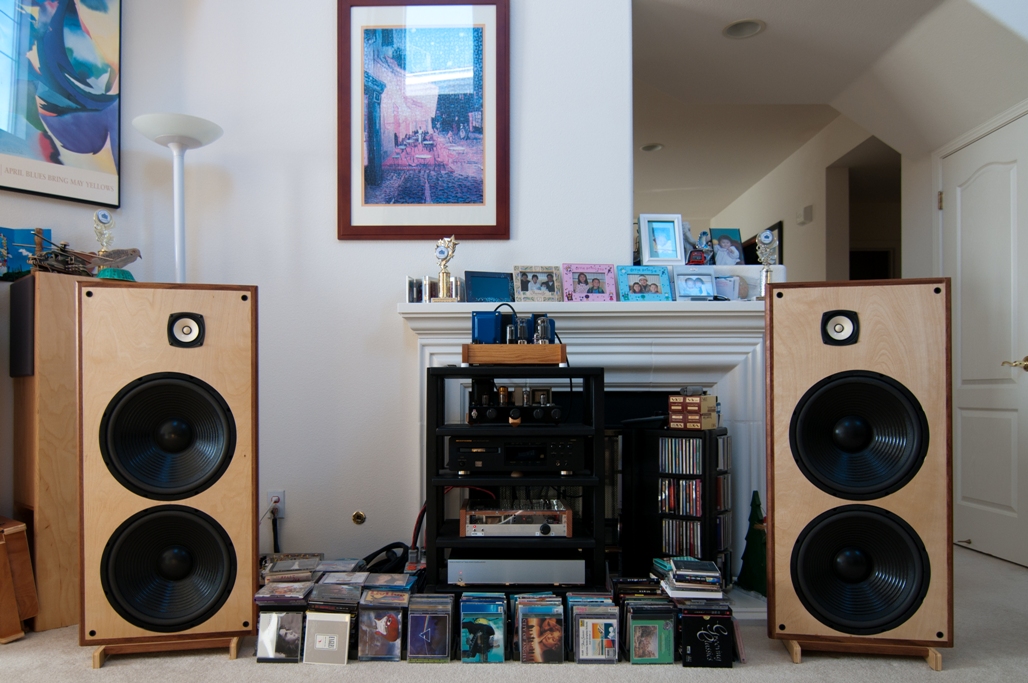

Open Baffle Speakers Using a Fostex FE-103En Full Range Driver and a Pair of Goldwood 215/40/8 Woofers

Built by Sidney Ma

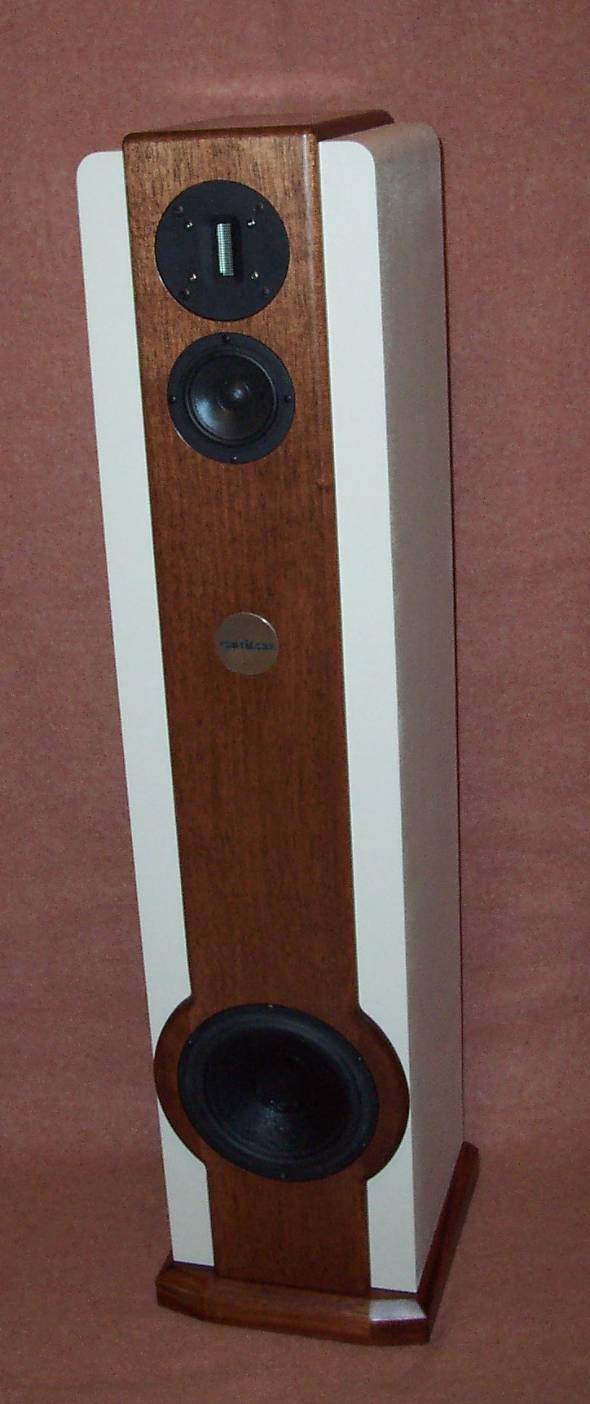

Cavatina ML TL Uaing a Fountek NeoCD1.0 Ribbon Tweeter, ScanSpeak 10F Midrange, and Usher 8945A Woofer

Built by Paul Kittinger

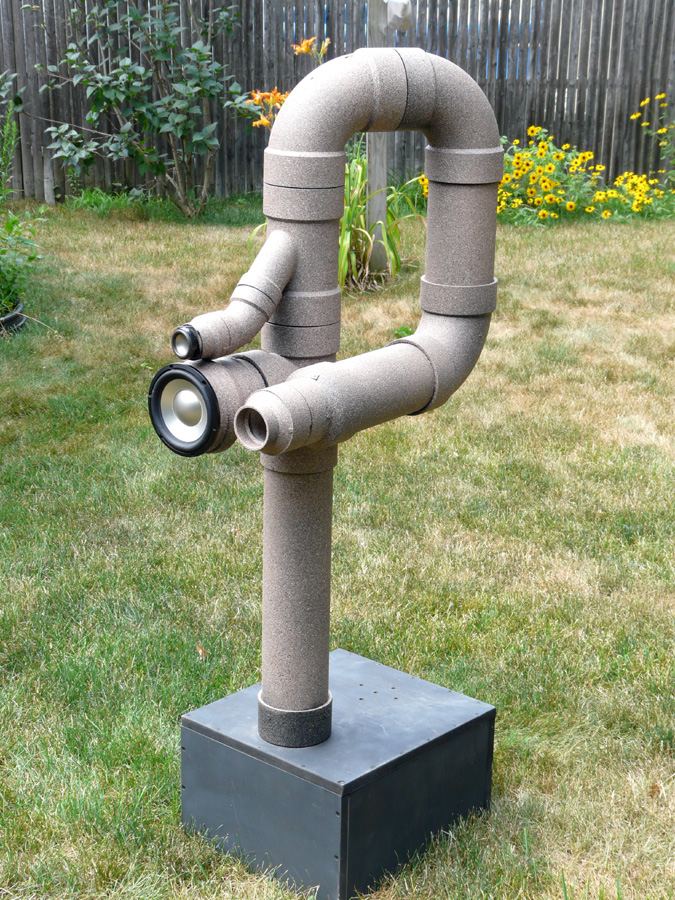

Poor Plumber's Pluto : SEAS H1480 Woofer and AURA NSW2-326-8A Tweeter

Built by Carl Richard

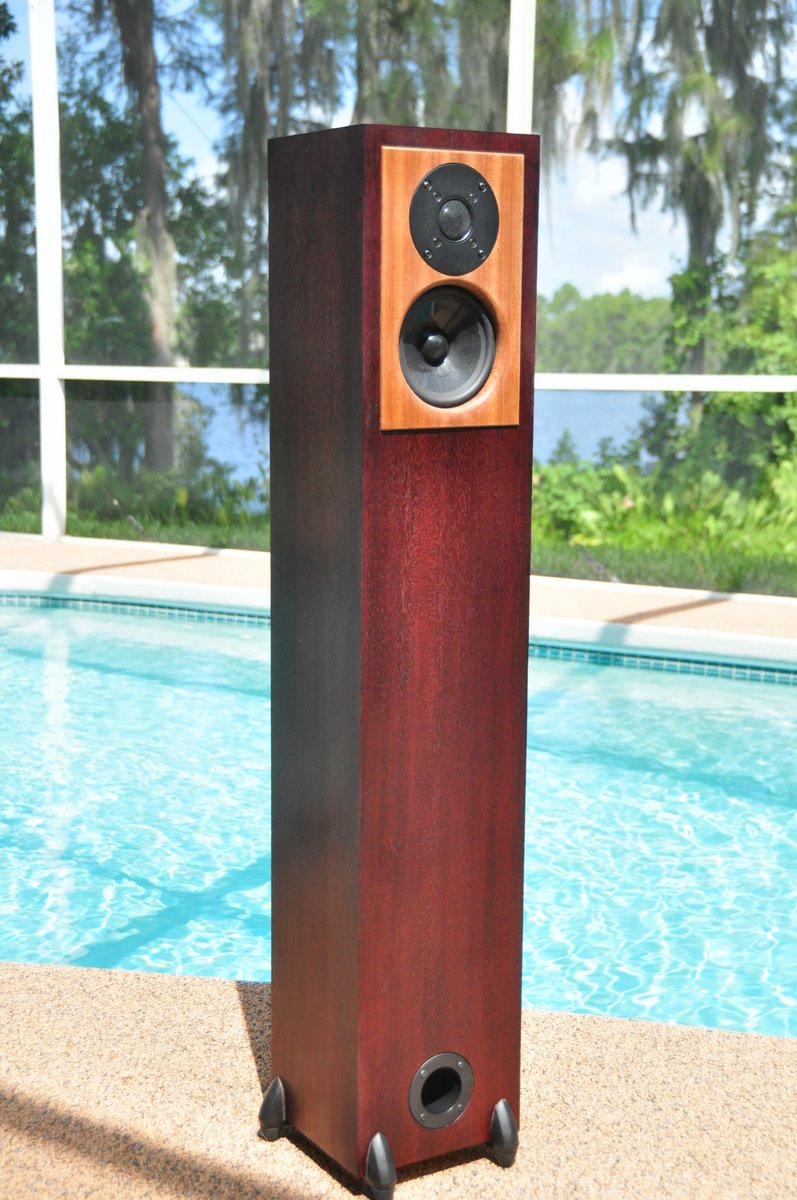

Continuum ML TL : Aurum Cantus AC130/F1 Woofer and Dayton RS28A Tweeter

Built by Maynard Goff

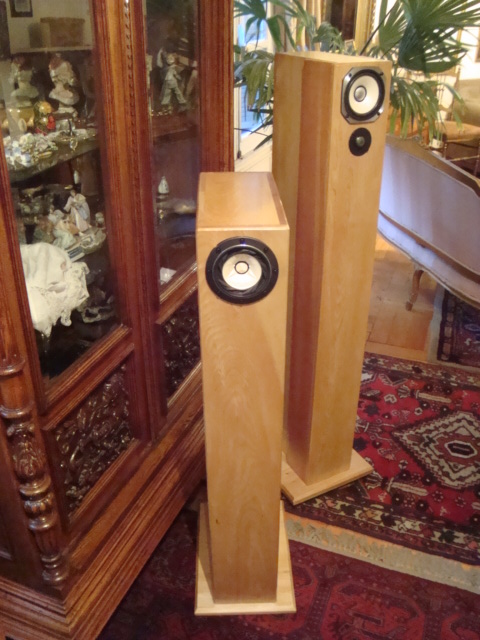

A Pair of TLs Using Fostex FE-108E Sigma and FX120 Full Range Drivers

Built by Daniel Advis

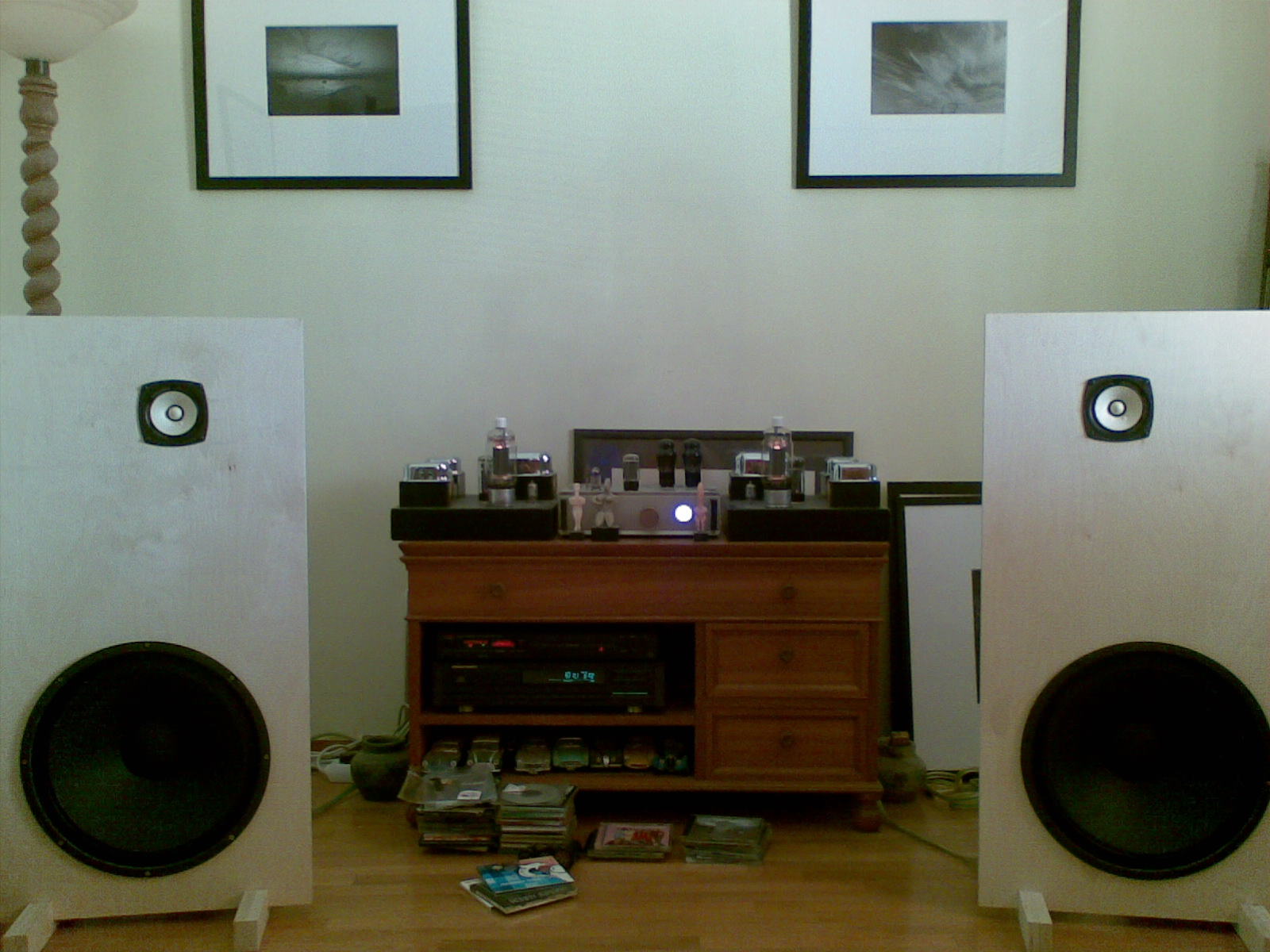

Fostex FE-103E Full Range Driver and an Eminence Alpha 15A Woofer Open Baffle Speaker

Built by Symeon Koligas

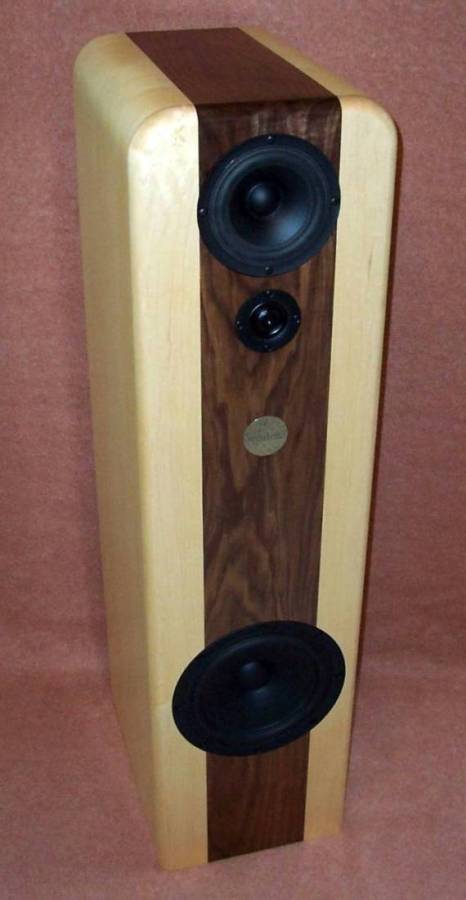

The Sonatello Speaker
A 58" Long 25:1 Tapered TL Using SB Acoutics Drivers : 8-inch woofer (SB23NRXS45-8), 5-inch coated paper-cone midrange (SB15NRX30-8), and 1-inch dimple dome tweeter with neodymium magnet (SB29RDCN-C000-4)


The Crossover is Built into the Base

Built by Paul Kittinger


Fostex FE-207E Full Range Driver in a ML TL Enclosure with a Rear Port and Variable BSC Filter

Built by Philippe Grandsire


Fostex FE-206E Full Range Driver in a ML TL Enclosure

Built by Erich Hennig

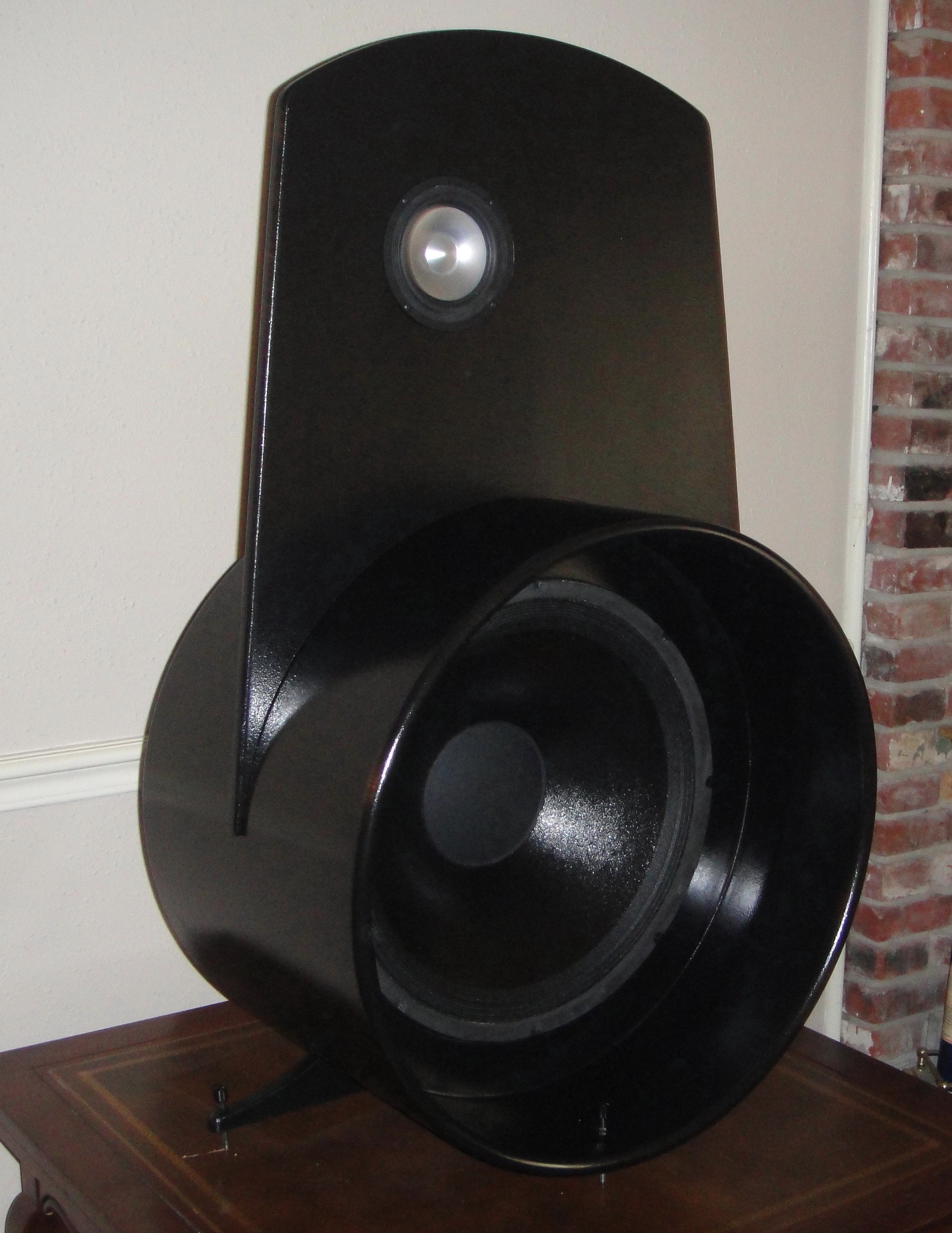

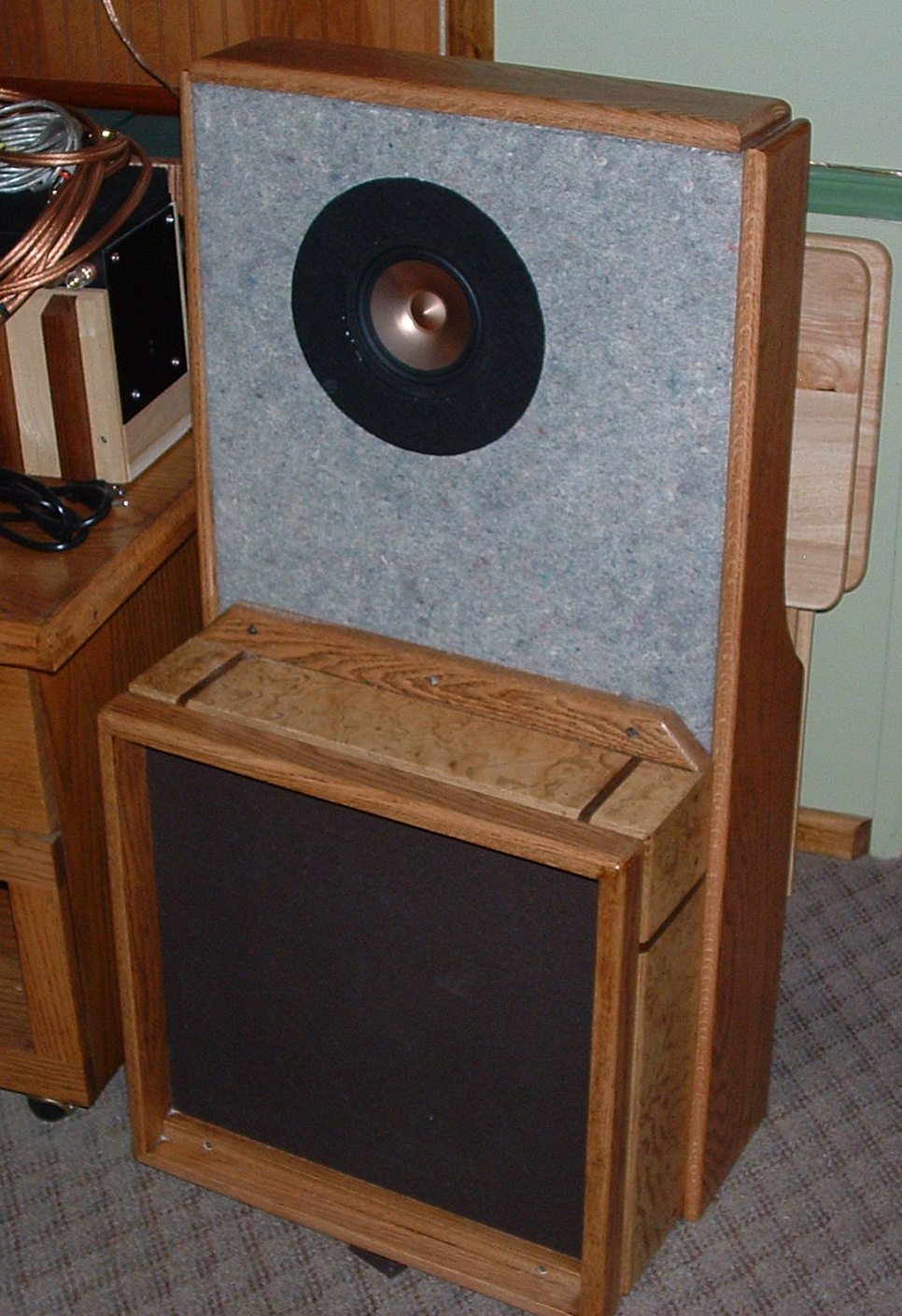

Jordan JX92S OB over a Goldwood GW-1858 Tubular H Frame

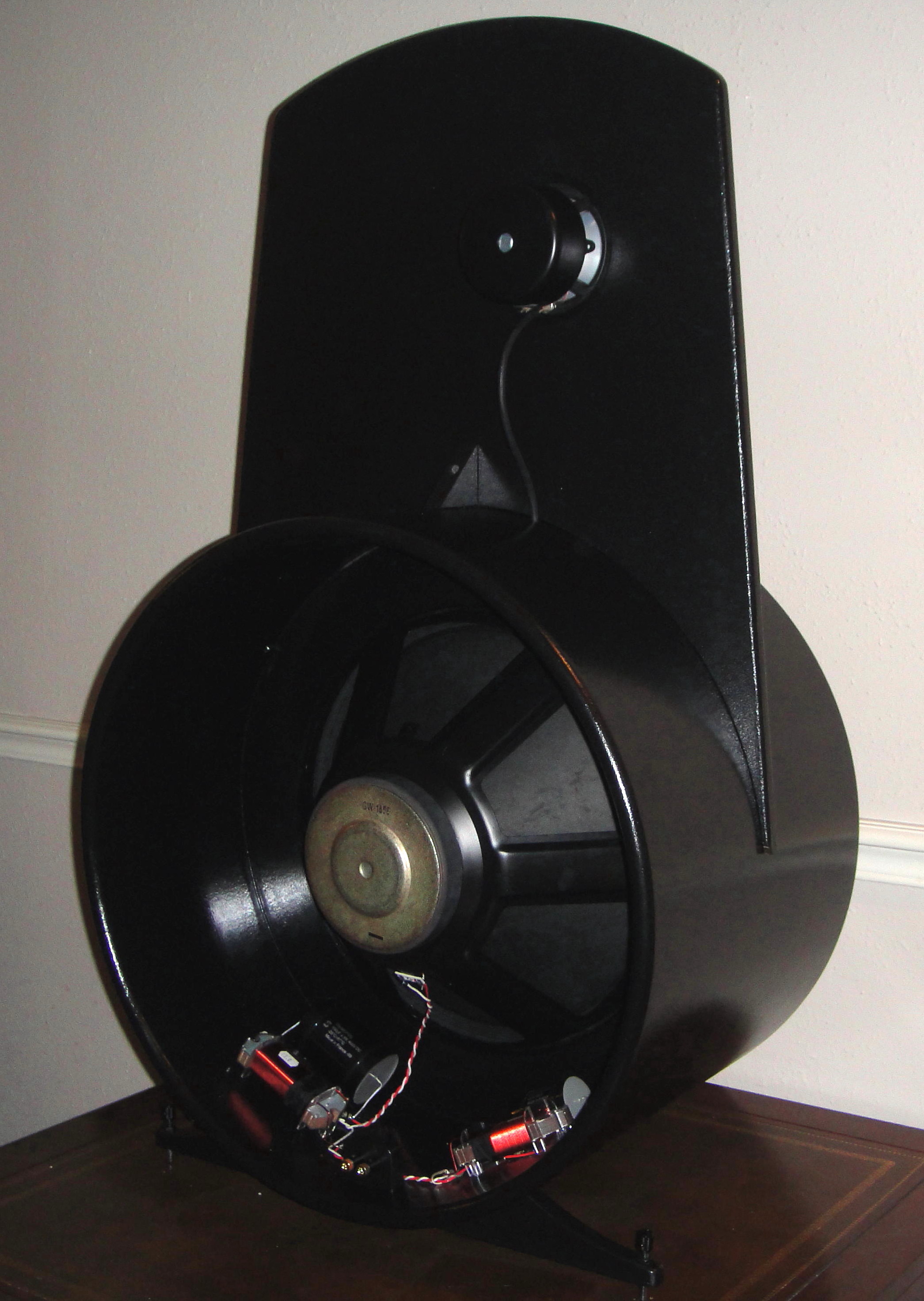

The Crossover is Built into the Rear of the H Frame

Built by Brad Rice


Fostex FE-103E Full Range Driver on an OB and an Eminence Alpha 15A Woofer Mounted in a H Frame

Built by Graf Imhoof

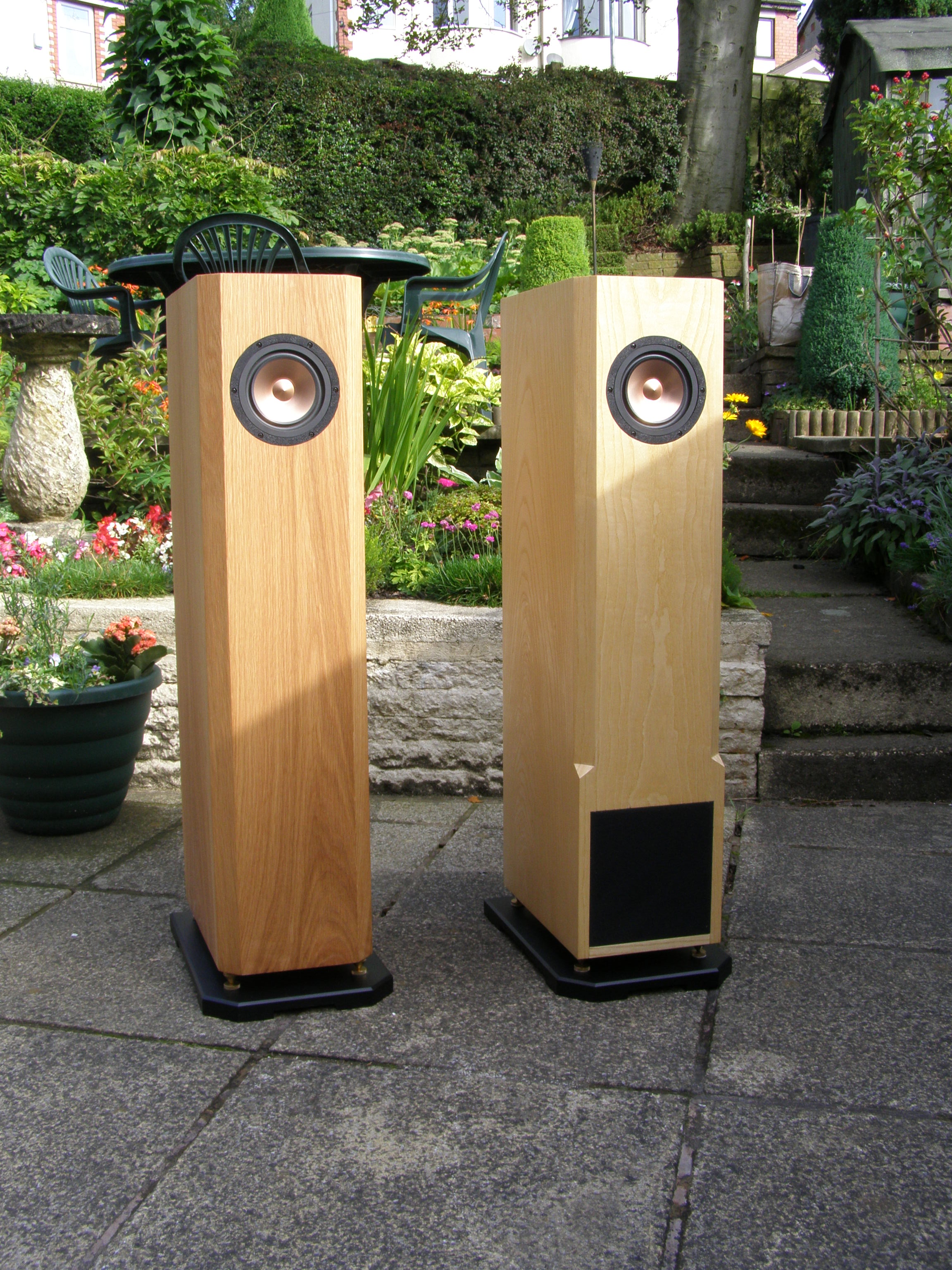

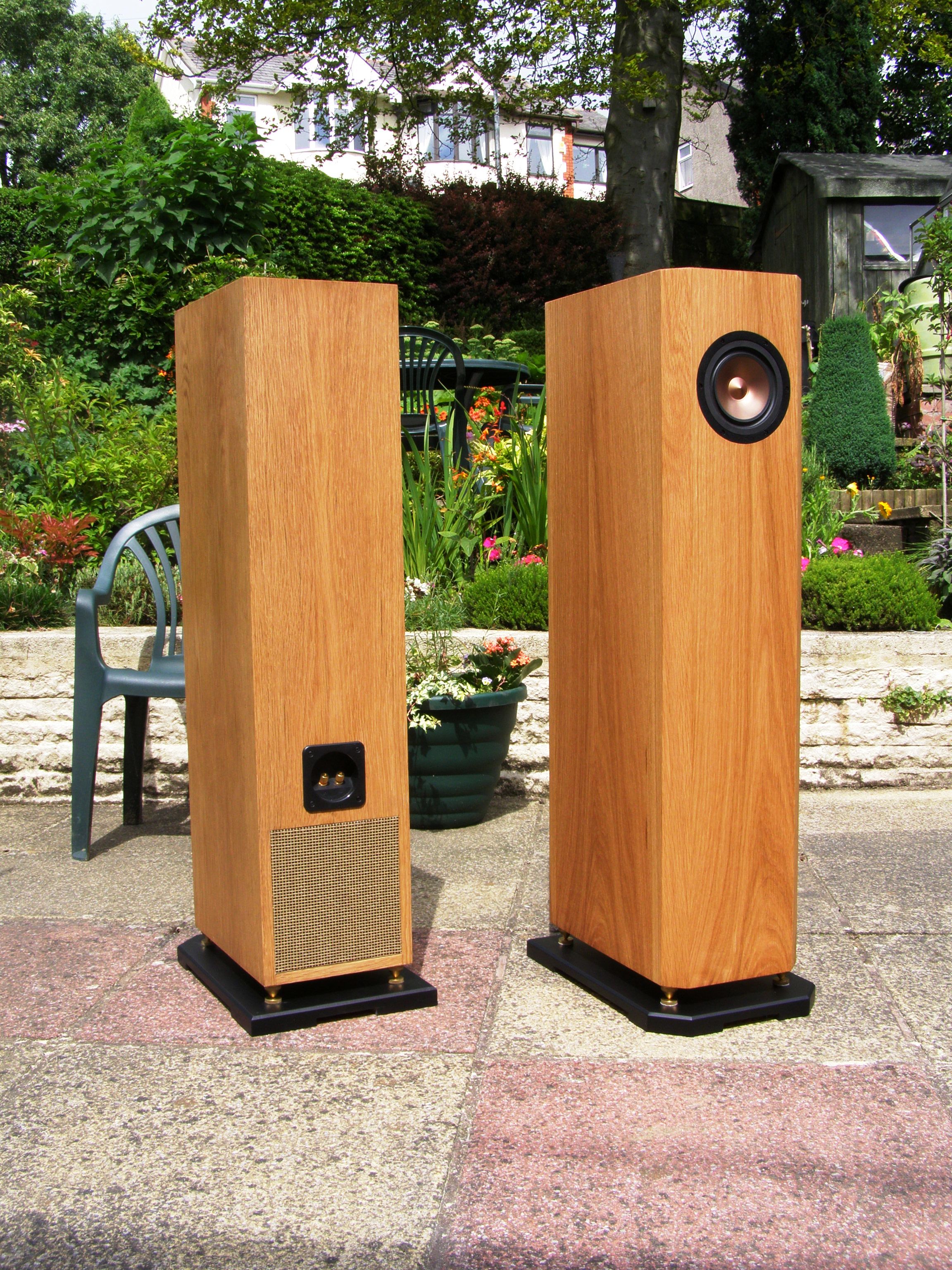

Back Loaded Horns Using the Alpair 10 Full Range Driver

Front and Rear Mouth Versions

Built by Colin Topps

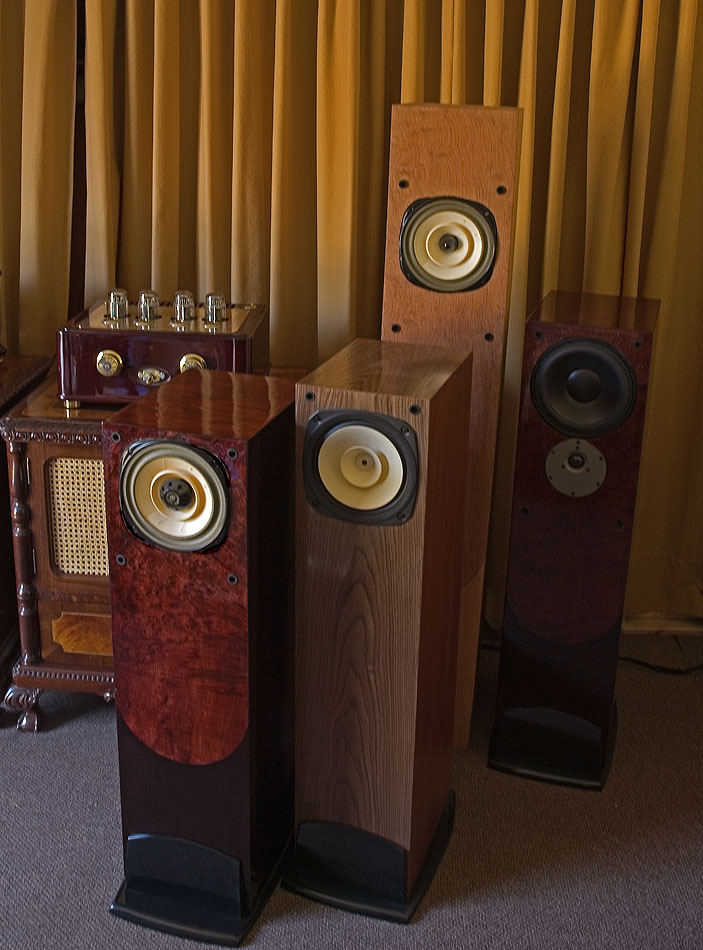

A Variety of Quarter-Wave Enclosure Designs Using Fostex and Lowther Full Range Drivers

Built by Daniel Advis


ML TQWT Using Fostex FE-164 Drivers

Built by Hubert Pellet

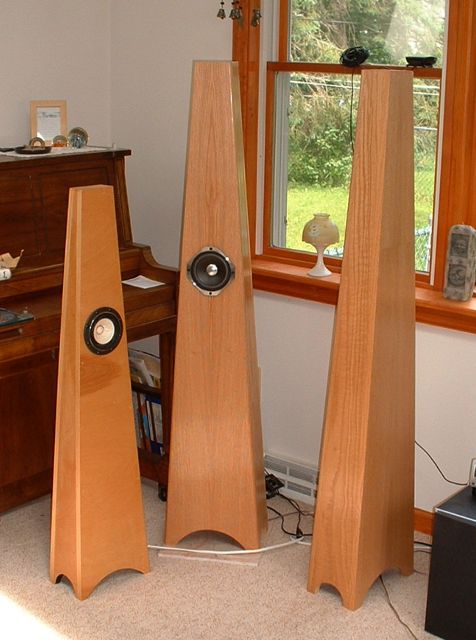

Two Metronomes Using Fostex FE-108EZ and Fostex F120A Full Range Drivers

Built by Jim Shearer


The Copper Tones Speaker
A CSS FR125 Full Range Driver in a ML TL Enclosure


The BSC is Built into the Base

Built by Paul Kittinger

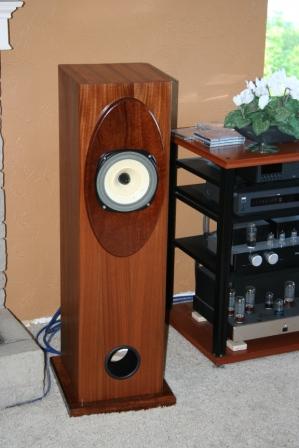

Bob Brines' LT2000 ML TL Design with a Lowther DX4 Driver

Built by Toby Patton

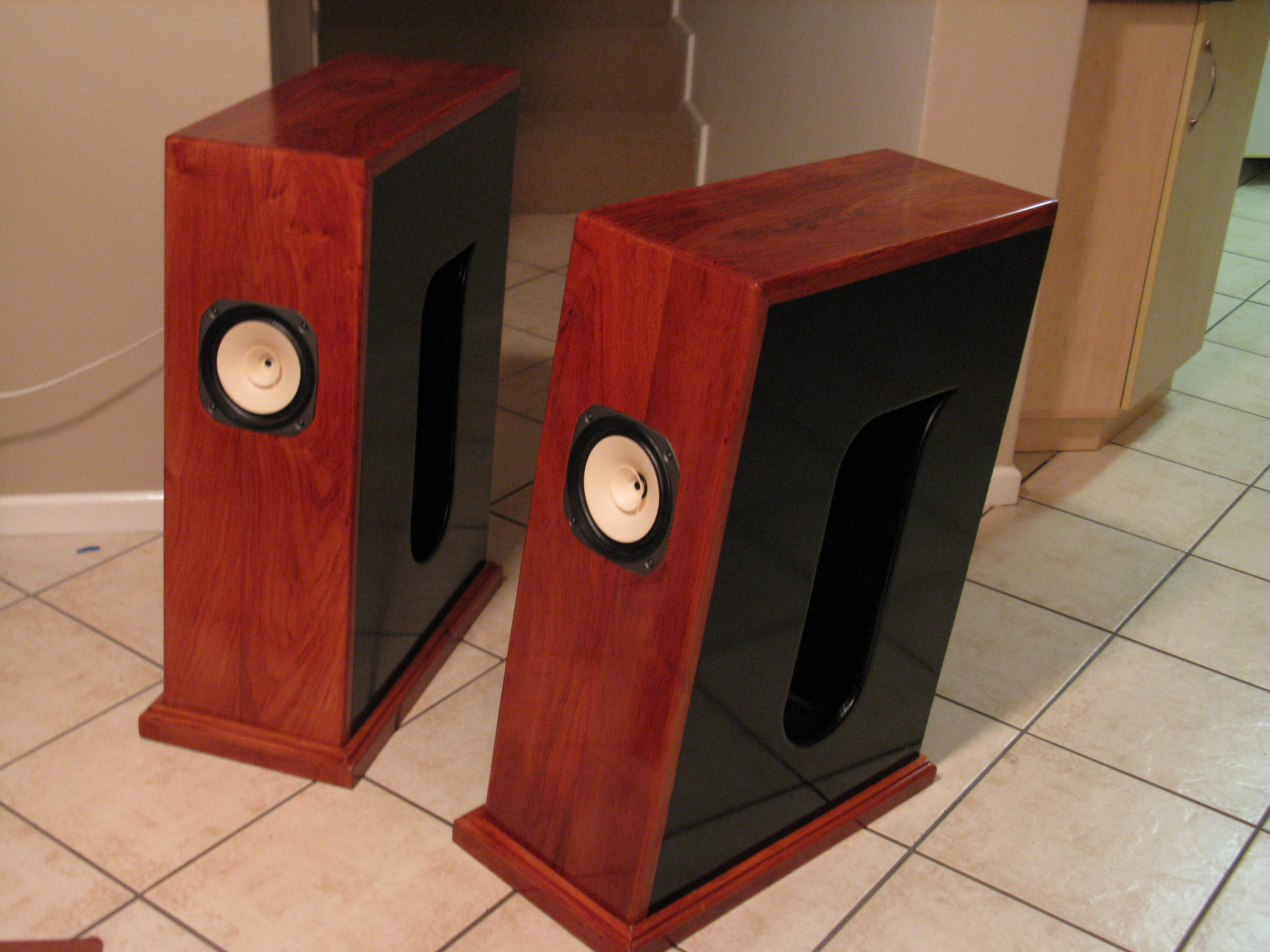

A Folded Tapered Quarter Wave Pipe using the Fostex FE-167E Full Range Driver

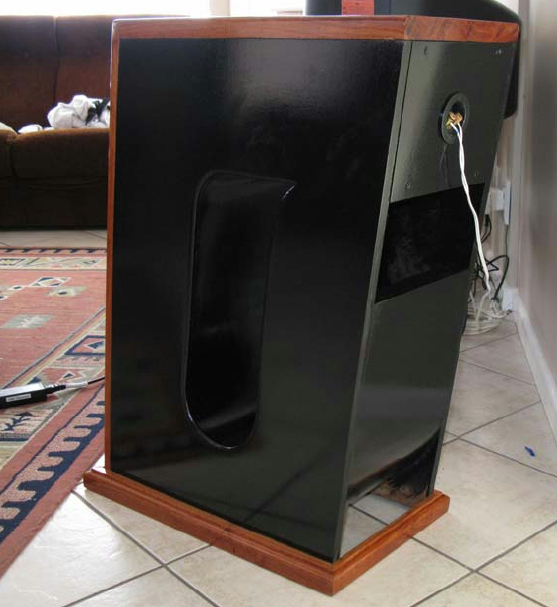

Rear View

Built by Richard Goodland

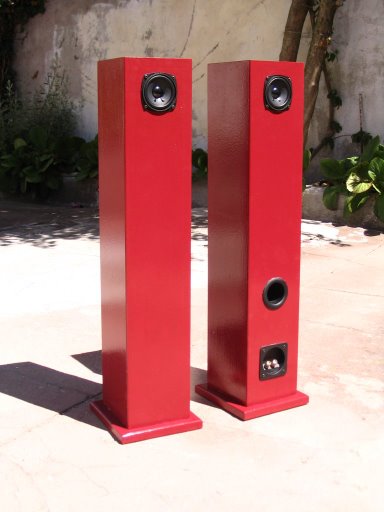

Visaton FRS8 Full Range Drivers in Bipole Enclosures (Front and Back Views)

Built by Esaú Cardoso


The Marcato Speaker
A Pair of Usher 8945Ps in a 2-way MTM ML TL with a BG Neo3PDR Planar Tweeter


The Crossover is Built into the Base

Built by Paul Kittinger

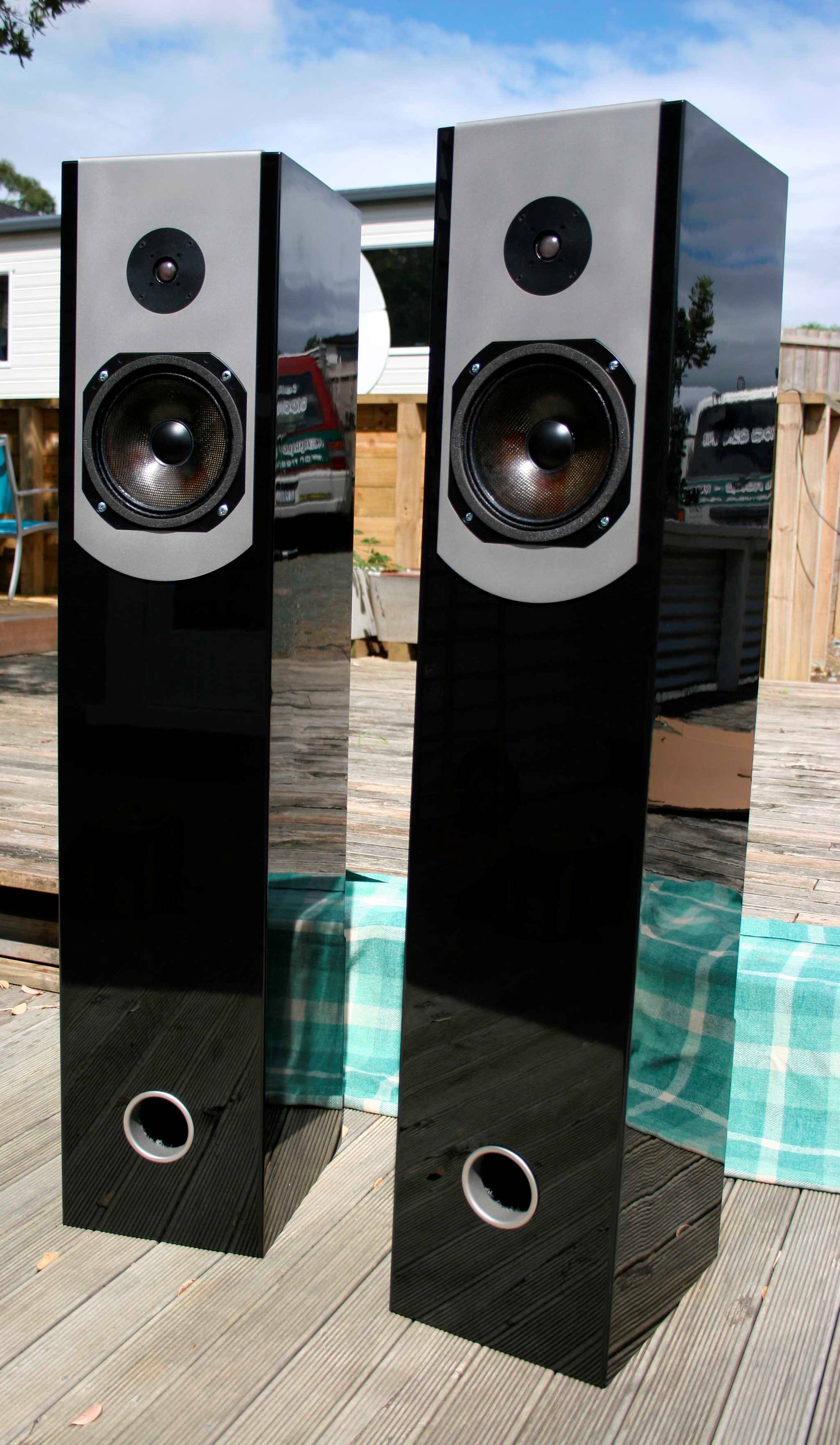

SEAS Tweeter and RCF 8" Woofer in a Folded ML TQWT

Built by Aaron White


Alpair 10 Full Range Driver on an OB with an Eminence Alpha 15A Woofer in a H Frame

Built by Pete Menting

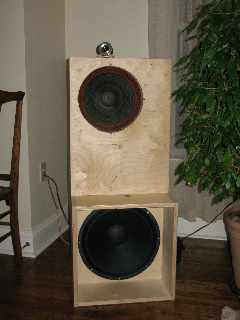

Fostex T90A Super Tweeter, Electrovoice SP12B Wide Range Driver, and Eminence Alpha 15A Woofer in an H Frame

Built by Bill LaDieu


Fostex FE-87E Full Range Driver and Eminence Alpha 15A Woofer on an OB

Built by Brad Rice

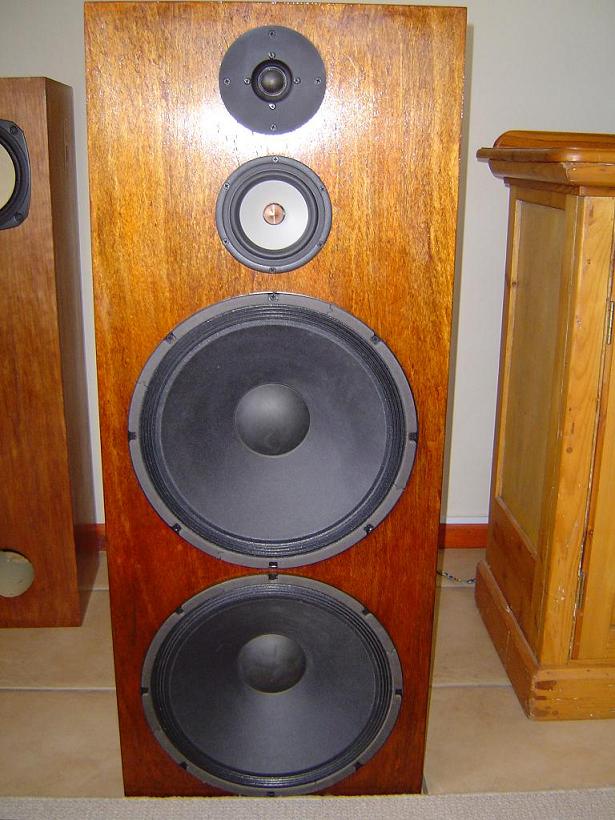

2 x Eminence Alpha 15A's, 5 1/2 " Seas Excel, and a Scanspeak Revelator on an OB

Built by Joseph Potgieter

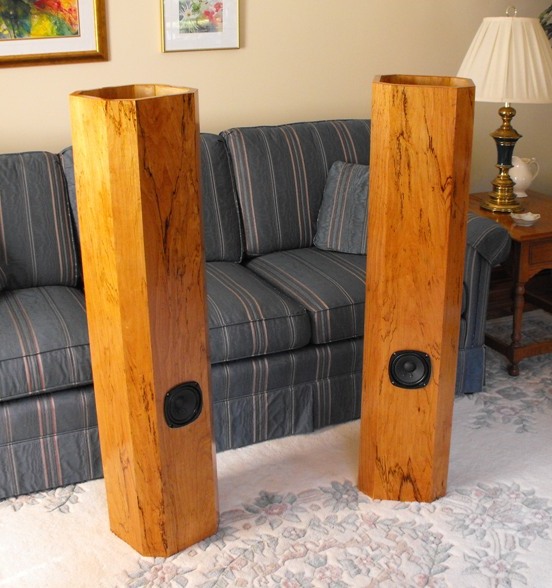

Pioneer Model A11EC80-02F Driver in a TL

Built by Ed Hlywa

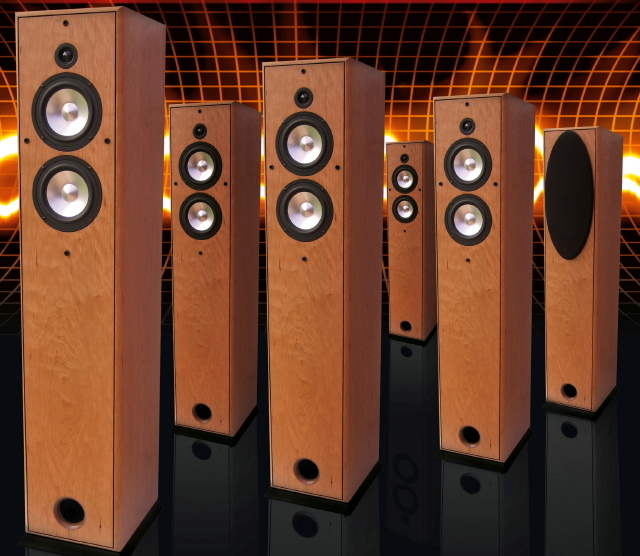

Aurousal's VS VirtualSource Floorstander

Available from Aurousal Ltd.

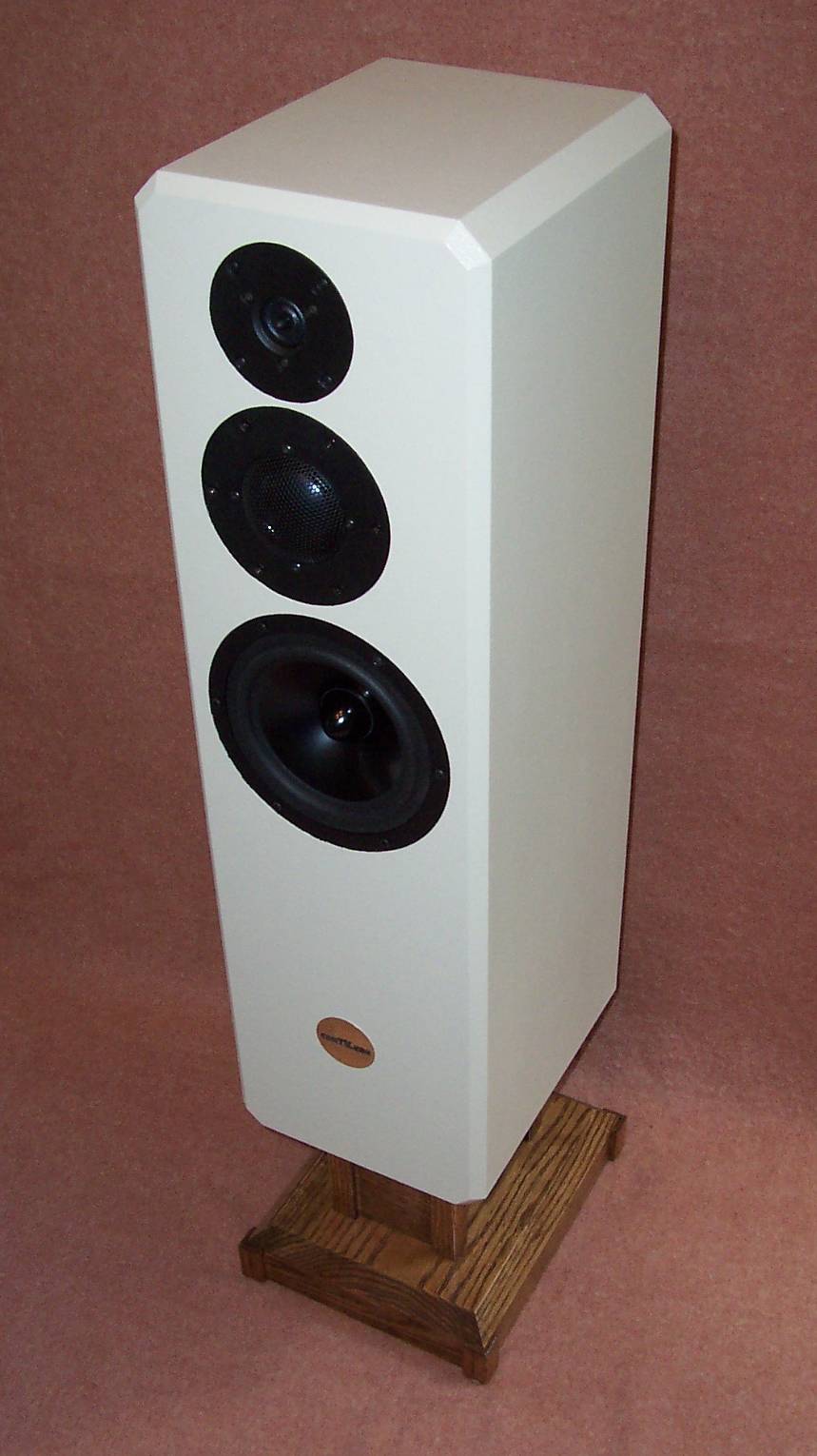

The cenTiLana Speaker
A Dayton RS180-4 Woofer, in a single-fold 60" long ML TL, with a Dayton RS52 dome Midrange and a Vifa XT19 Tweeter


The Crossover is Built into the Base

Built by Paul Kittinger

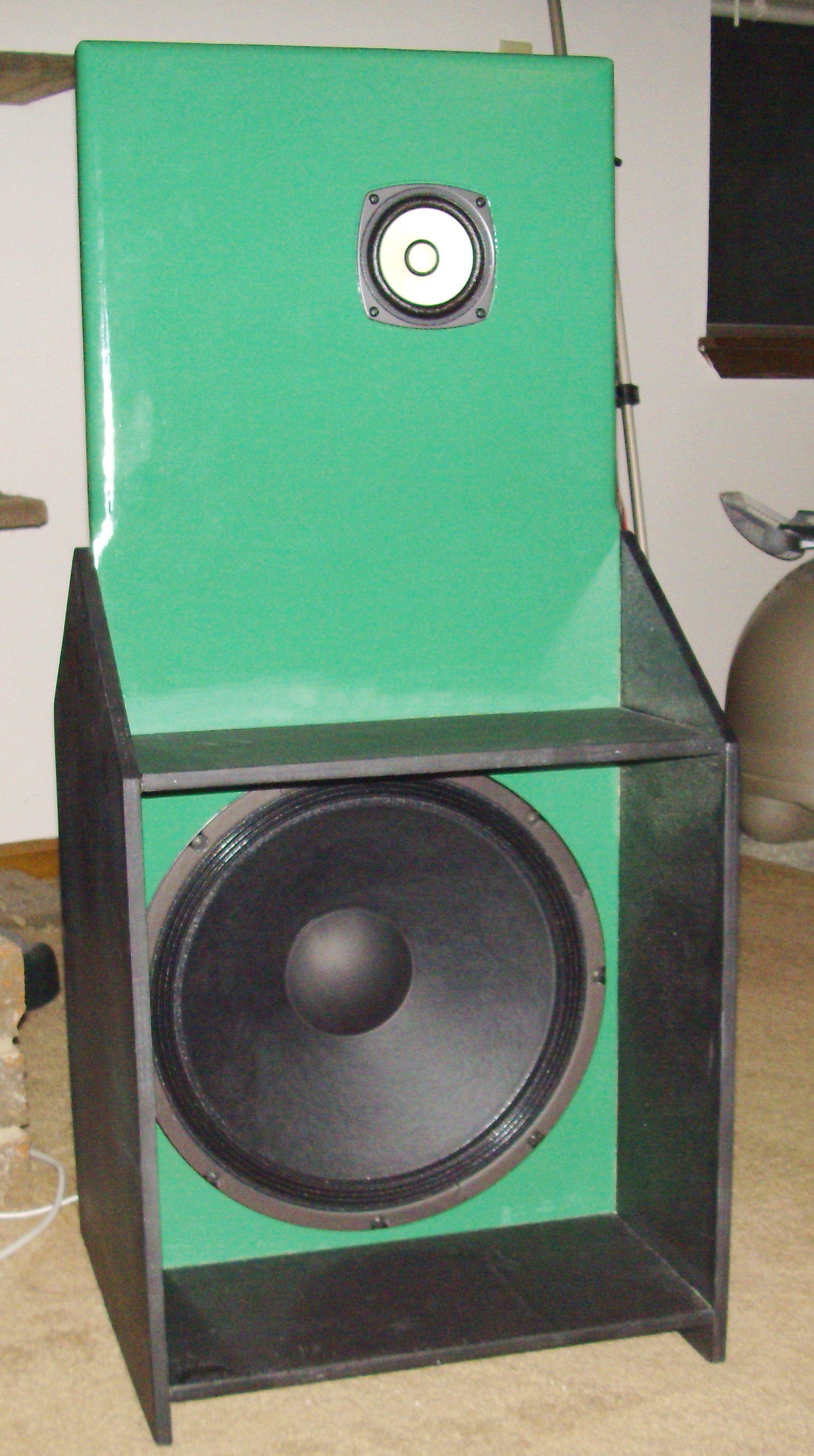

Open Baffle Design Using a Fostex FE-103E Full Range Driver and an Eminence Alpha 15A Woofer

Built by Dan Hatmaker

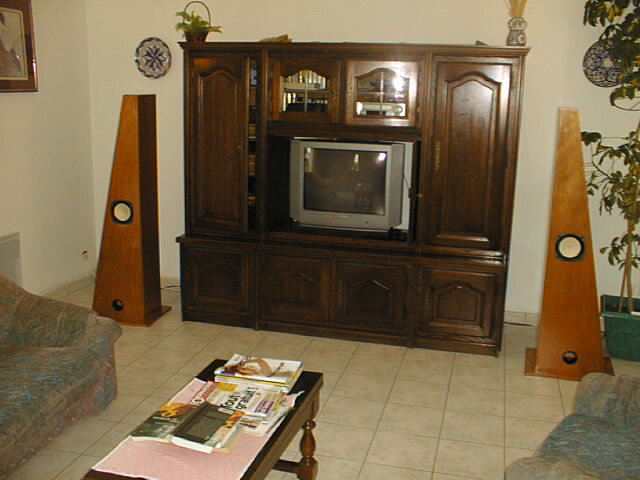

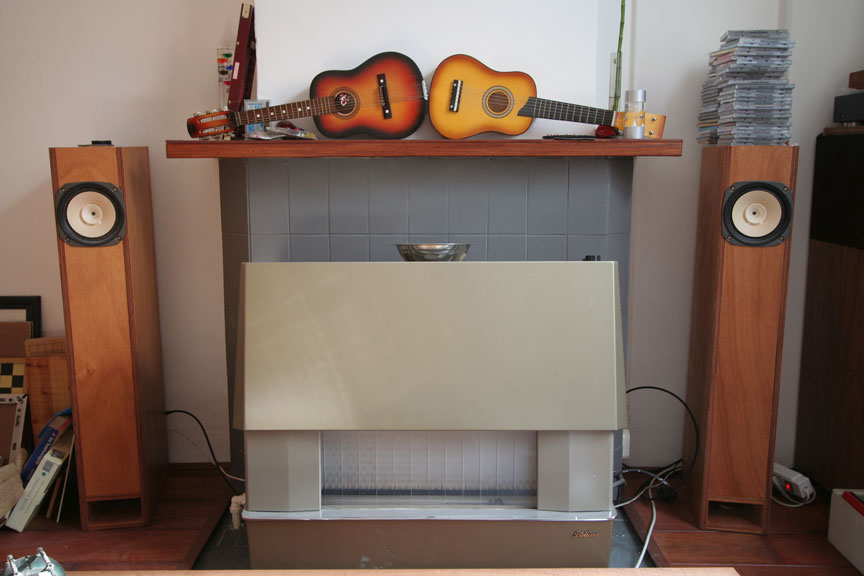

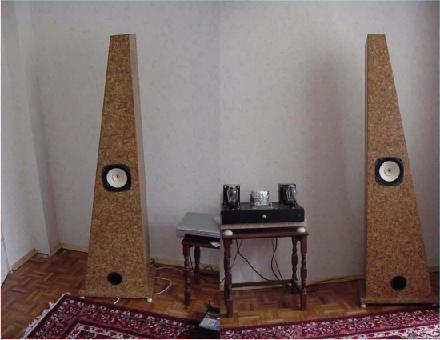

ML TQWT Using Fostex FE-164 Drivers

Built by Jack Ha

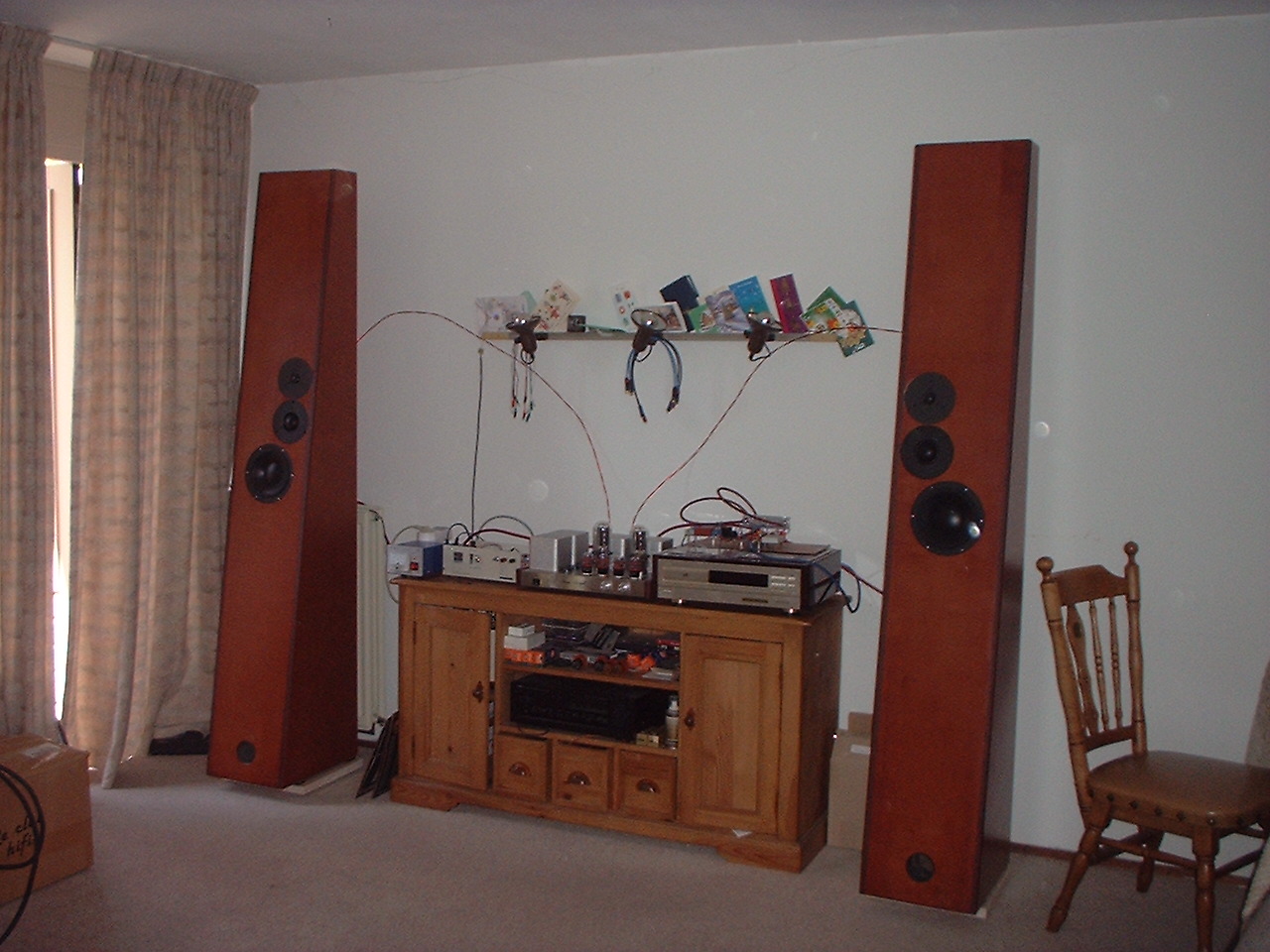

ML TQWT Using Dynaudio Drivers

Built by Hans van Rooij

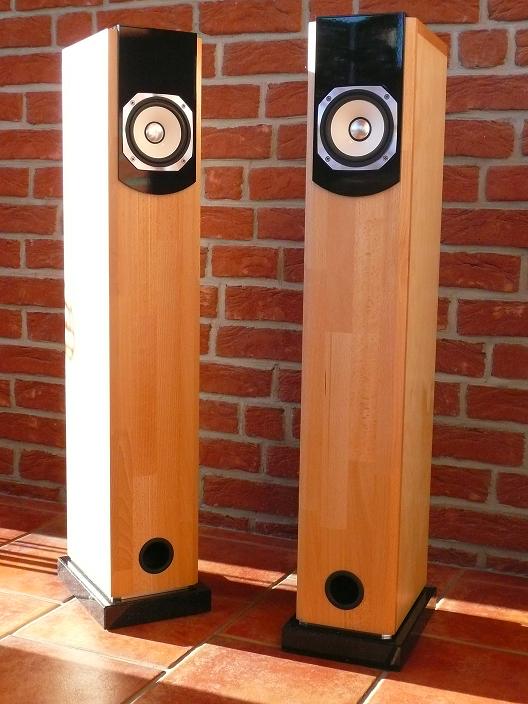

Folded ML TQWT Using the Fostex FX120 Full Range Driver

Built by Martin Paul

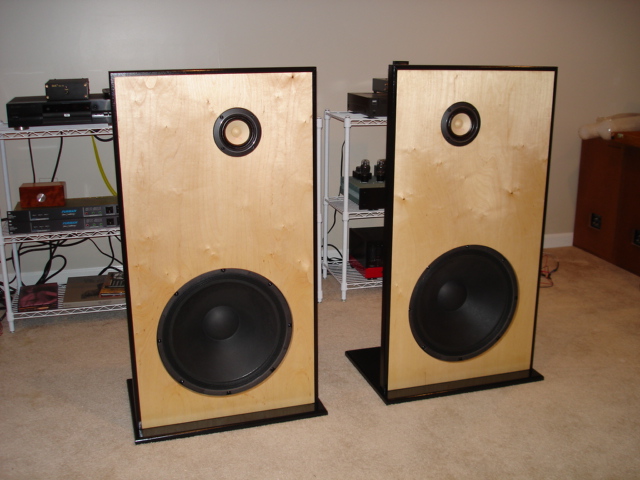

Open Baffle Design Using a Fostex FE-108 Sigma Full Range Driver and an Eminence Alpha 15A Woofer

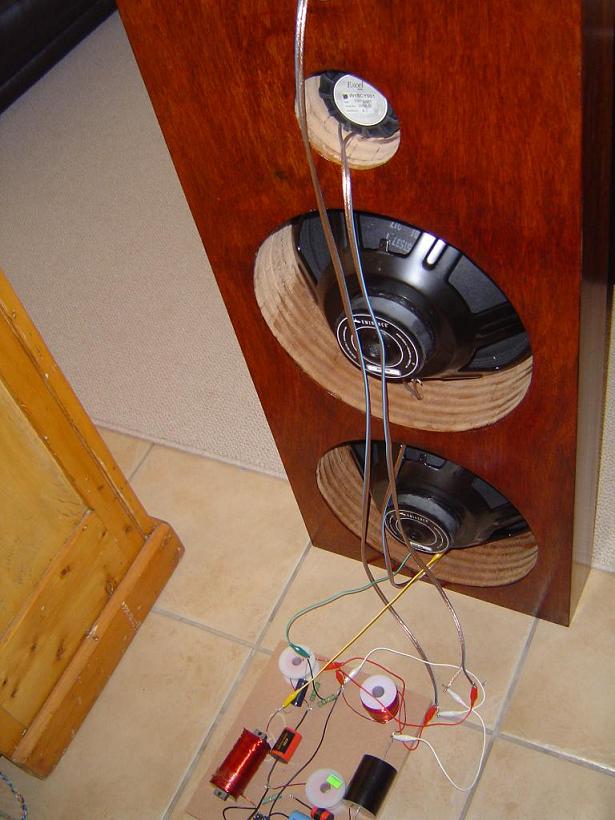

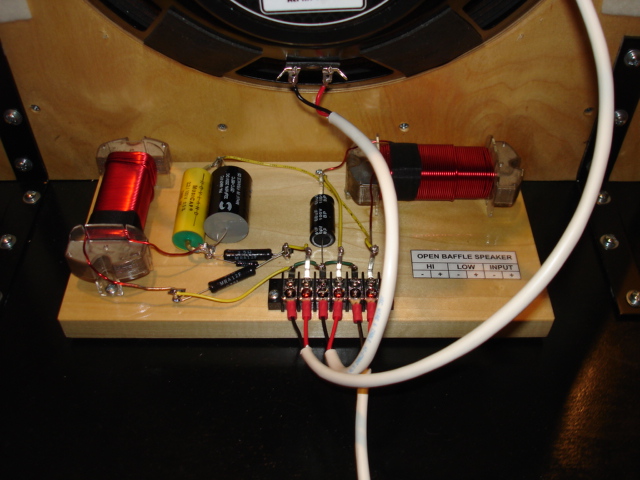

The Crossover

Built by Mike Rains

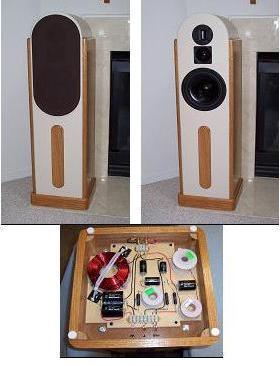

The canTiLena Speaker
An 8" SS22W/8857T00 Woofer, in a single-fold 77" long ML TL, with a Morel MDM55 Midrange and a Fountek NeoCD1.0 Ribbon Tweeter

Built by Paul Kittinger


ML TL Using SEAS H1212 Tweeter and a SEAS CA18RNX Woofer

Built by Peter Myers

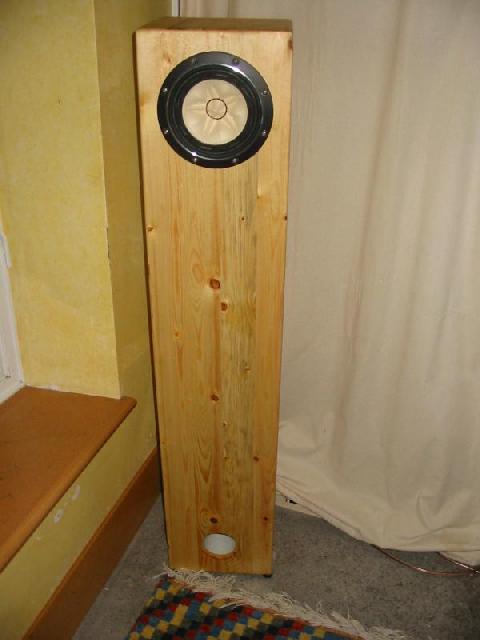

Fostex FE-168EZ Sigma in a ML TL

Built by Rudy Vanclaire


Open Baffle Design Using a Supravox 215RTF Bicone Full Range Driver and two Eminence Alpha 15A Woofer Drivers


The Crossover and 45W Monoblock Amplifiers

Built by Vasile Carcei

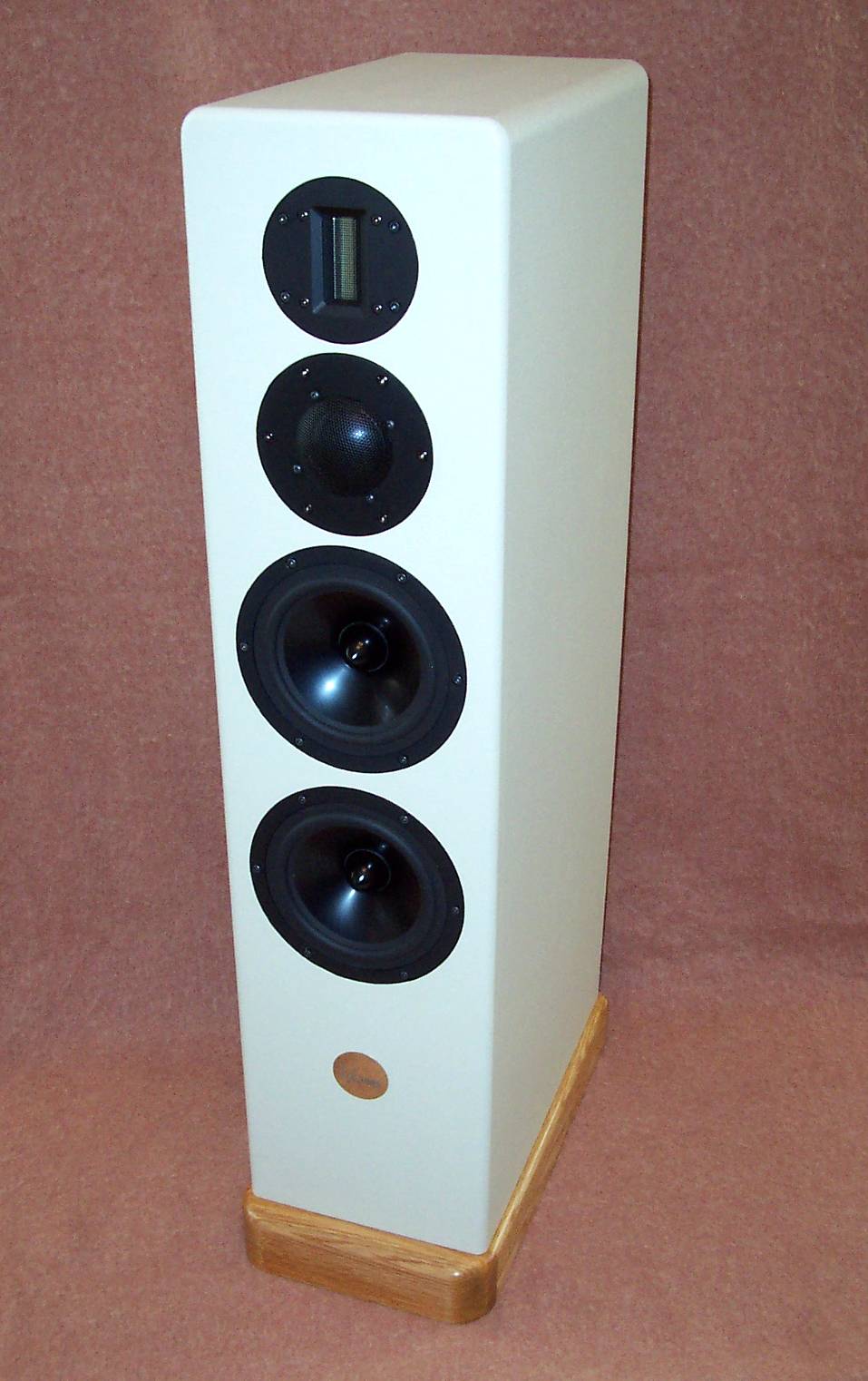

The TuLines Speaker
A Pair of Dayton Loudspeaker RS180 Woofers, in separate ML TL's, with a Dayton RS52 midrange and a Fountek NeoCD3.0 Ribbon Tweeter

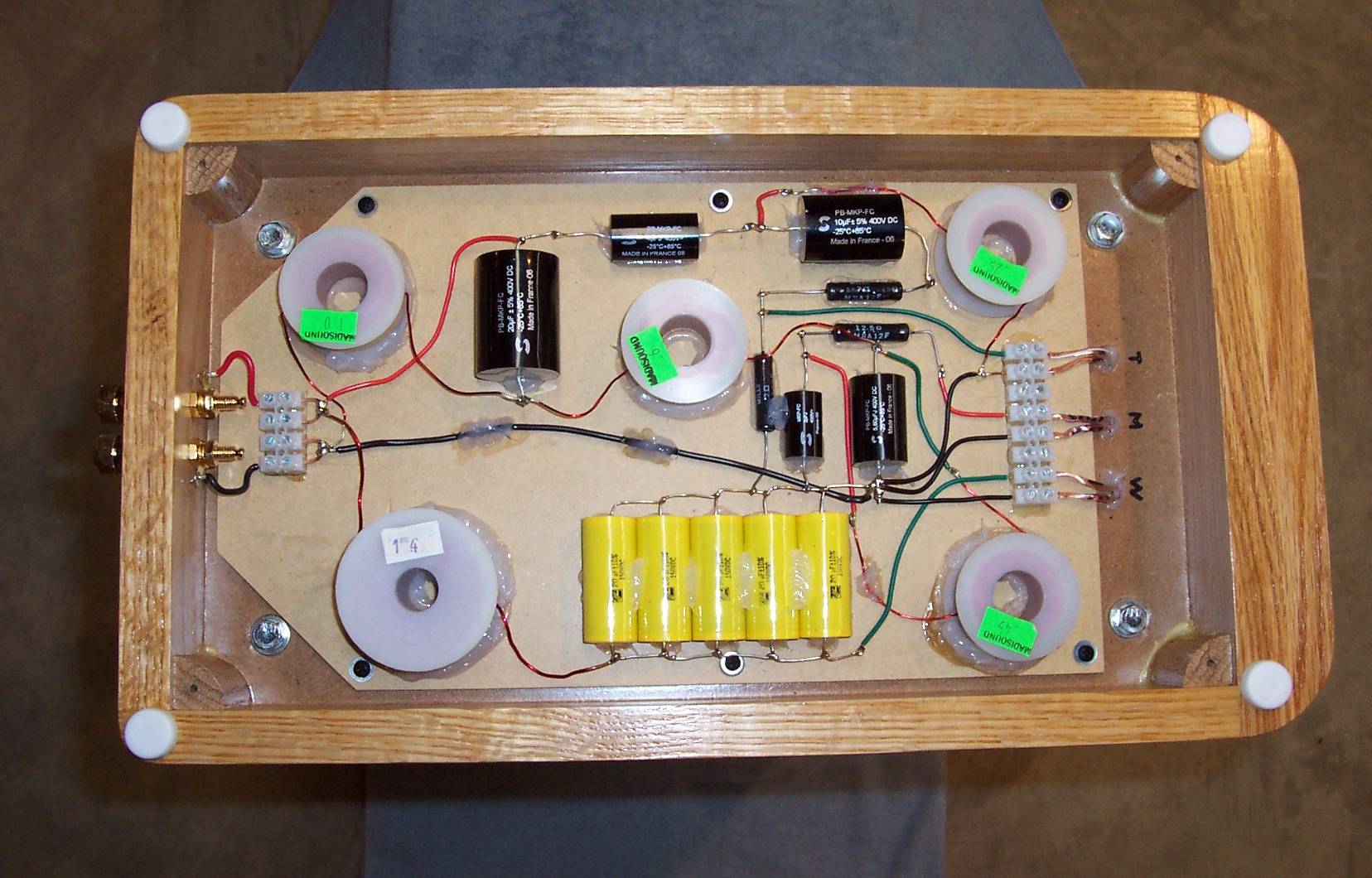

The Crossover is Built into the Base

Built by Paul Kittinger

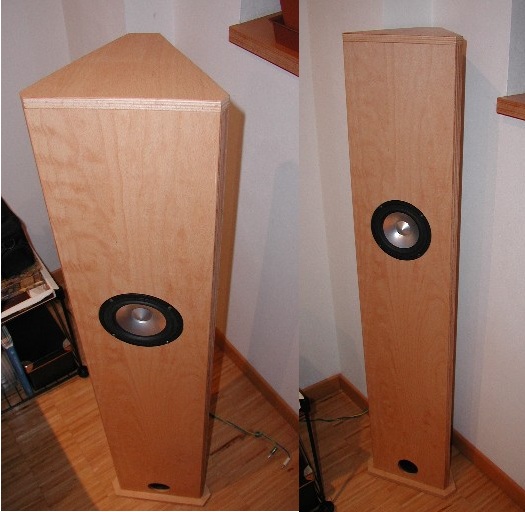

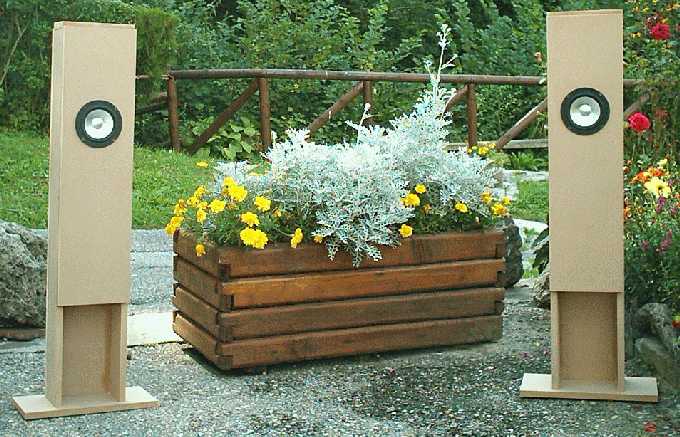

ML TL Using a Jordan JX92S Full Range Driver

Built by Francesco Campedelli


ML TL Using a Hi-Vi B3N Full Range Driver

Built by Francesco Campedelli


Tapered TL Using a Visiton 120mm W100-S bass / mid and Elac DT28 Tweeter

Built by Carl Peake

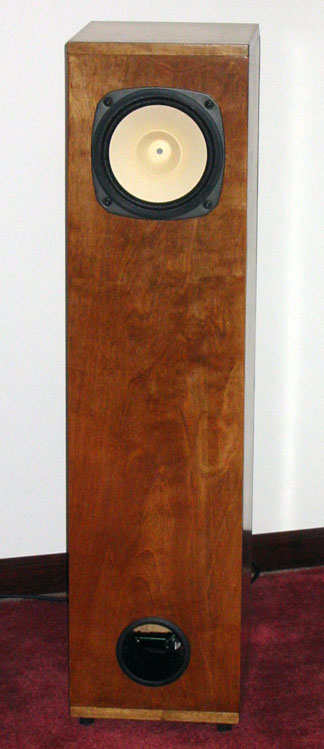

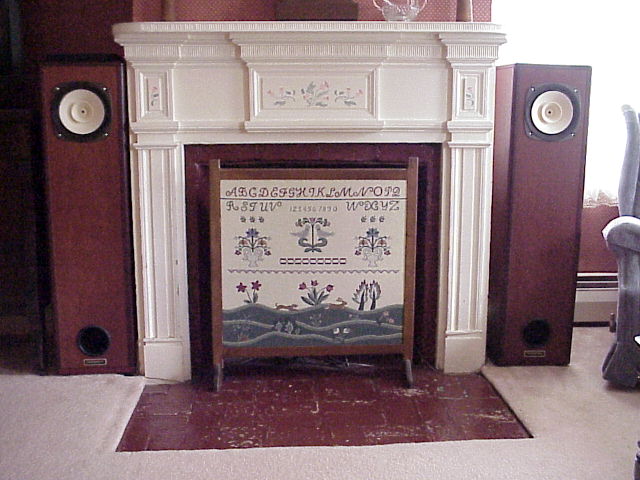

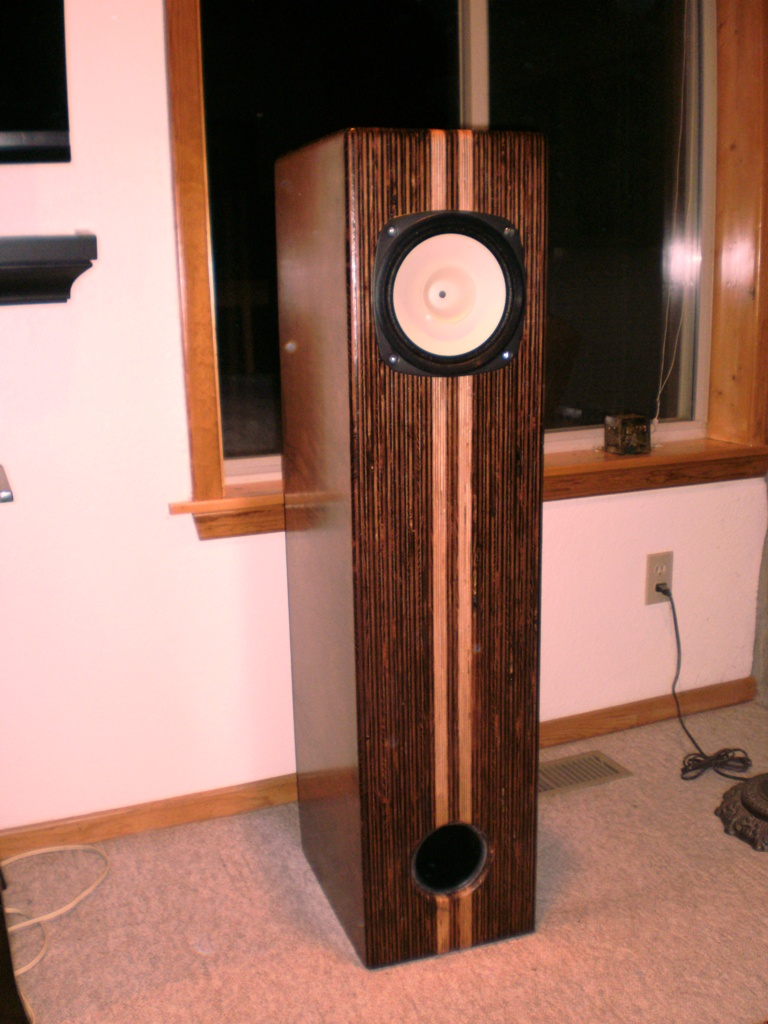

Fostex FE-206E in a ML TL

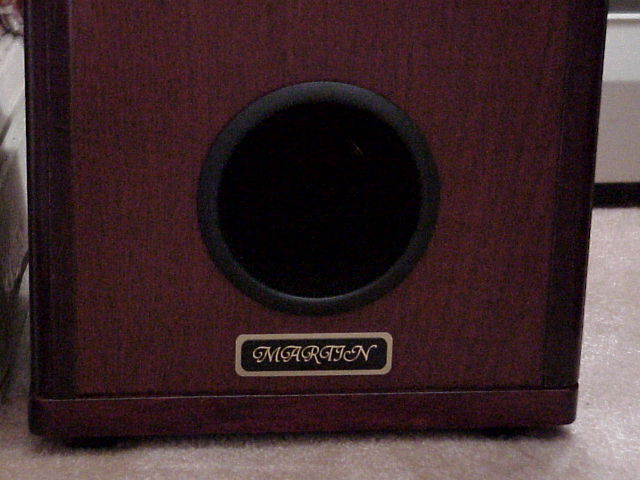

Complete with name plate!

Built by Brent Frazee

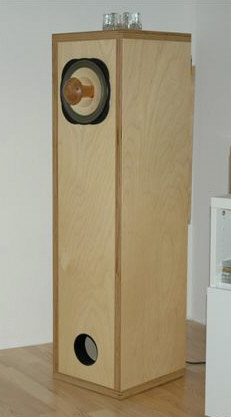

Lowther DX2 in a ML TL

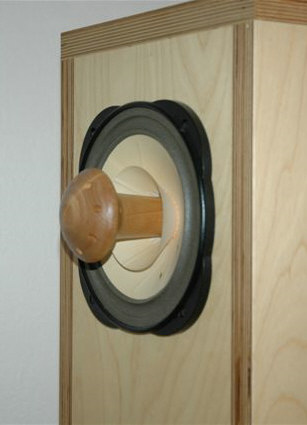

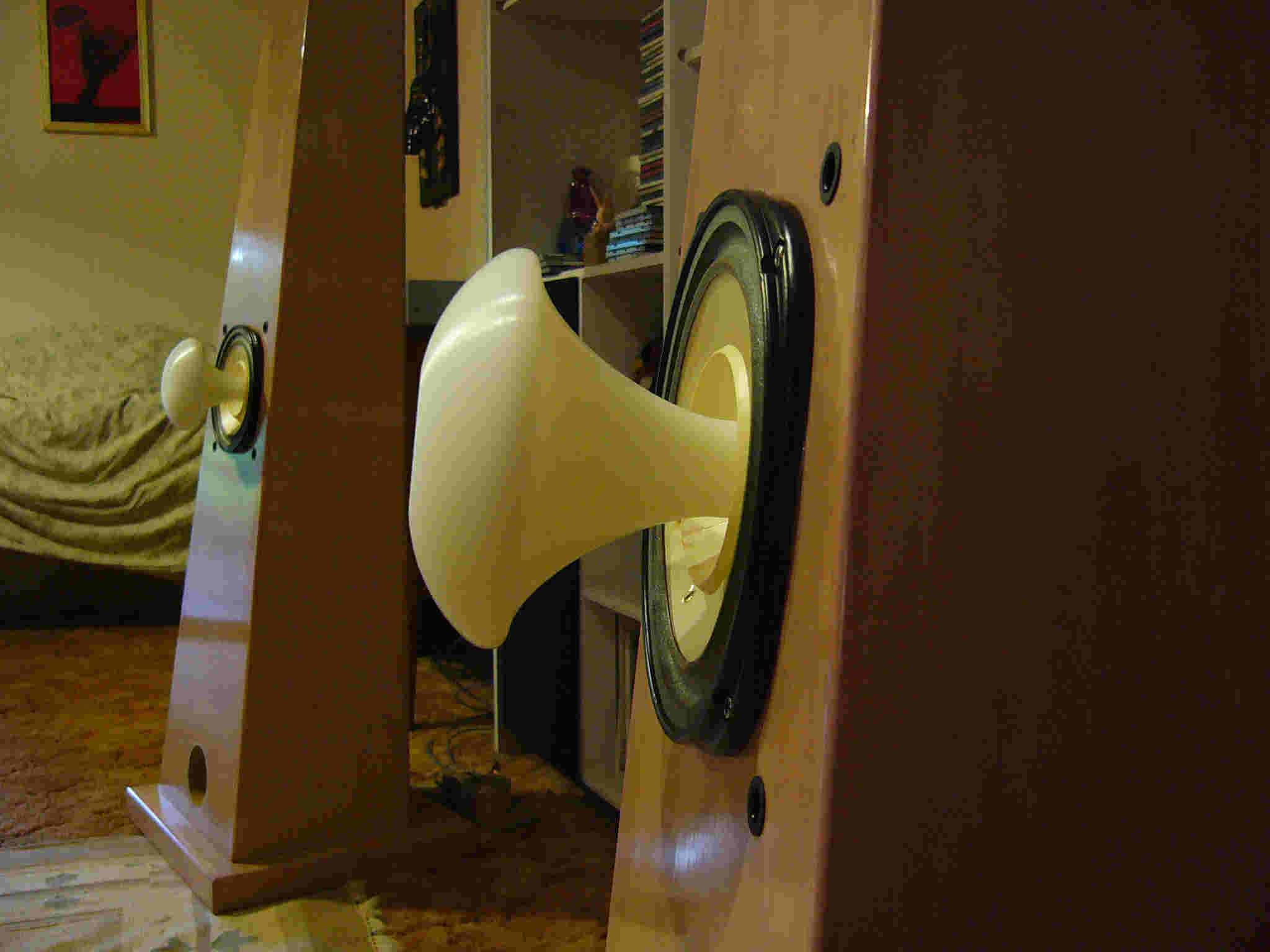

Phase Plug

Built by Torry Hægeland

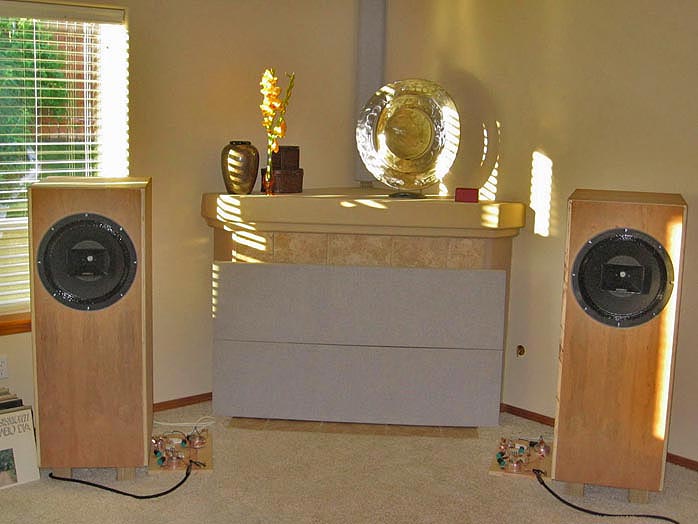

ML TL Using the Great Plains Audio Altec 604-8H-II Driver

Owned by Stephæn. Designed by Jay Fisher and Pete Riggle, built by Pete Riggle and Stephæn.


Bob Brines' ML TL Design using the Fostex FE-167E Full Range Driver

Built by Franz Dorfmueller

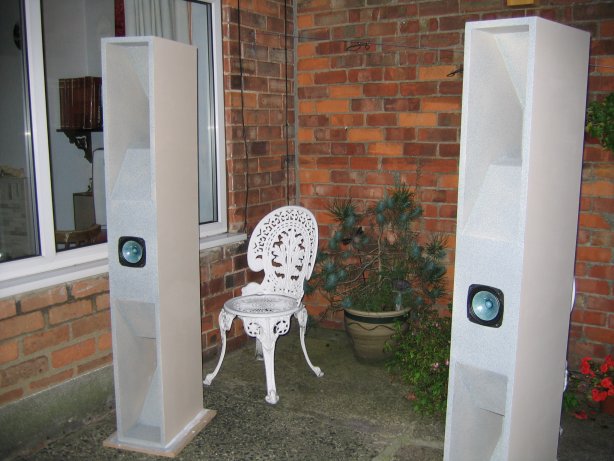

Double Back Loaded Horn using the Fostex FE-126E Full Range Driver

Built by Scott Lindgren

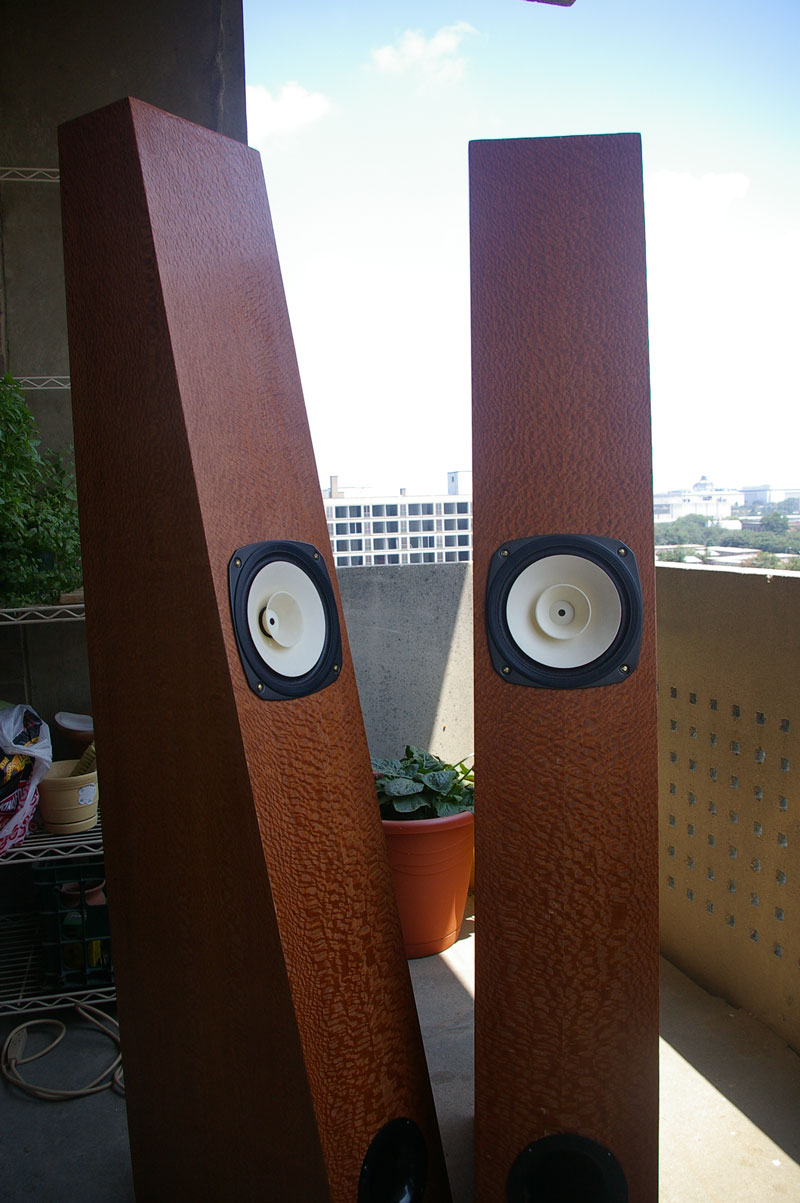

Fostex FE-207E in a LP #9 Enclosure

Built by Hudson Miller

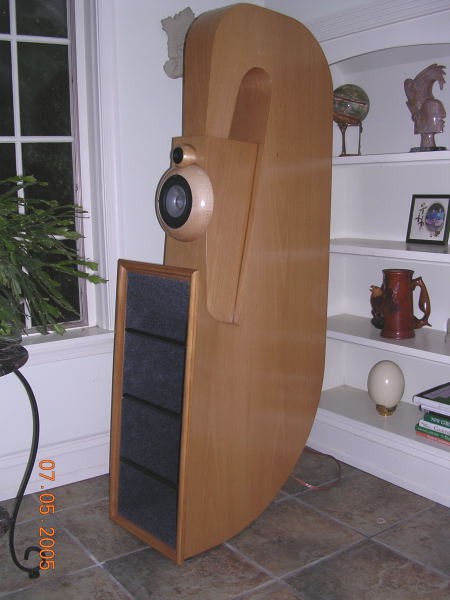

Back Loaded Horn using the Jordan JX92S Full Range Driver and a Super Tweeter

Built by Paul Norton


Mini MLTL HT Speaker using TB 4" Bamboo Driver

Built by Paul Norton

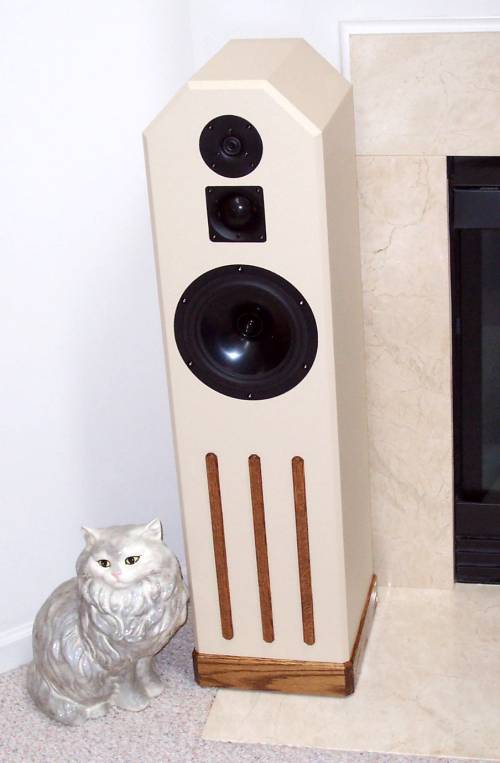

The Alicante Speaker
A Dayton Loudspeaker RS225 8-inch Woofer, in an 18:1 Tapered TL, with a Morel MDM55 Dome Midrange and a Vifa (Peerless Vline) XT19 Ring Radiator Tweeter

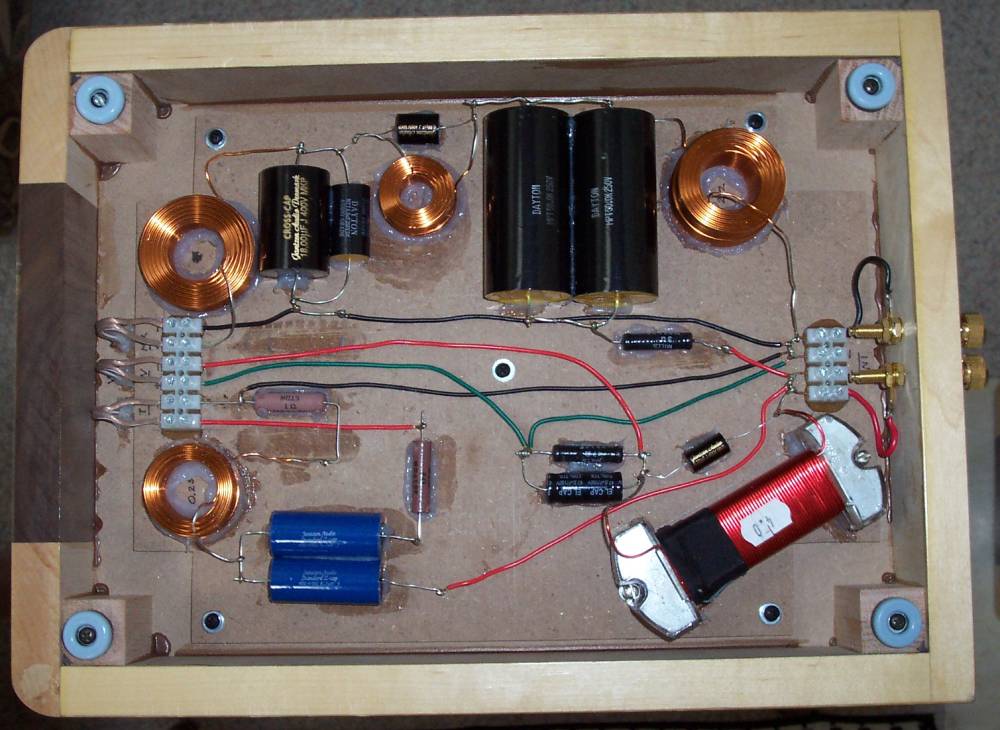

The Crossover is Built into the Base

Built by Paul Kittinger

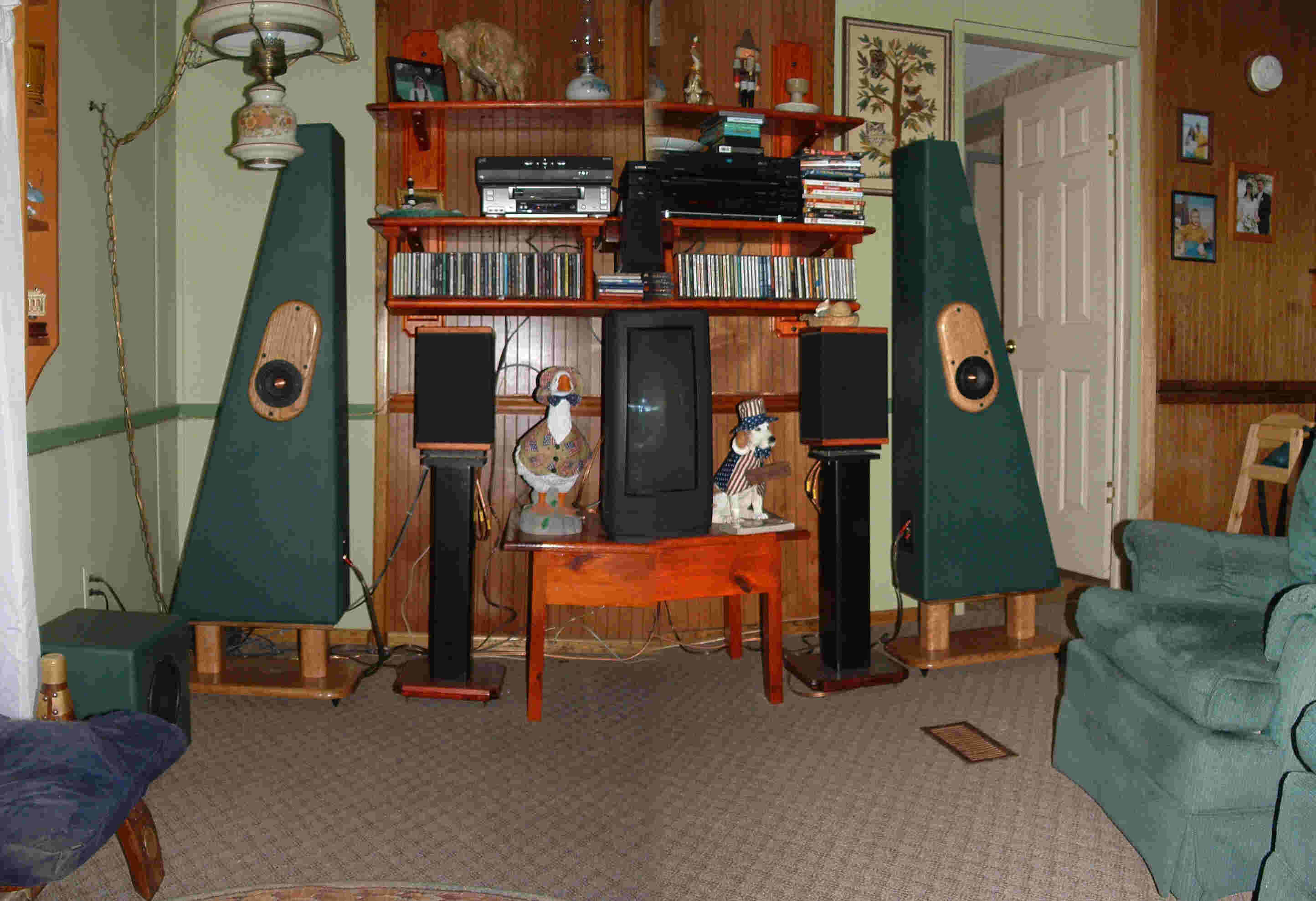

ML TL's Using Scan Speak W21 8554's and 2905 9500 Tweeters in the Big Enclosure and Scan Speak 18W 8545's and Seas 27TDFC Tweeters in the Smaller Enclosure

Built by John Hageman

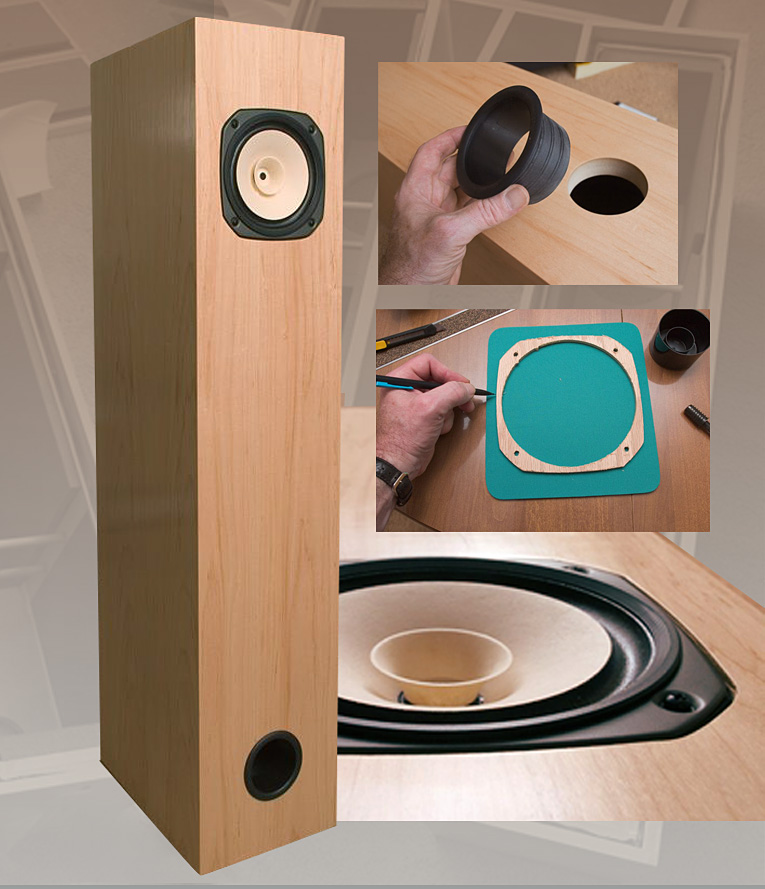

Fostex FE-167E in a ML TL

Built by Rob Flynn

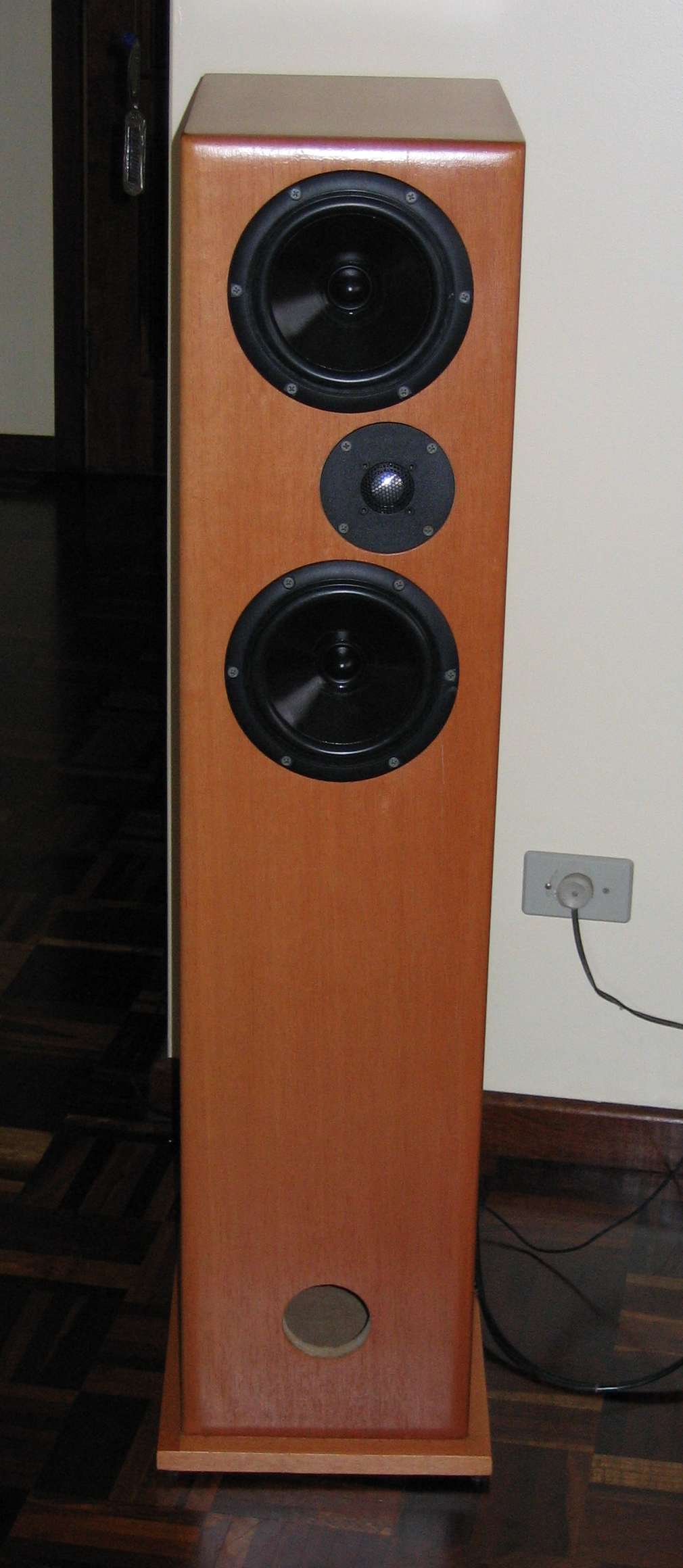

MTM ML TL

Built by Jorge Omar


ML TL using the Fostex FE-206E Full Range Driver

Built by Christian Belgardt

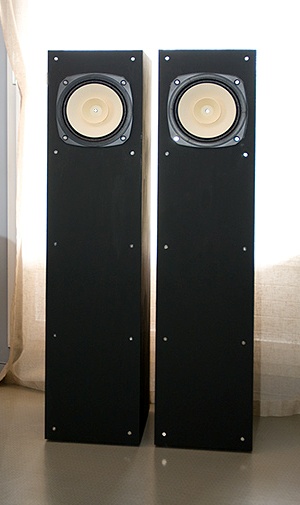

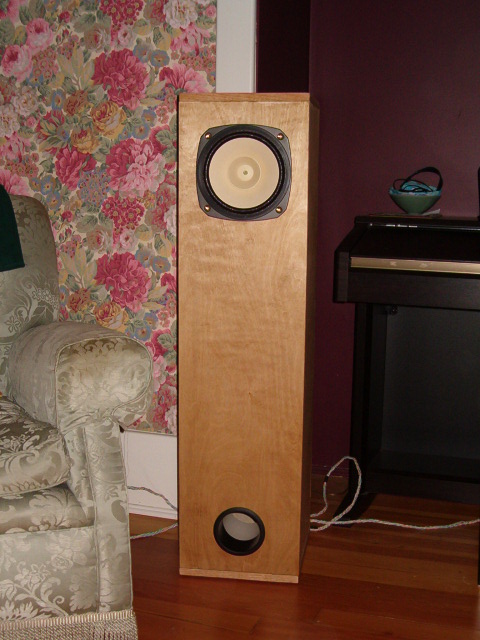

ML TL using the Fostex FE-207E Full Range Driver

Built by Stephen Small

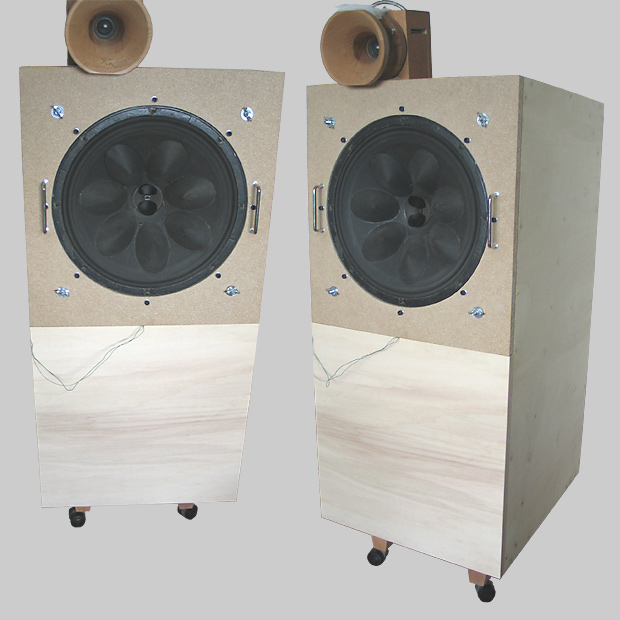

ML TQWT using a RCA LC1B Extended Range Coaxial and a Dynaudio T330 Esotar Tweeter

Built by Zoran Dimovski

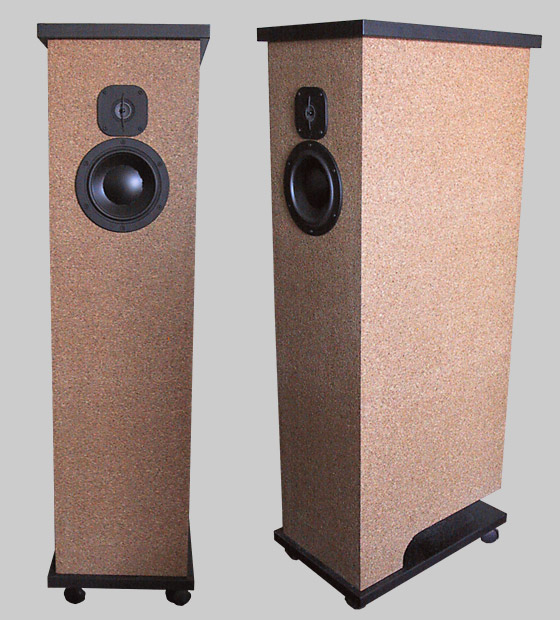

ML TQWT using a Dynaudio 17WLQ Esotec and a Focal TC 90 TD 5 Tweeter

Built by Zoran Dimovski


CCS FR125 Full Range Drivers in a Bi Polar ML TQWT

Built by Pete Menting

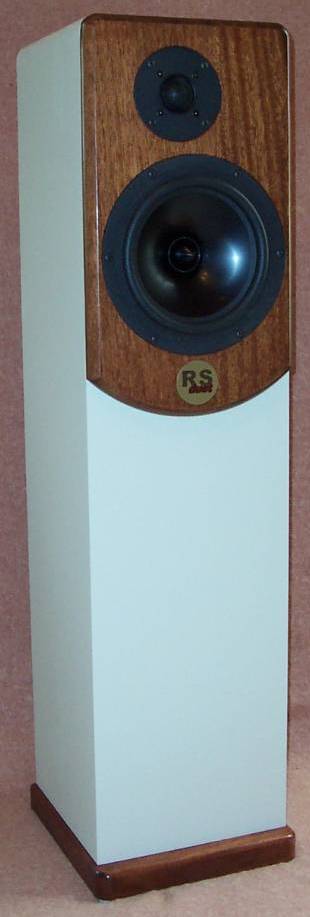

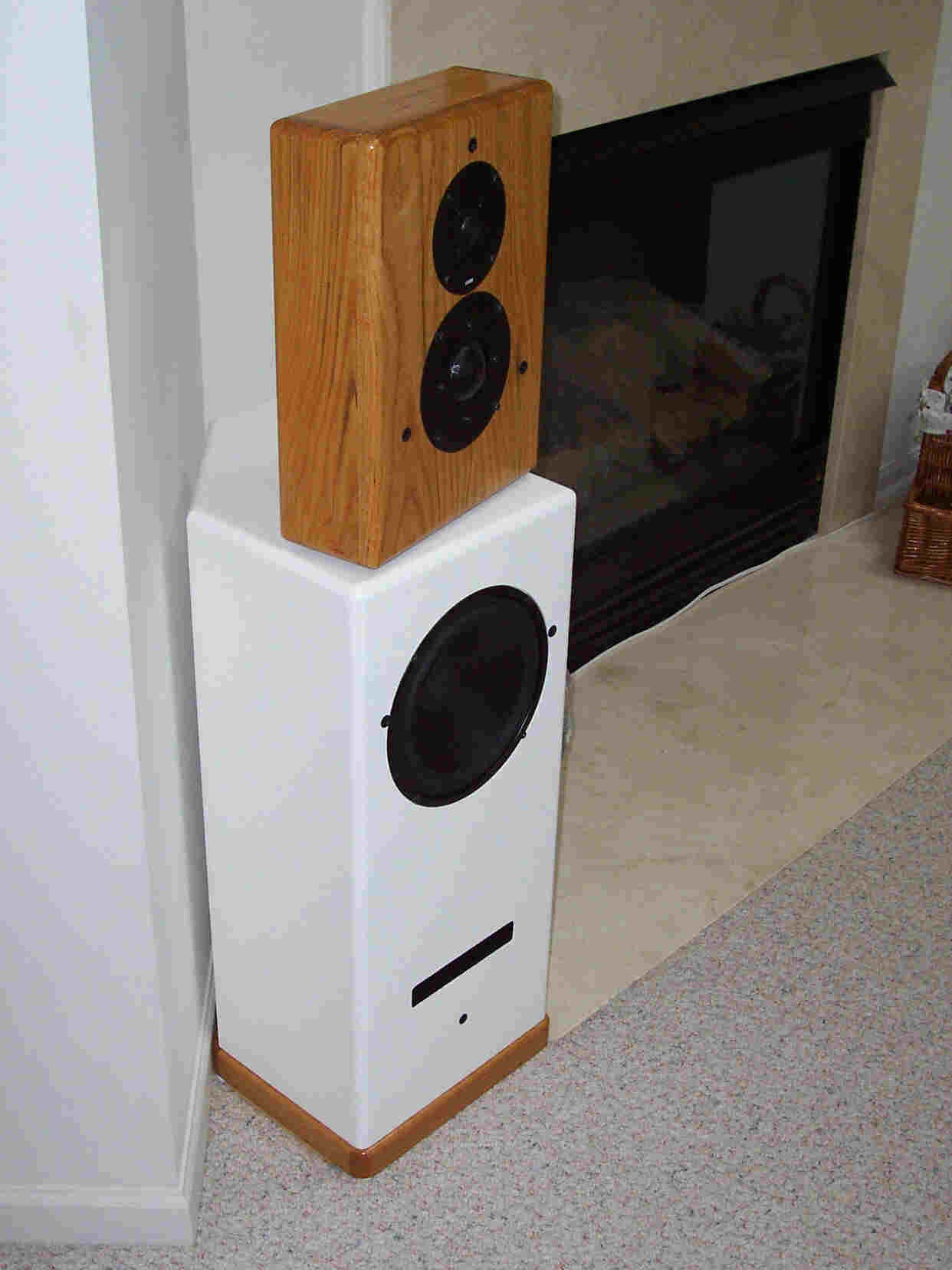

A Peerless 831709 woofer in a ~12:1 "tapered" line with a LPG 50FA soft dome midrange and Eton 19SD-1 soft dome tweeter

Built by Paul Kittinger

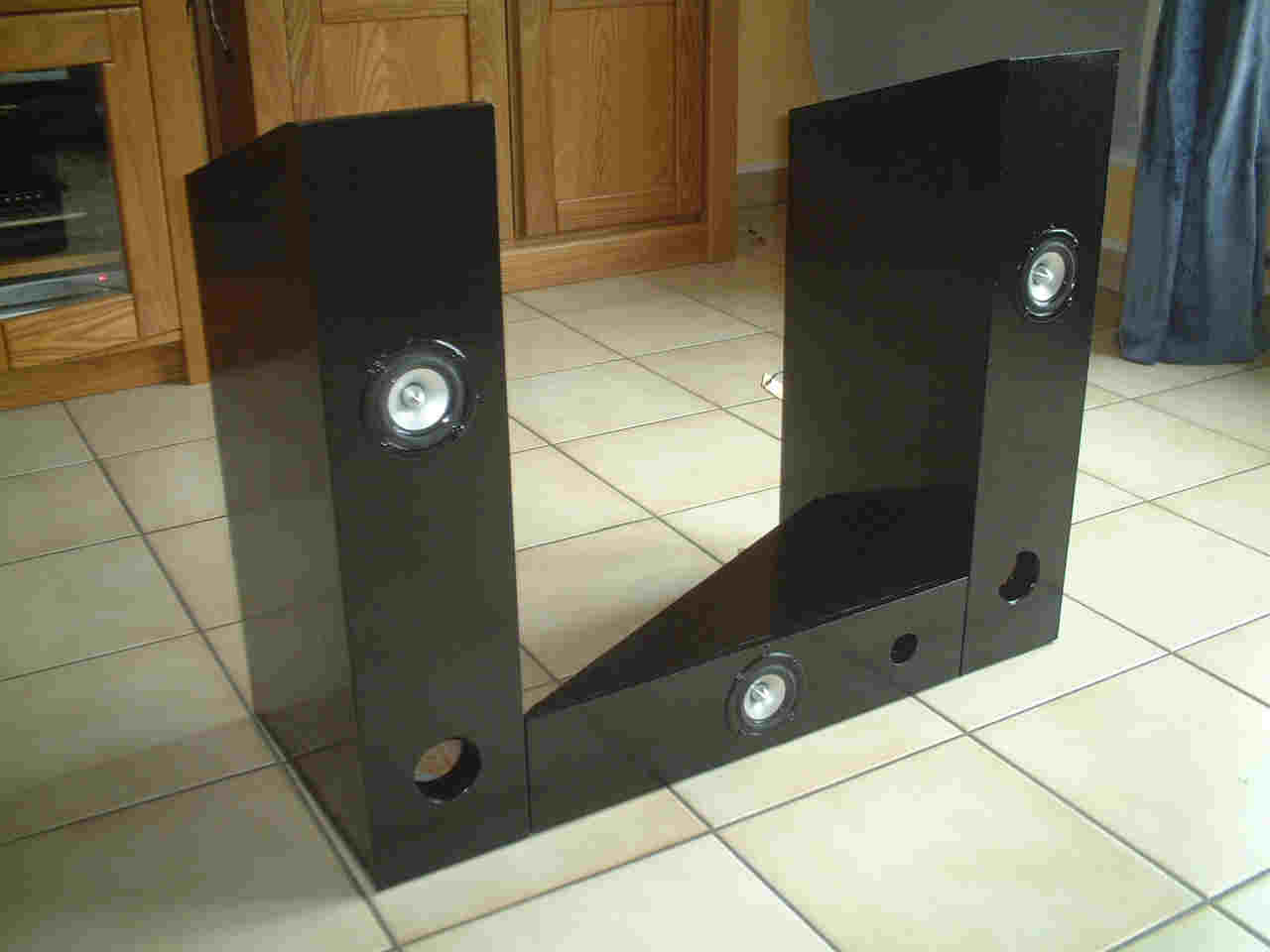

Tangband W3-871S ML TQWT Home Theater System

Built by Yourane Ung

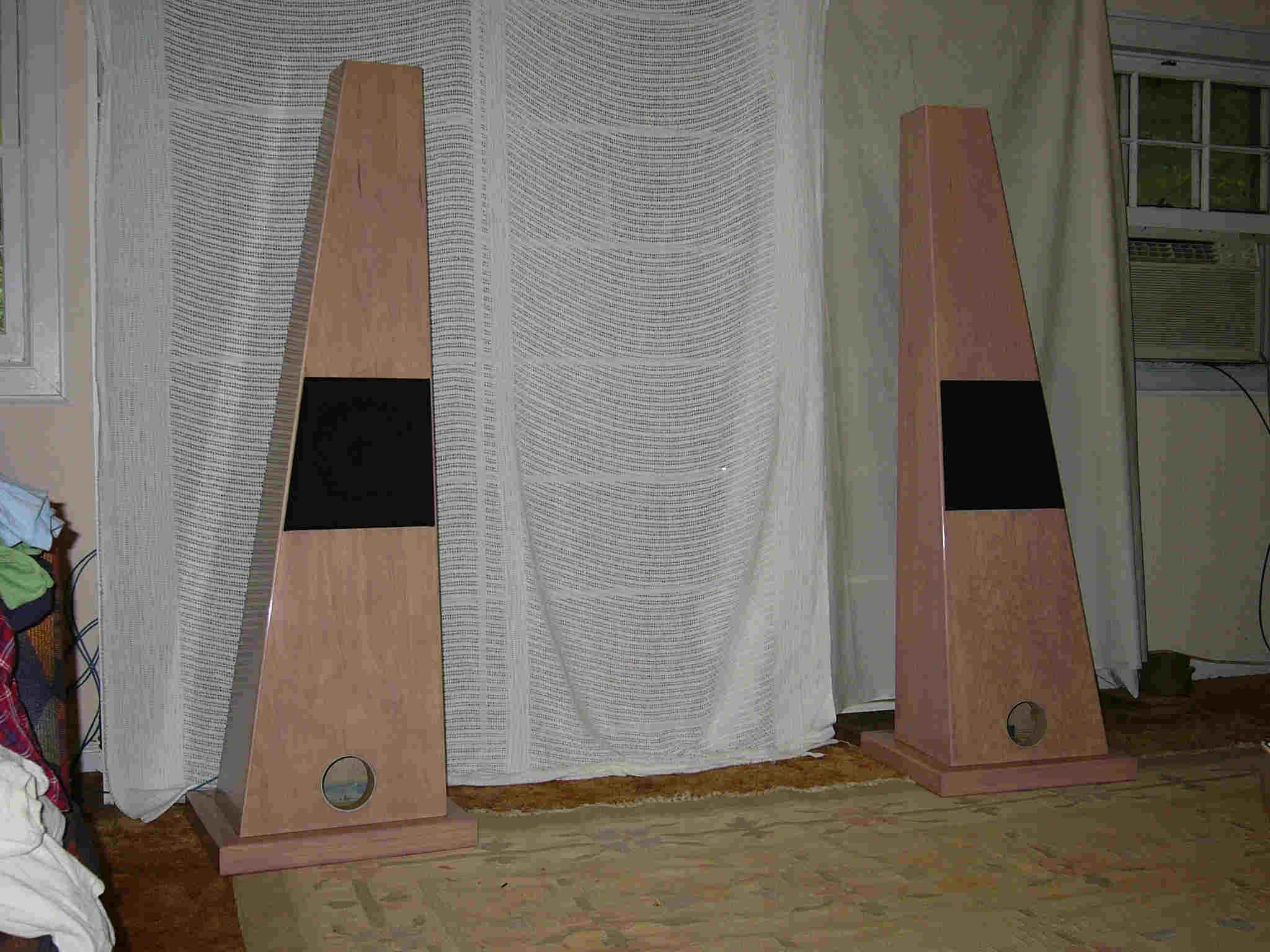

ML TQWT using a Lowther DX4 Full Range Driver

w/ Custom Phase Plugs

Built by Laurence Platt


Folded TQWT using a SEAS 6.5 mid/bass and Vifa Tweeter

Built by Dave Merrill


ML TL using the Fostex FE-207E Full Range Driver

Built by Ryan Bergmann

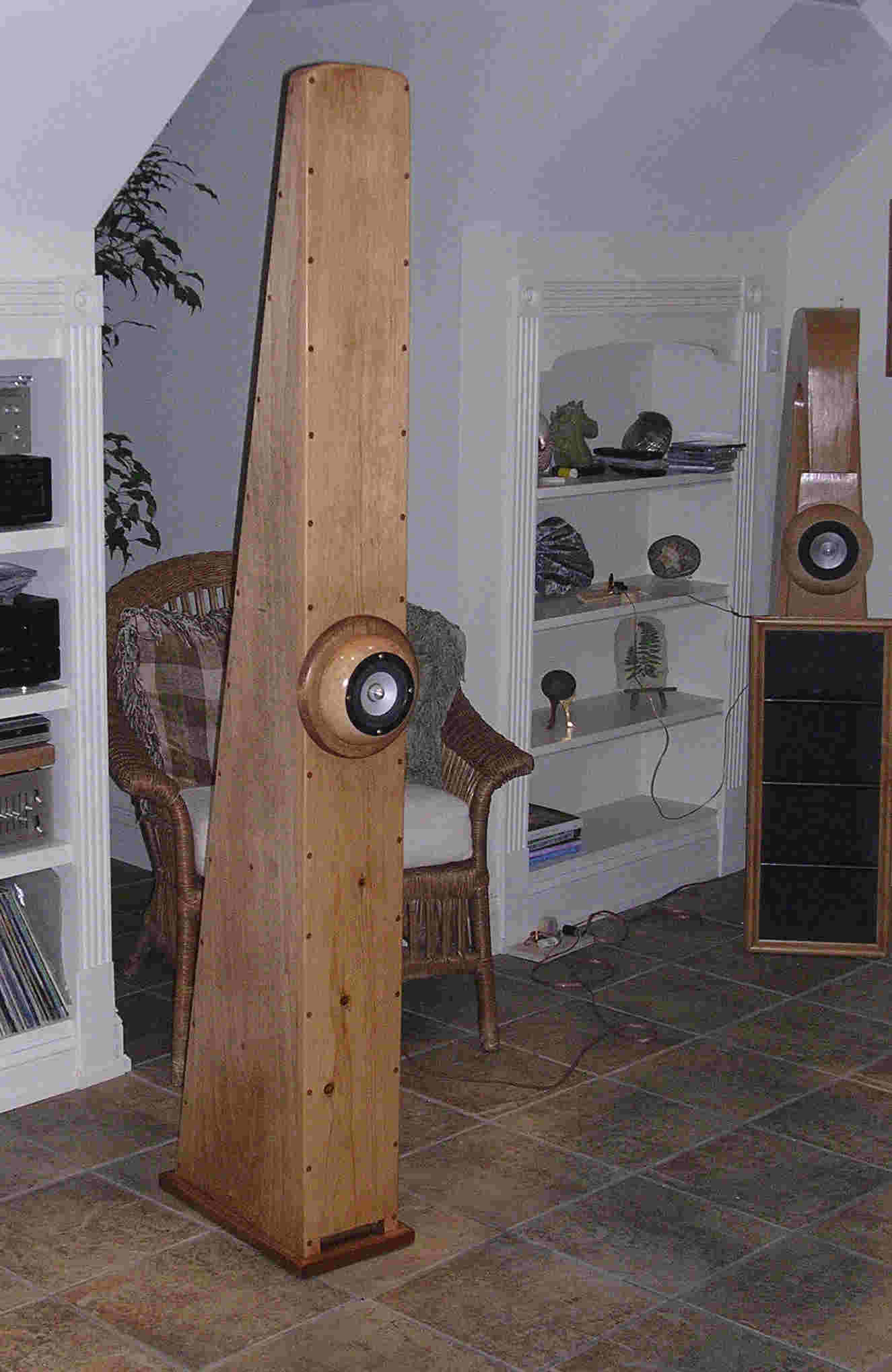

ML TQWT using the Tangband W4-657S Full Range Driver

Built by Paul Norton

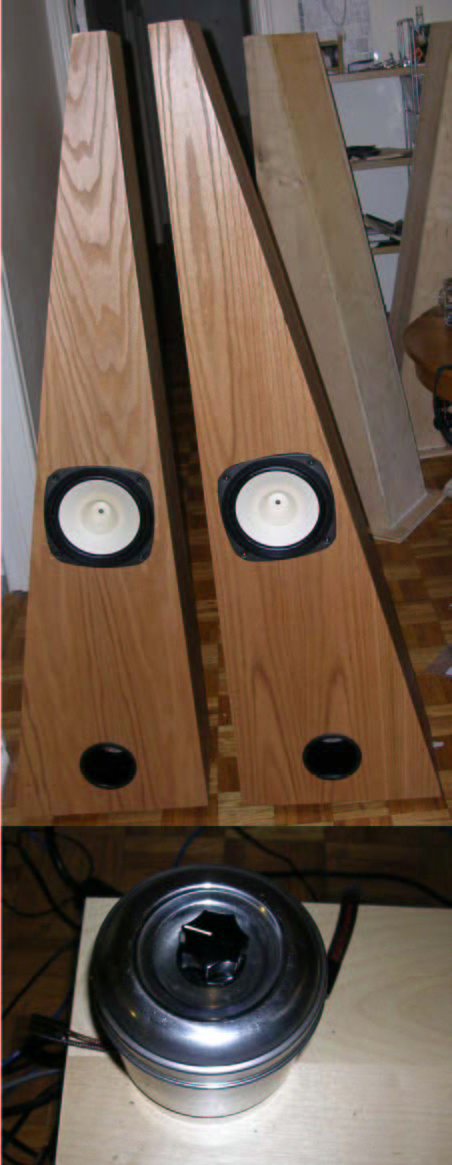

Fostex FE-206E in a ML TQWT with a Variable BSC Circuit

Built by Jeremy MacLennan

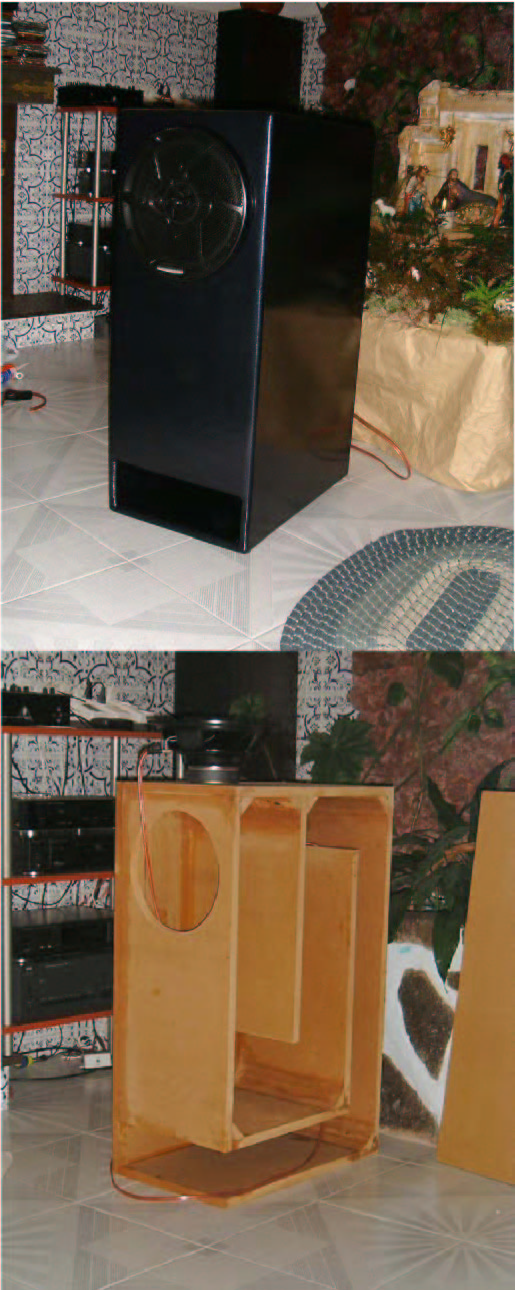

Pioneer TS-A2510 in a Folded Transmission Line

Built by Pedro Leite

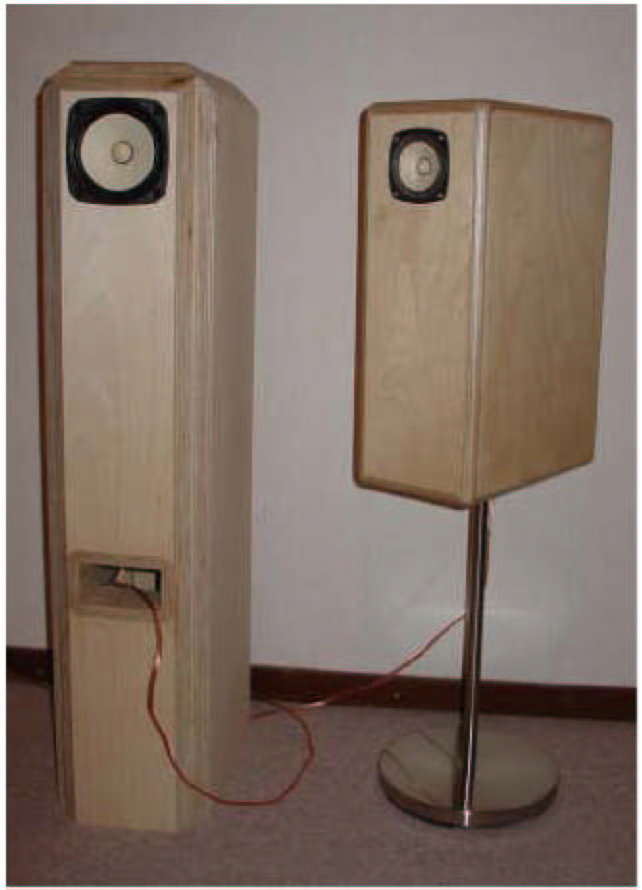

Fostex FE-127E in a Bass Reflex Enclosure and Fostex FE-83E in a Folded TL

Built by Jacques Cande

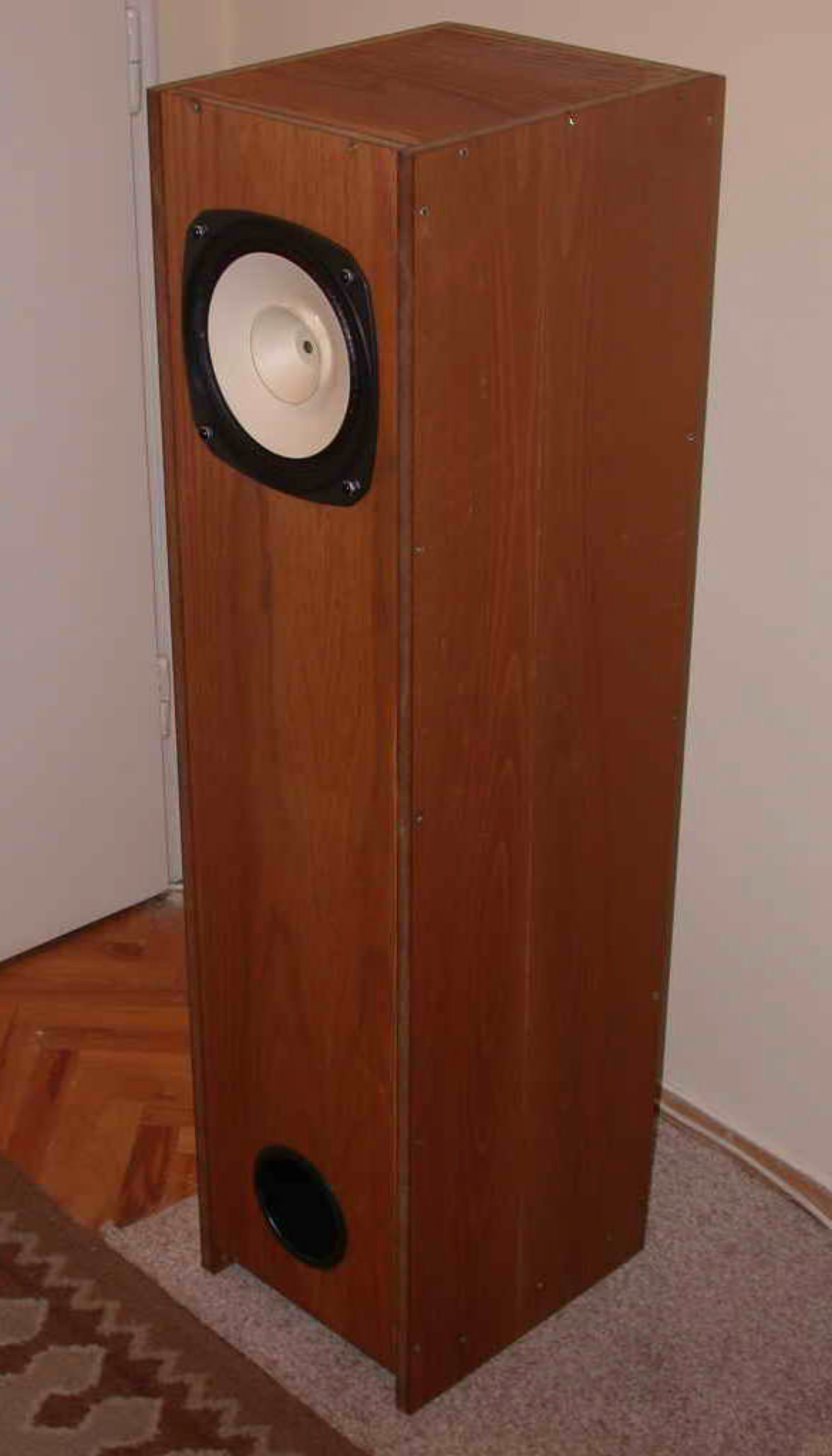

ML TL using the Fostex FE-206E Full Range Driver

Built by Artan Ymeri and Viktor Halili


Jordan JX92S in a Transmission Line Enclosure

Built by Steve Carlton

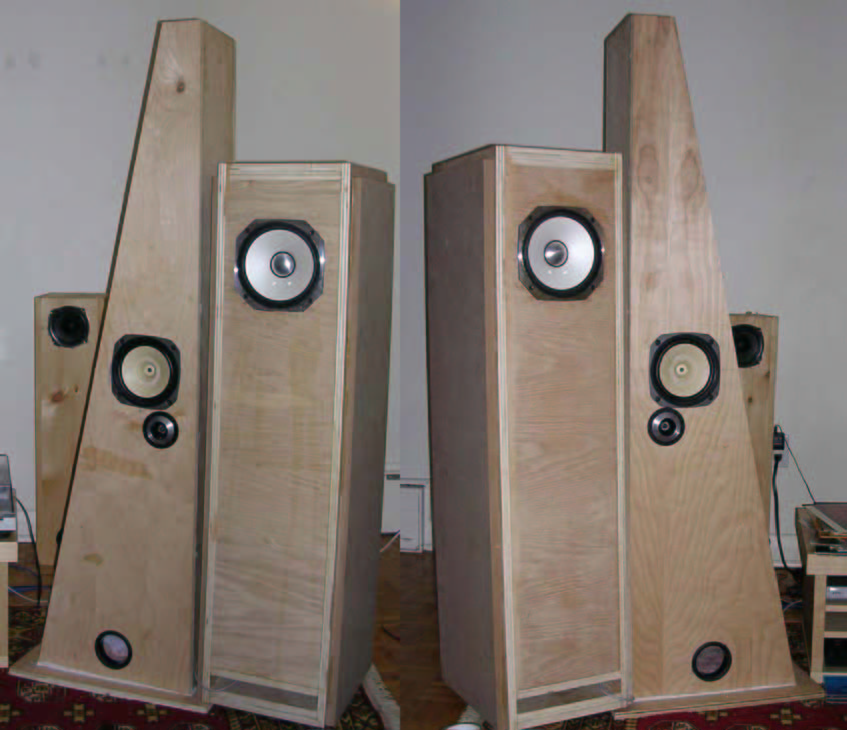

Fostex FX200 in a ML TL, Fostex FE-167E in a ML TQWT, and Radio Shack RS 1354 in a Folded ML TQWT

Built by Jeremy MacLennan

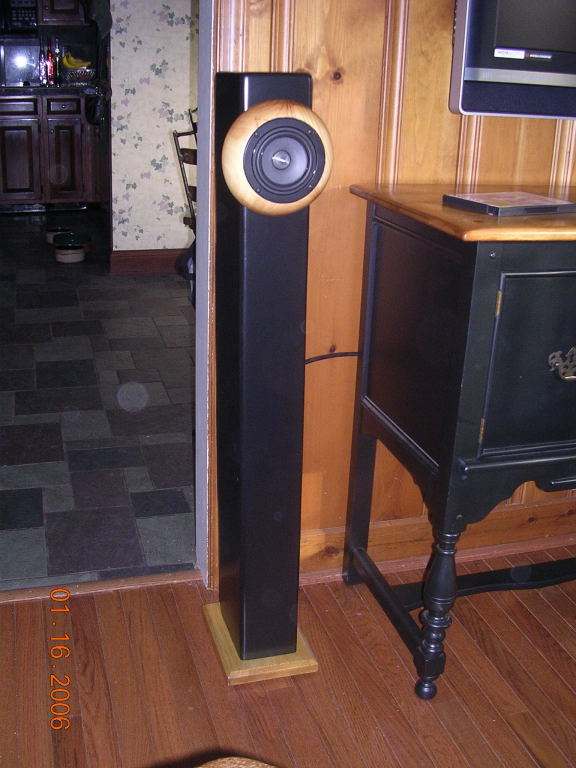

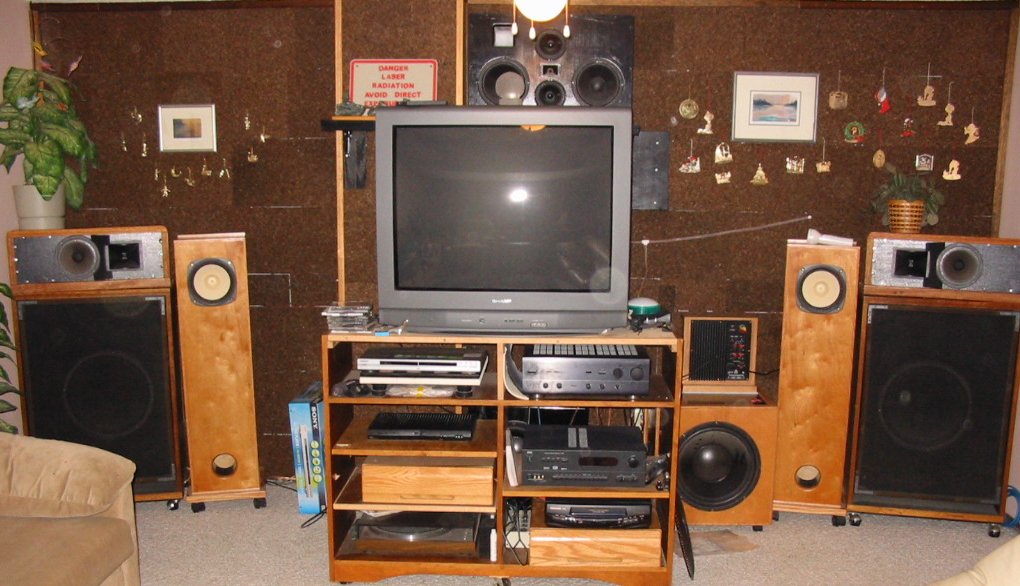

Home Theater Set-up Featuring a ML TL using the Fostex FE-206E Full Range Driver

Built by Ron Parsons


Folded ML TQWT using the Dai-ichi 8" Full Range Driver made in the Philippines

Built by Lerio Agner, Jr


ML TL using the Fostex FE-206E Full Range Driver

Built by Bob Schense


ML TL using the Jordan JX 92S Full Range Driver

Built by Stefano Billiani

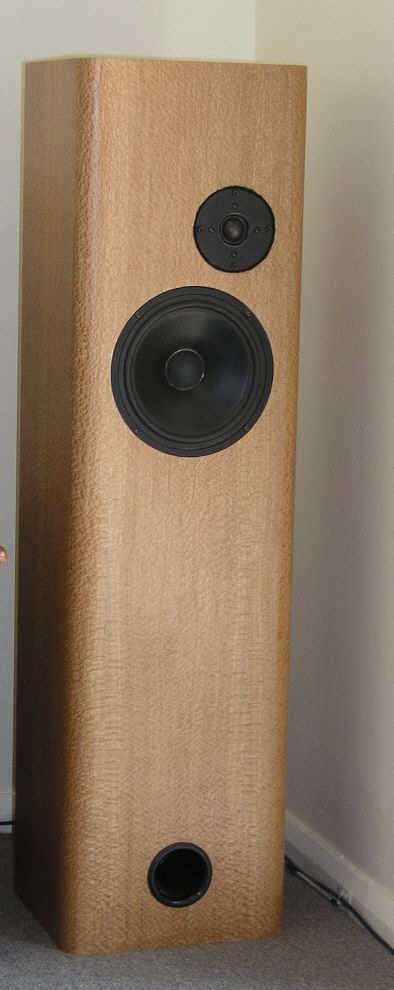

ML TL using the Scan Speak 21W8554-00 Woofer and the Scan Speak 2905 9500 Tweeter

Built by John Hageman

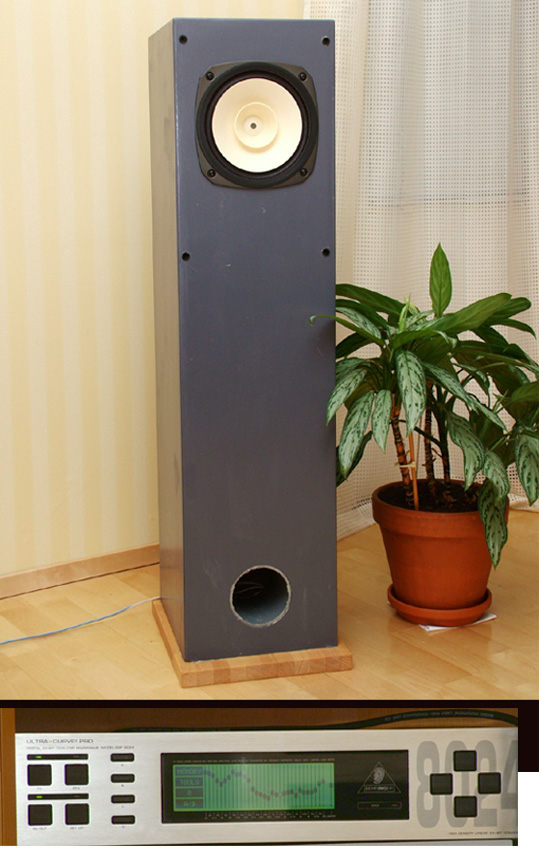

Fostex FE-206E in a ML TL using a Behringer Ultra-Curve Pro DSP 8024

Built by Markku Myllyla

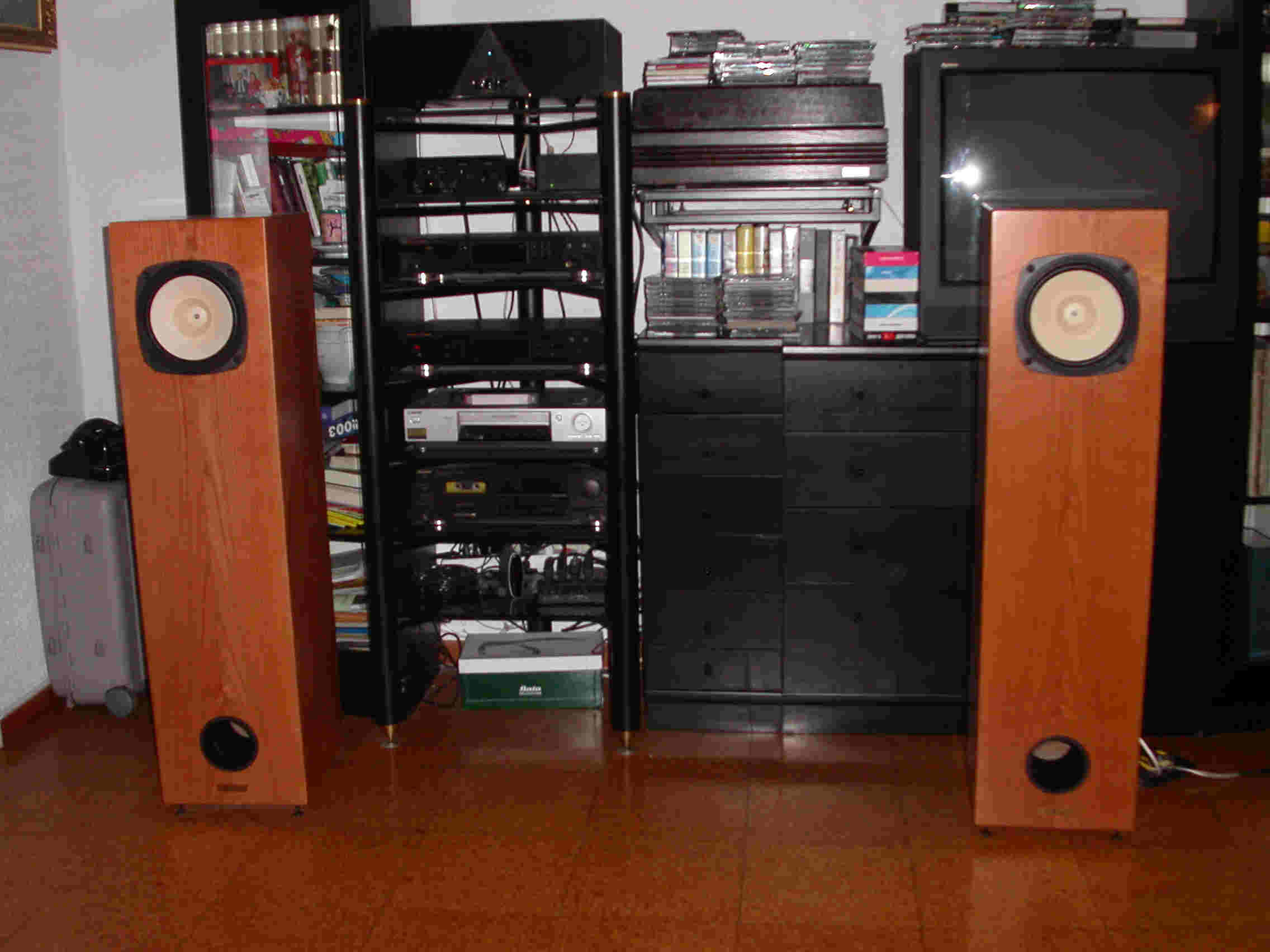

Fostex FE-206E in a ML TL

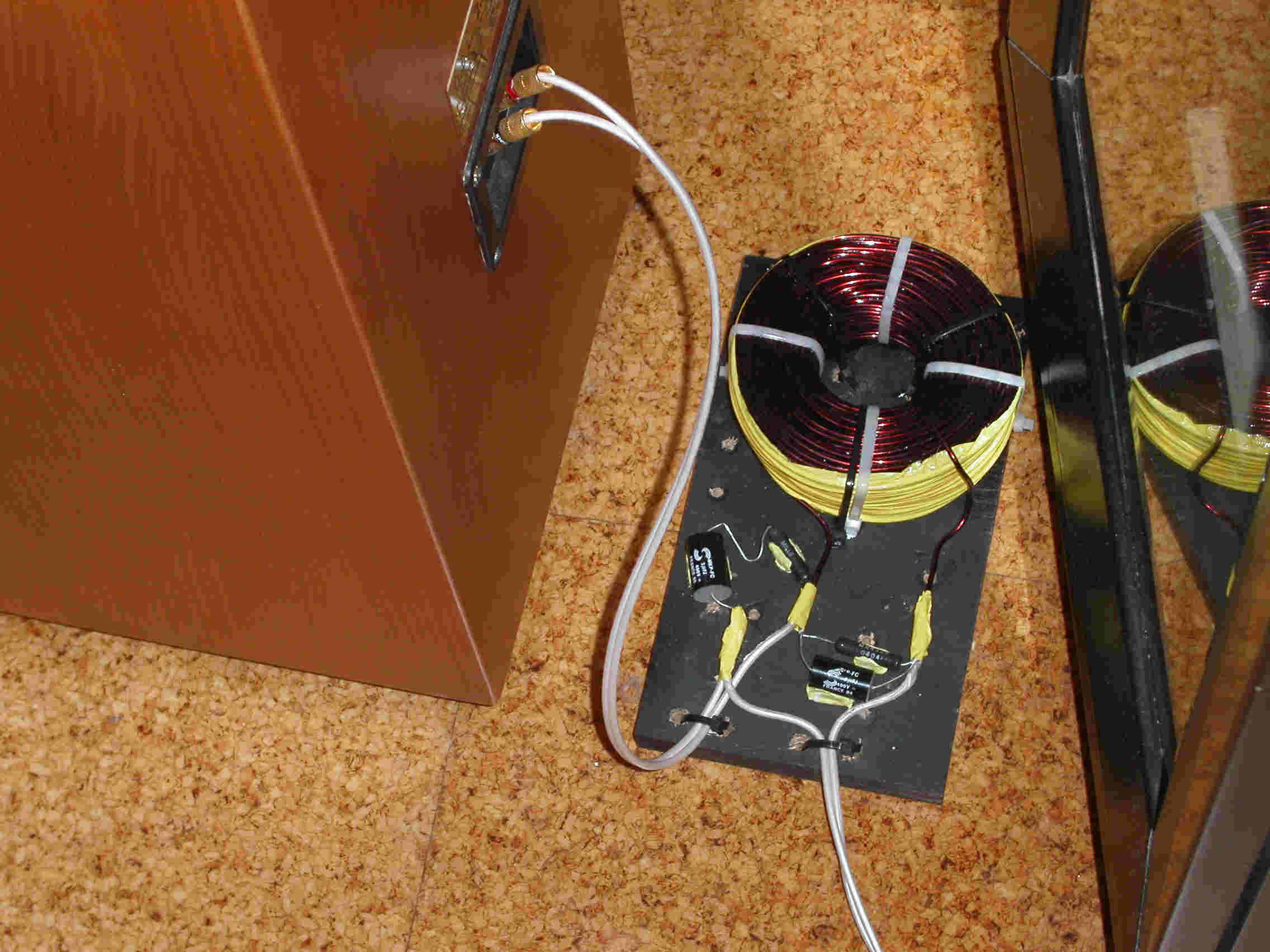

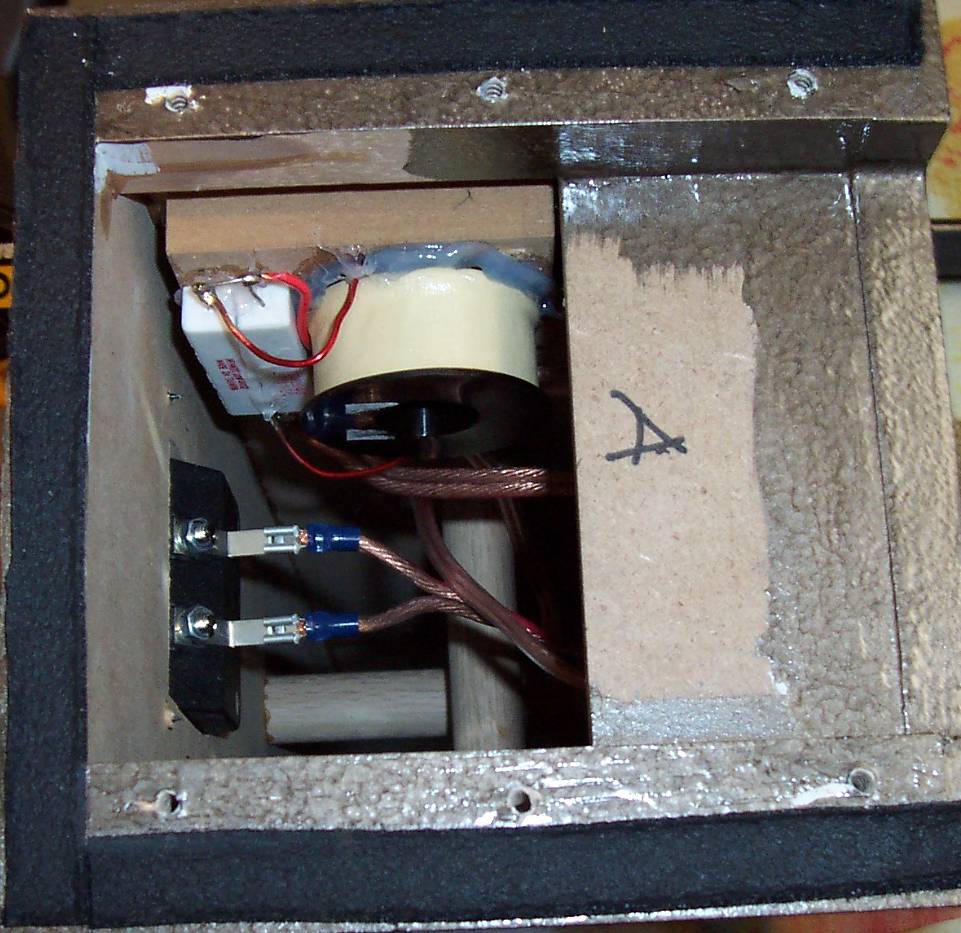

BSC Circuit Using Hand Wound 6 lb Air Core Inductor

Built by Leon Licer

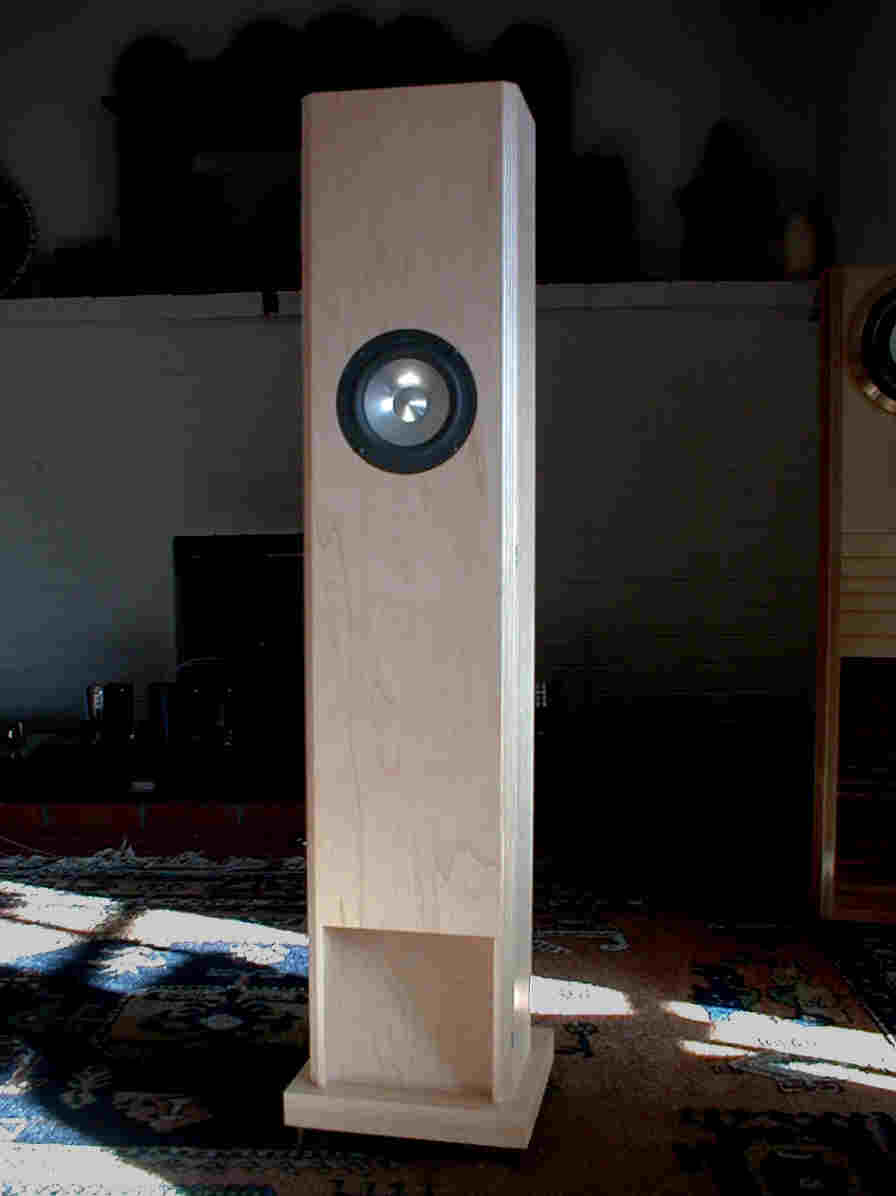

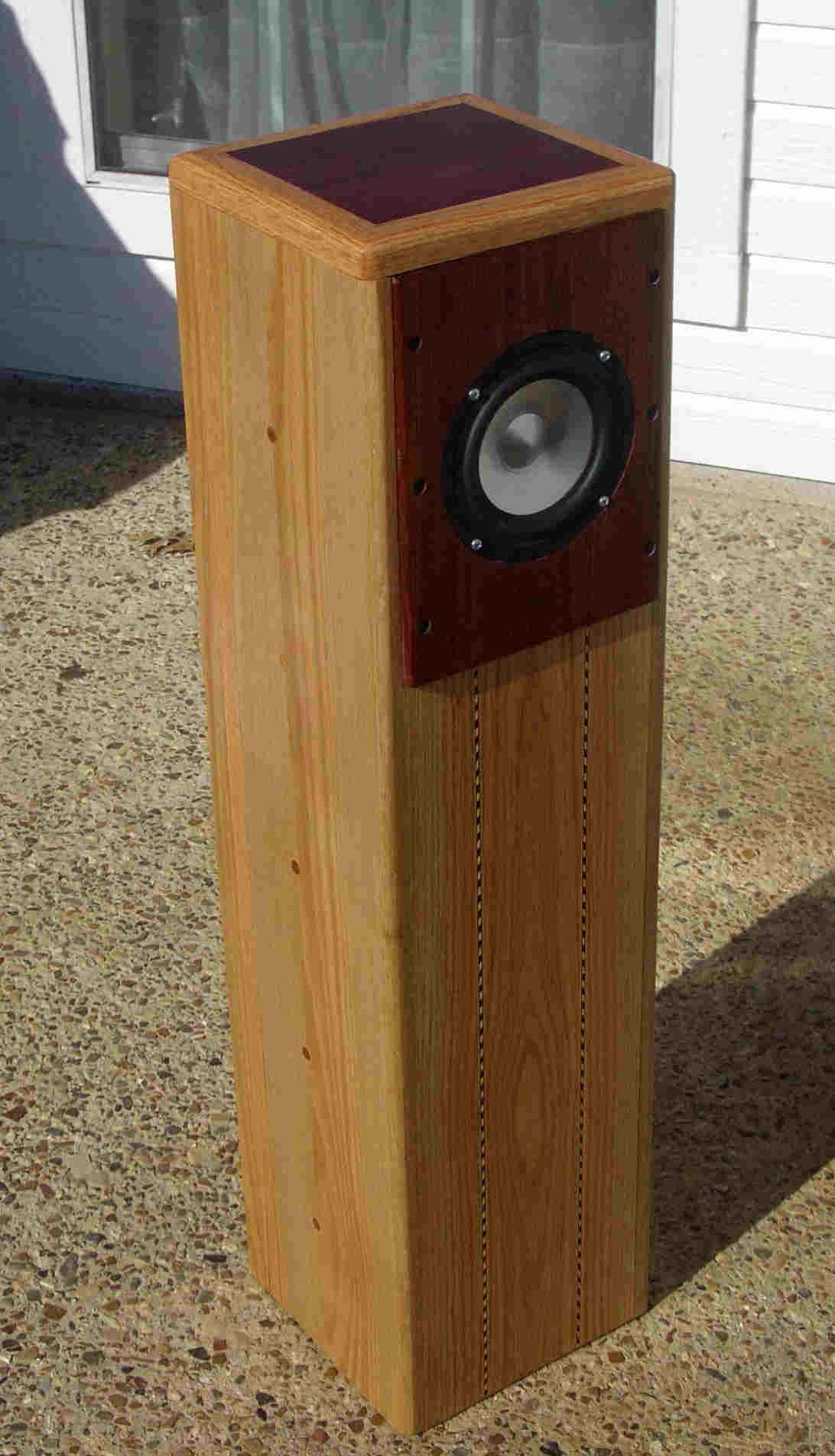

Jordan JX92S in a ML TL

Built by Jay Fisher

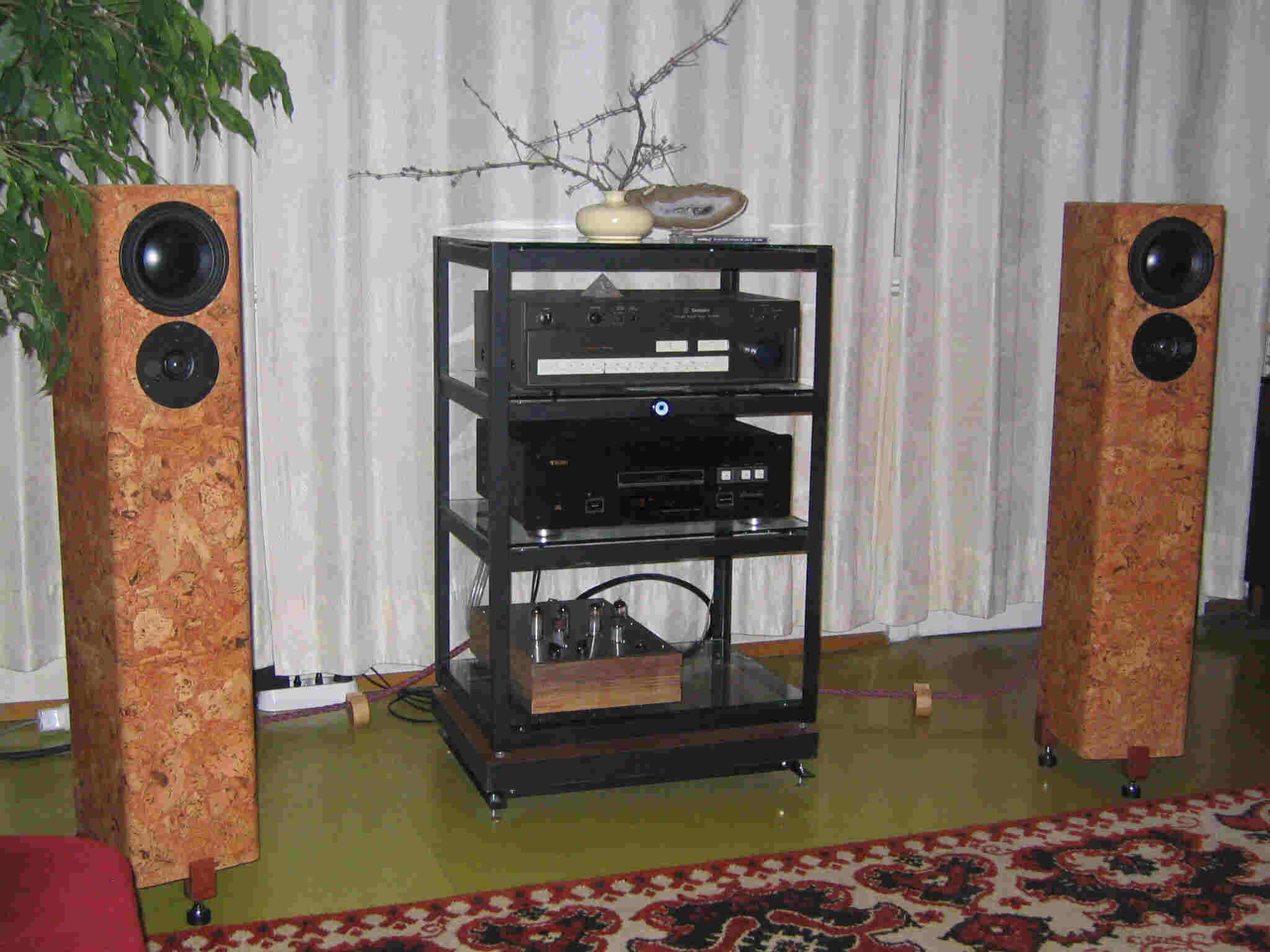

Morel MW-144 and MDT-33 in a TL

Built by Tsvetan Taslakov

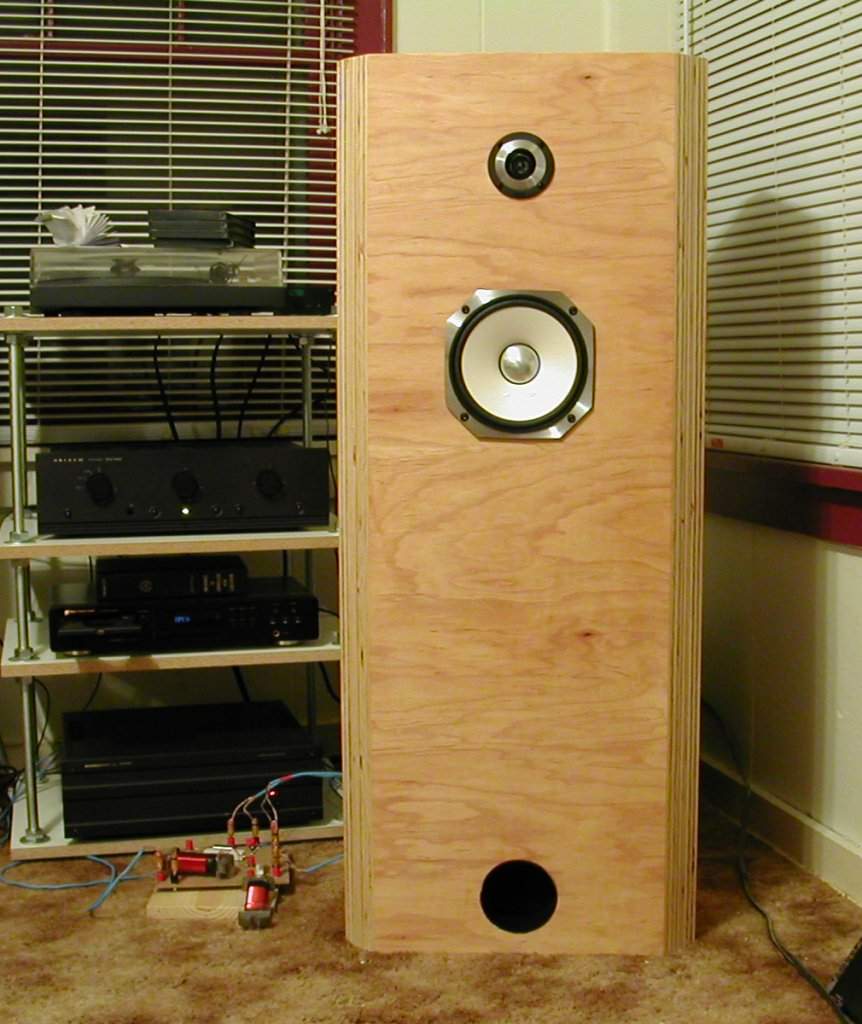

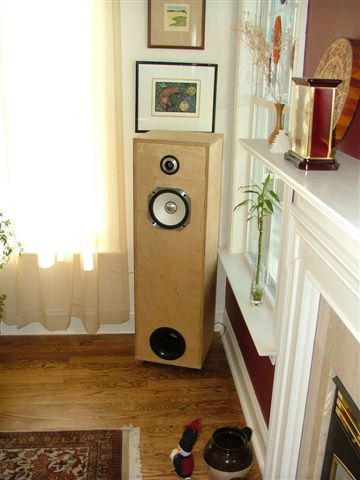

Fostex FX200 and FT17H Tweeter in a ML TL

Built by Bill LaDieu

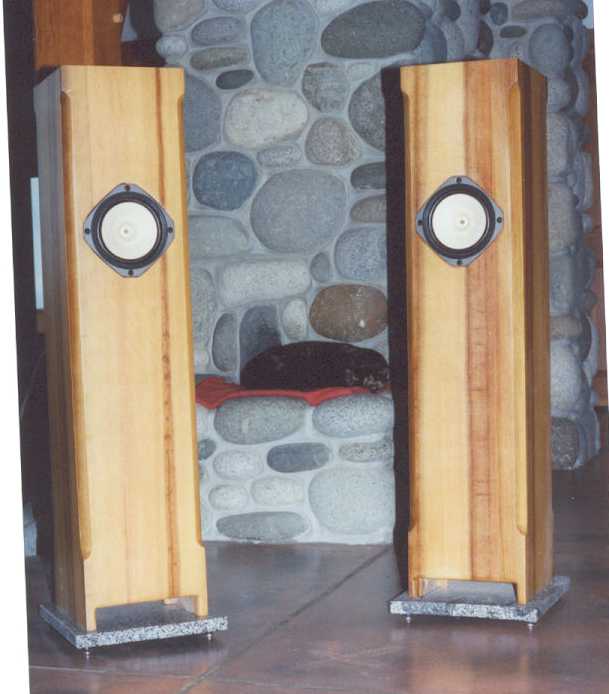

Fostex FE-167E in a ML TL

Built by Scott Dunn


Fostex FE-168EZ in a ML TL

Built by Rolf Paloheimo

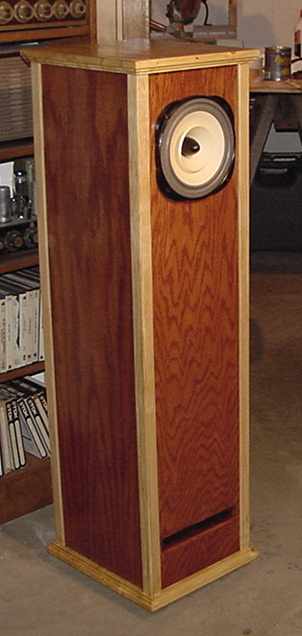

Lowther ML TL Using the PM2A Driver

Read about these in Scott Faller's TNT-Audio Review

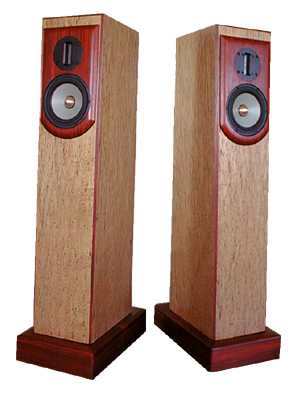

Veracity ML TQWT using the G2 Ribbon Tweeter and SEAS W18EX Woofer

Built by Jim Salk

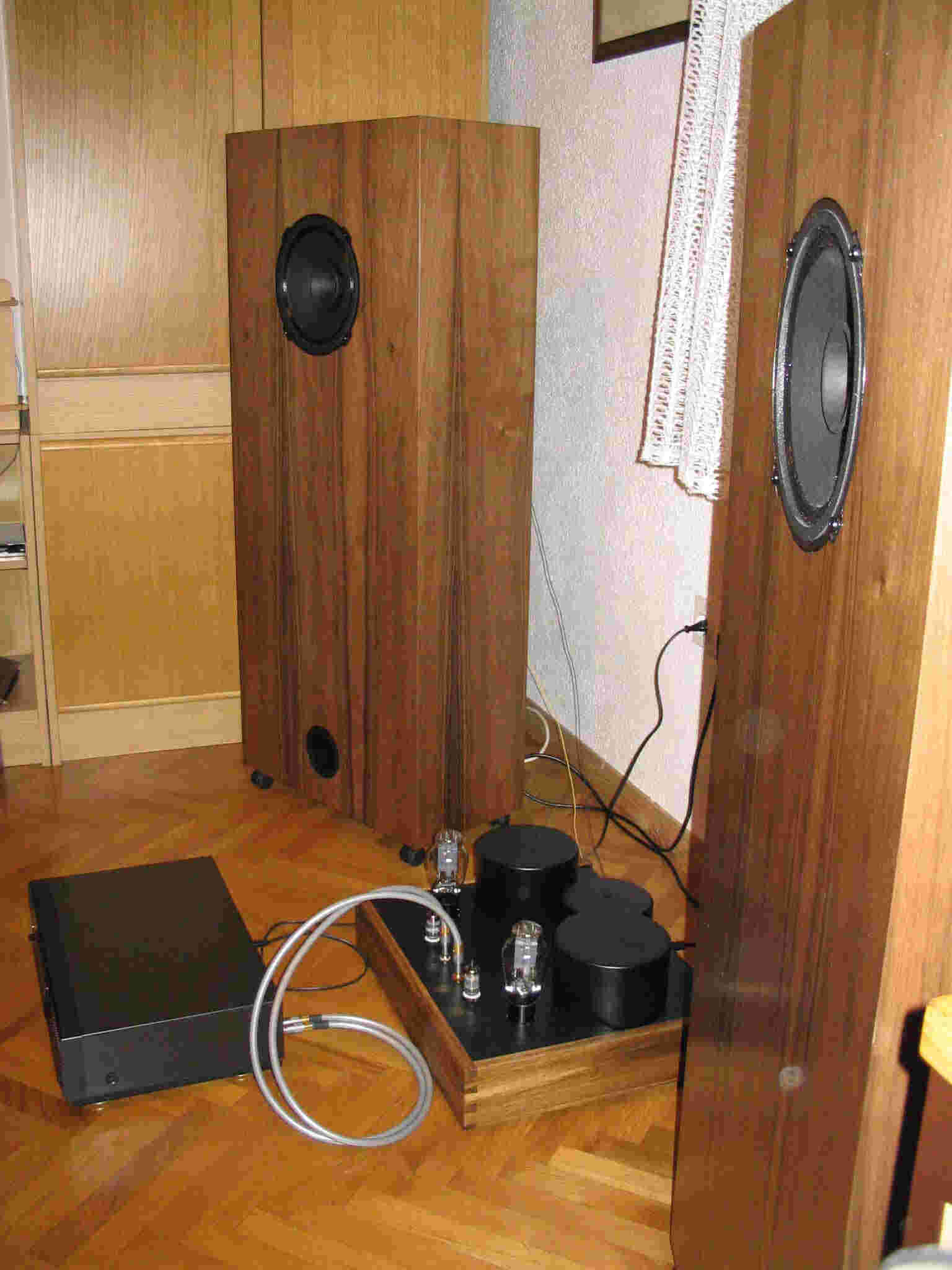

ML TL using the Supravox 215 BiCone Full Range Driver

Built by Jan Babic

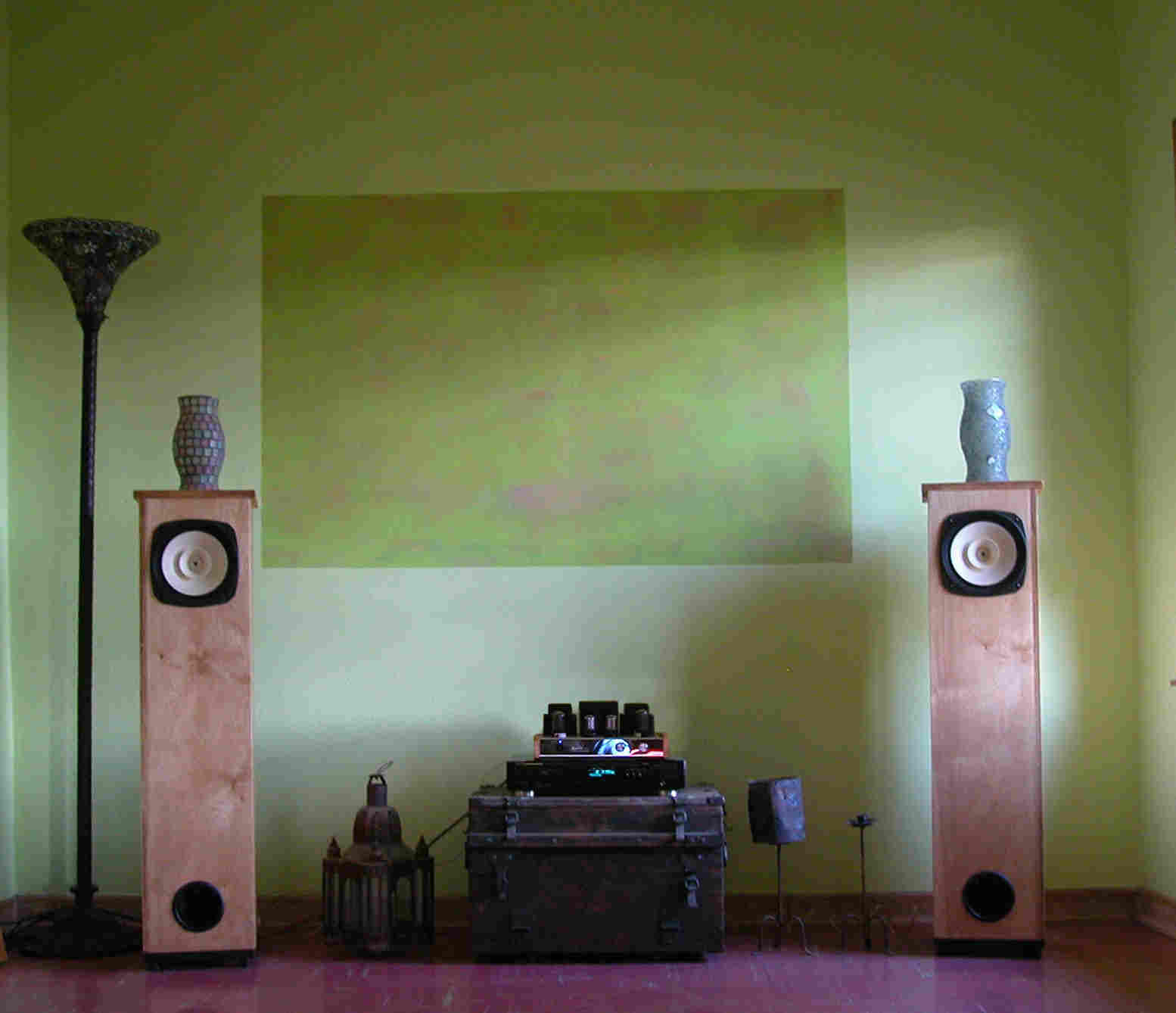

ML TL using the Fostex FE-206E Full Range Driver

Built by Mike Howard

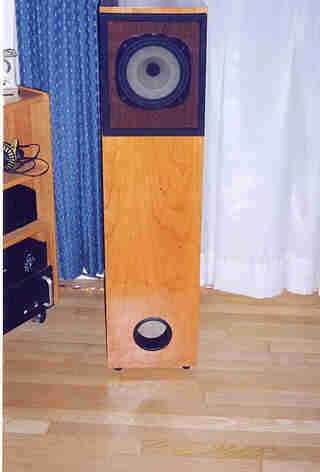

ML TL using the Lowther DX3 Full Range Driver (Recently Upgraded to a DX4)

Built by Verne Mattson

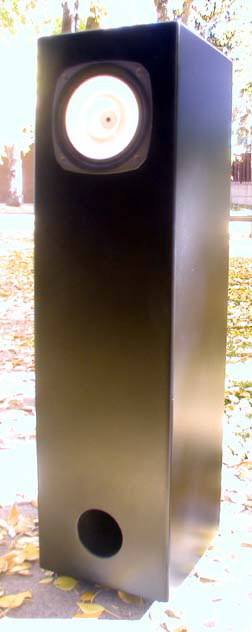

ML TL using Fostex FE-207E Full Range Driver

Built by Moray James


ML TL using the Vifa P21WO-39-08 Woofer and the Scan Speak 2905 9300 Tweeter

Built by John Hageman

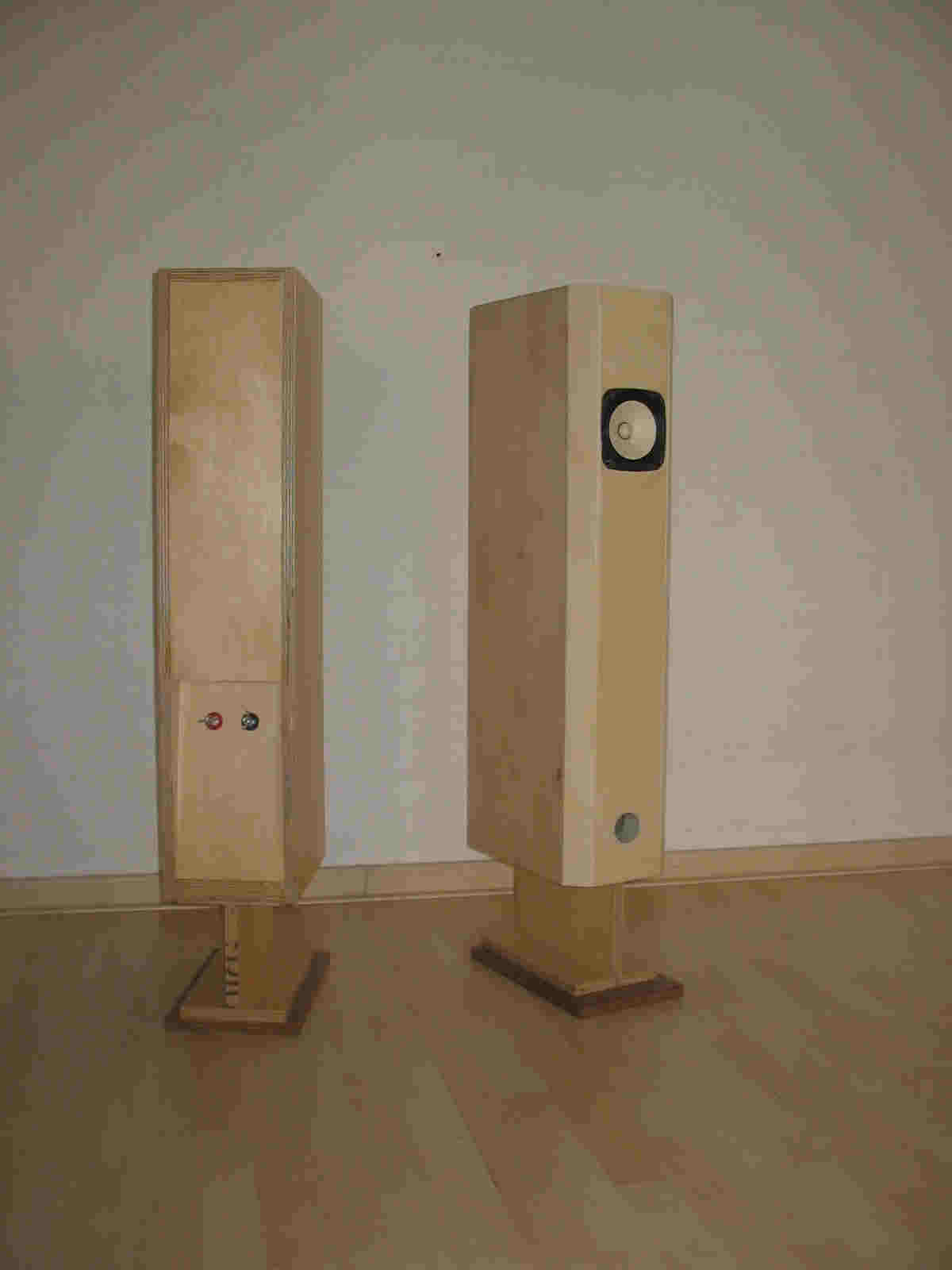

ML TQWT using the Fostex FE-127E Full Range Driver

Built by Henk Koetzier

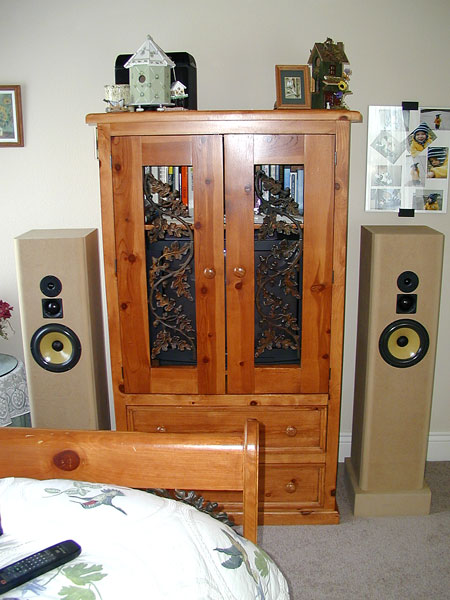

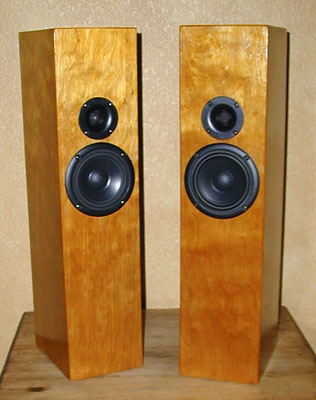

Mini ML TL using Vifa/Audax Drivers

Built by Mark Krawiec

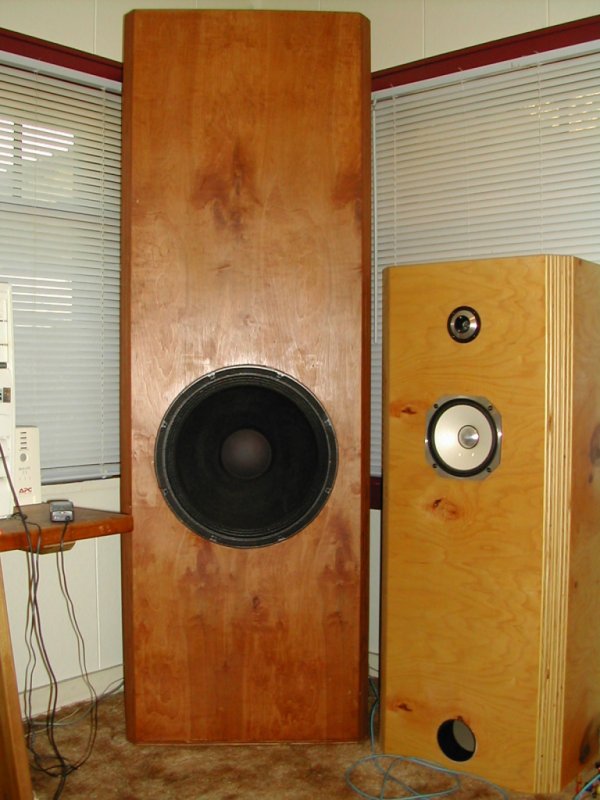

ML TL using the Dayton 18" Woofer

Built by Allan Jones


ML TQWT using the Fostex FE-167E Full Range Driver

Built by Galin Lyubenov

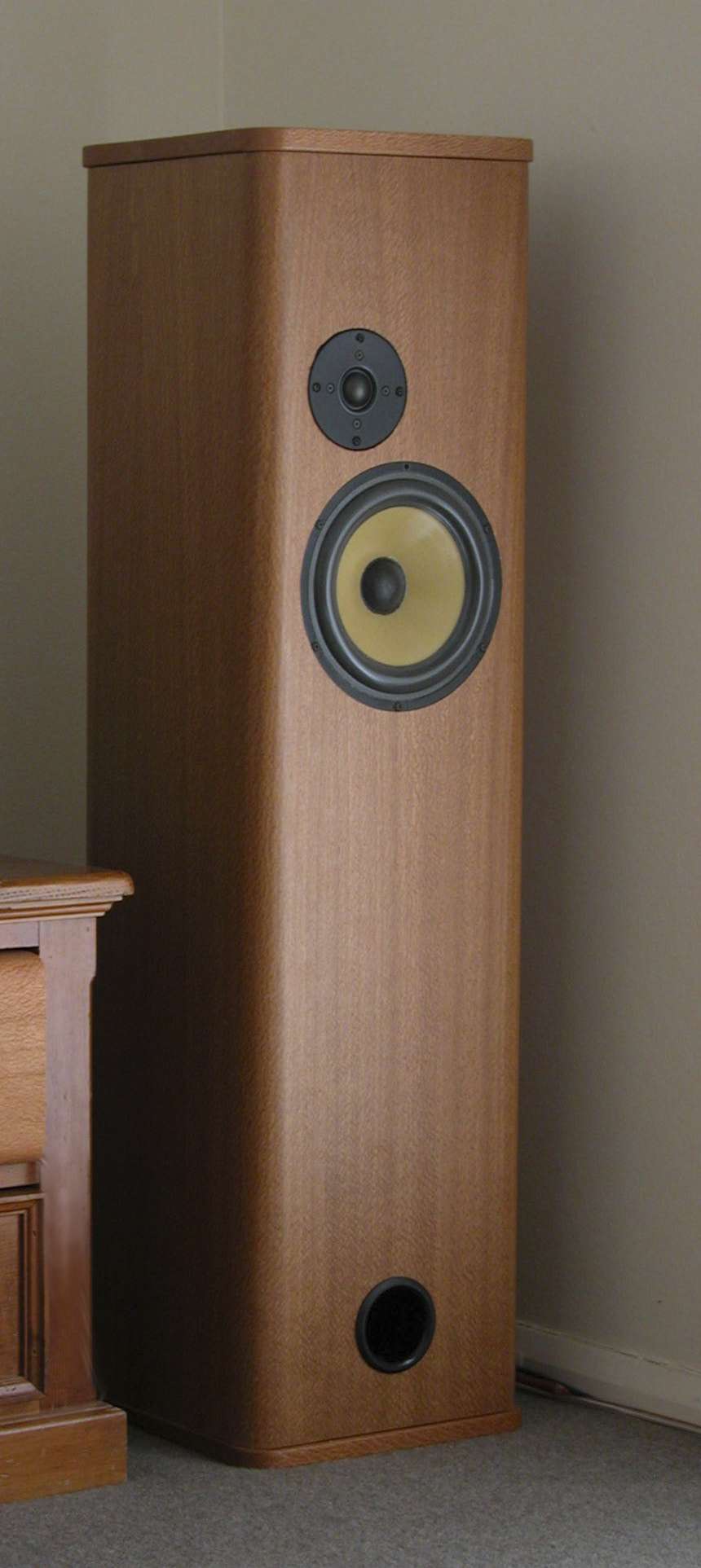

Scan Speak 8554 TL

Built by Mark Krawiec

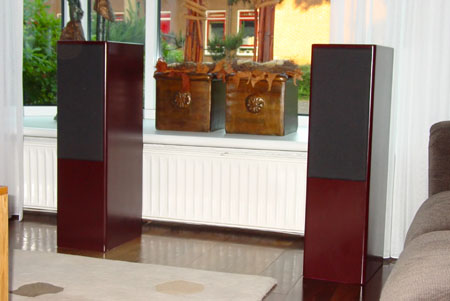

Vifa P17WG Tapered TL

Built by Raymond van Weeghel


ML TL using the Fostex FE-127E Full Range Driver

Built by Rolf Paloheimo


ML TL using the Fostex FX-200 Full Range Driver

Built by Allan Jones

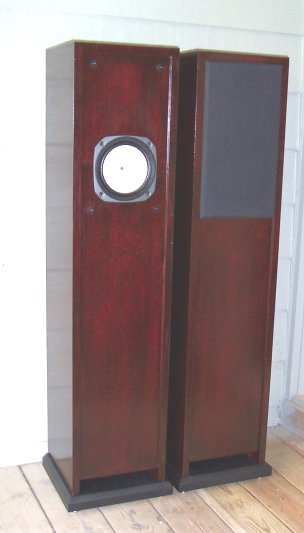

Bob Brines' Fostex FE - 167E ML TL

Built by Bob Brines

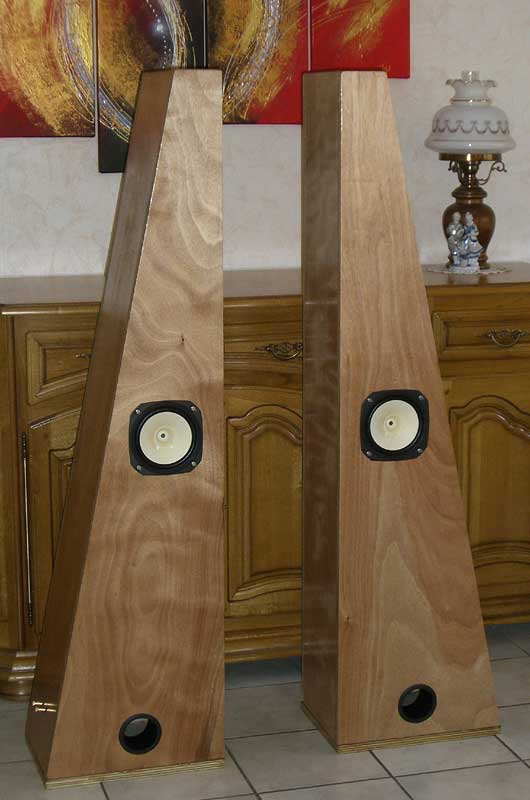

ML TQWT using the Fostex FE-167 Full Range Driver

Built by Alain

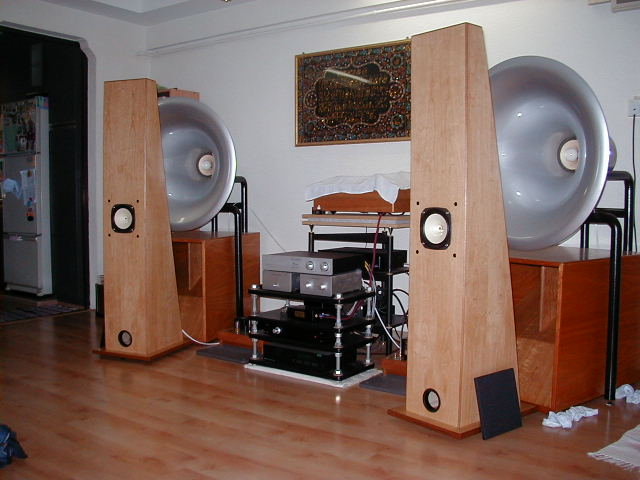

ML TQWT using the Fostex FE-164 Full Range Driver

Built by Johari Yip


ML TQWT using the Fostex FE-164 Full Range Driver

Built by Thad Aerts


ML TQWT using the Lowther EX4 Full Range Driver

Built by Martyn Redwood

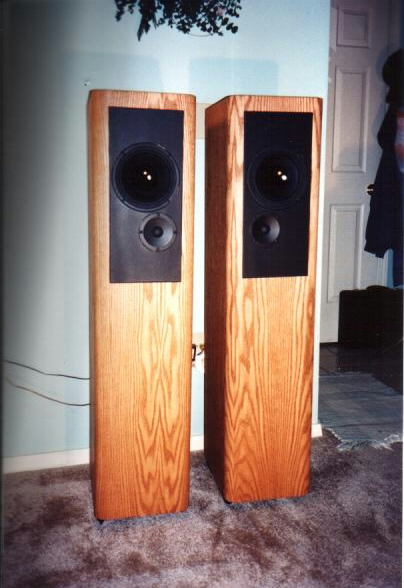

The Peerless Pipes

Built by Bob Brines
